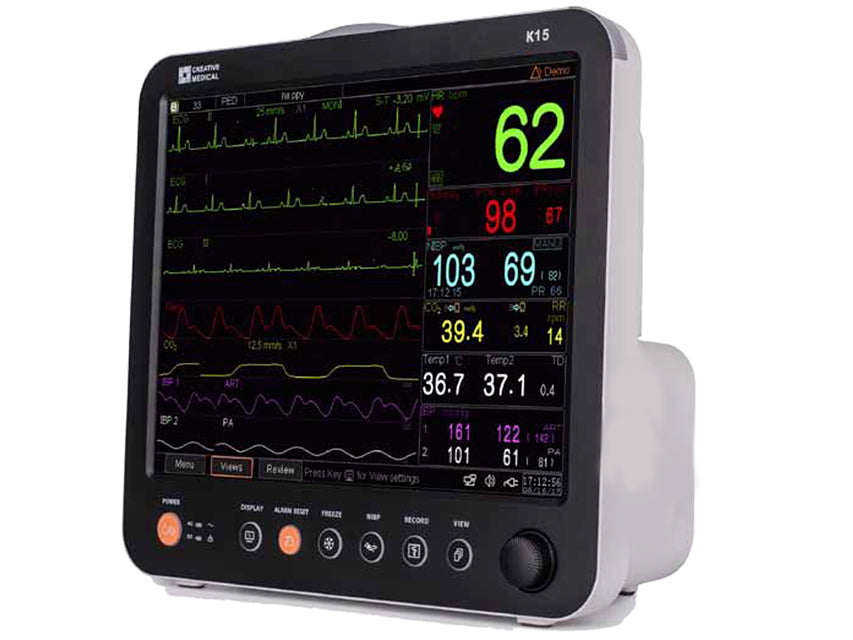

The GIMA K15 2 IBP Touchscreen Multiparameter Monitor is an advanced and versatile device designed to monitor the vital physiological signs of adult, pediatric, and neonatal patients. Equipped with a large 15-inch TFT screen and an intuitive user interface, this device offers a complete solution for managing patients' physiological conditions in real time.

Main features

• Invasive Blood Pressure (IBP): Direct measurement of arterial or venous pressure via catheter and pressure transducer.


• Multifunctional monitoring: ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), temperature (TEMP).


• Ergonomic design: Intuitive and easy-to-use user interface.


• Visual and audible alarms: For physiological and technical abnormalities.


• Compatibility: Suitable for use with original Nellcor sensors.


• Advanced protection: Against defibrillator discharge and interference from electrosurgical units; detection and inhibition of cardiac pacemaker pulses.


• Large memory: Ability to store large amounts of data.


• Connectivity: USB port for data transfer and software updates, Ethernet network.

Technical specifications

ECG

• Input dynamic range: ±(0.5~5 mVp)


• Input differential impedance: =10 MO


• Bandwidth: 0.05~150 Hz (Diagnostic), 0.5~40 Hz (Monitoring), 1~20 Hz (Operation)


• CMRR: =90 dB (Diagnostic), =105 dB (Monitoring & Operation)


• Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto


• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s


• HR measurement range: 15~350 bpm ±1% or ±2 bpm, whichever is greater


• Pacemaker pulse detection and inhibition function

RESP

• Measurement range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP

• Measurement range: 21.0~50.0 °C ±0.2 °C between 25~45 °C

NIBP

• Technique: Oscillometric method


• Typical measurement time: <30 seconds (adult cuff)


• NIBP SYS measurement range: 40~275 mmHg (Adult), 40~200 mmHg (Pediatric), 40~135 mmHg (Neonatal)


• NIBP DIA measurement range: 10~210 mmHg (Adult), 10~150 mmHg (Pediatric), 10~95 mmHg (Neonatal)


• NIBP MAP measurement range: 20~230 mmHg (Adult), 20~165 mmHg (Pediatric), 20~110 mmHg (Neonatal)


• NIBP measurement accuracy: Mean difference: ±5 mmHg, Standard deviation: 8 mmHg


• NIBP measurement modes: Manual, Auto, STAT, Multi-cycle


• Auto-measurement intervals: 1-480 min

SpO2

• Technique: Dual-wavelength optical method


• Measurement range: 0%~100% ±2% for SpO2 range 70~100%


• PR measurement range: 30~250 bpm ±2 bpm or ±2%, whichever is greater


• Low perfusion performance: Up to 0.3%

CO2

• Technique: Infrared optical method


• Sampling mode: Sidestream or Mainstream


• Measurement range: 0~150 mmHg


• Measurement accuracy: 0~40 mmHg ±2 mmHg, 41~70 mmHg ±5% of reading, 71~100 mmHg ±8% of reading, 101~150 mmHg ±10% of reading


• Flow rate: 50 ml/min ±10 ml/min (Sidestream)

IBP

• Technique: Strain gauge transducer


• Input sensitivity: 5 µV/V/mmHg


• Measurement range: -50~300 mmHg ±2% or ±4 mmHg, whichever is greater


• Measurement positions: ART, RAP, PA, LAP, CVP, ICP, AUXP1, AUXP2


• Calibration: zero calibration

Other features

• Power supply: AC 100-240 V, 50/60 Hz, 60 VA


• Built-in lithium battery: 11.1V/4400 mAh


• Screen: 15-inch TFT screen


• Alarm method: 3-level audible-visual alarm


• Network: Ethernet


• Safety standard: IEC 60601-1

Included accessories

• Adult SpO2 probe


• Adult NIBP cuff


• SpO2 extension cable


• ECG cable


• Skin temperature probe


• Power cord


• Rechargeable lithium battery


• Dust cover


• Disposable electrode


• Manual: GB, FR, IT, ES, PL, RU


• 2 IBP module, cable, sensor
