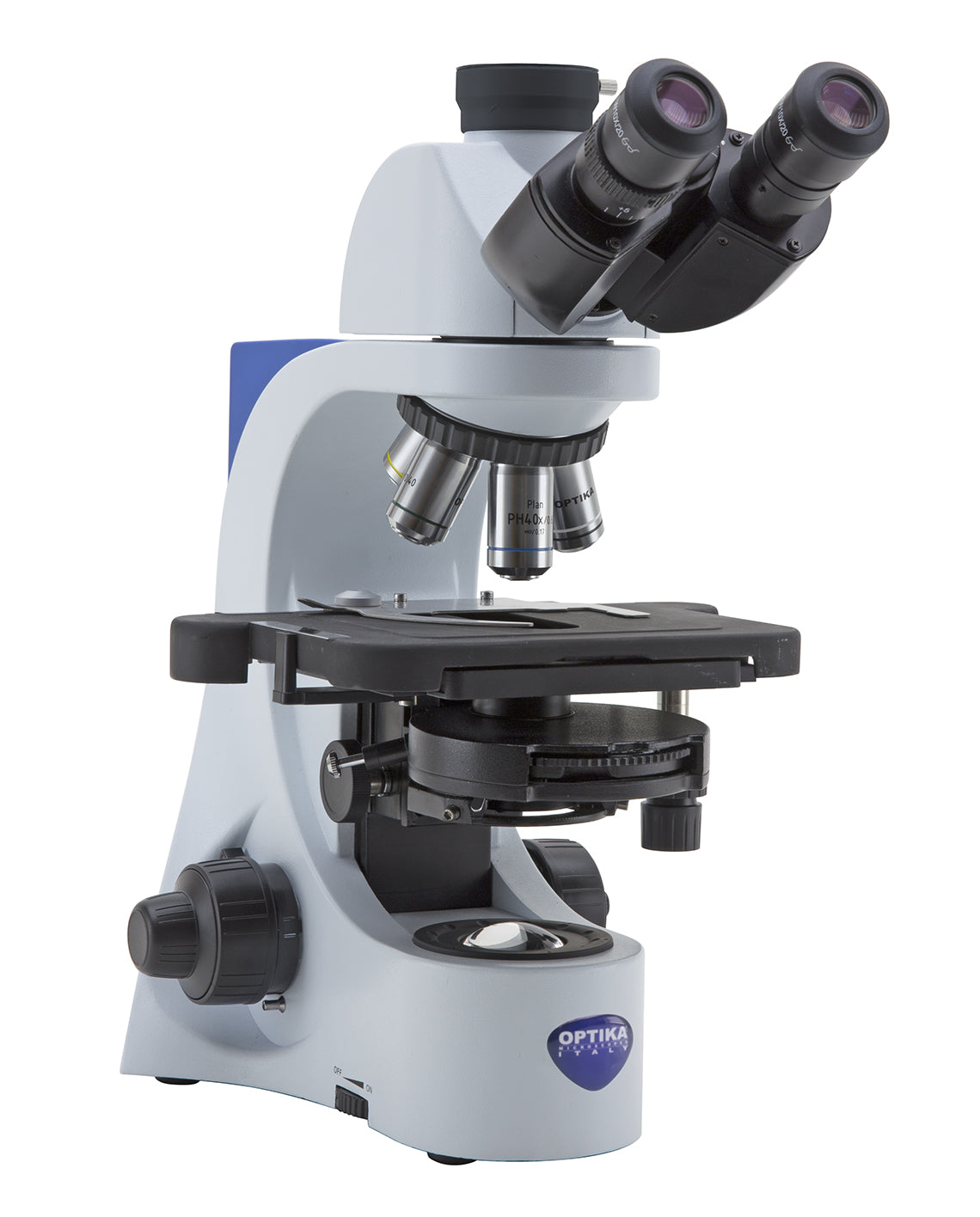

Trinocular Phase Contrast Microscope, IOS, Multi-Plug - OPTIKA


Discover the Trinocular Phase Contrast Microscope by OPTIKA, a precision instrument ideal for teachers, experts, and routine laboratories. This microscope offers a combination of quality, versatility, and affordability, making it the perfect choice for a wide range of scientific applications.

Main Features

The microscope is equipped with a series of advanced features that improve usability and performance:

• Observation modes: Bright field, phase contrast, and dark field (dry).


• Trinocular head: Inclined at 30°, rotatable 360°, with 50/50 light split.


• Interpupillary distance: Adjustable between 48 and 75 mm for optimal comfort.


• Diopter adjustment: Available on the left eyepiece tube.


• Eyepieces: WF10x/20 mm, high-point and secured with a screw for greater stability.


• Revolver: Five-position revolving nosepiece with ball-bearing rotation for smooth objective changes.

High-Quality Objectives

The microscope is equipped with high-quality IOS W-PLAN PH objectives, all treated with antifungal coating:

• IOS W-PLAN PH 10x/0.25


• IOS W-PLAN PH 20x/0.40


• IOS W-PLAN PH 40x/0.65


• IOS W-PLAN PH 100x/1.25 (Oil)

Specimen Stage

The rackless double-layer mechanical stage offers a large working surface of 233×147 mm with an XY travel range of 78×54 mm, ensuring precision and ease of movement during specimen observation.

Precise Focusing

The coaxial coarse (with adjustable tension) and fine focusing mechanism is equipped with a stop to prevent contact between the objective and the specimen, ensuring sharp and detailed images at all times.

Advanced Condenser

The phase condenser (10x/20x, 40x, 100x) supports both dark field (dry) and bright field, offering greater versatility in observation techniques.

Efficient Illumination

Fixed Koehler-type illumination with X-LED 3 and 3.6 W white LED (6,300K) ensures uniform and adjustable lighting, improving observation quality. The external multi-socket power supply 100-240Vac/6Vdc ensures stable and continuous operation.

Advantages of the OPTIKA Microscope

This microscope represents the best value-for-money solution, offering excellent performance at an affordable cost. It is particularly suitable for:

• Teachers who need a reliable instrument for scientific education.


• Experts who require precision and versatility in their observations.


• Routine laboratories that need a robust and easy-to-use microscope.

Choose OPTIKA's Trinocular Phase Contrast Microscope, IOS, Multi-Plug for your scientific needs and experience the quality and reliability that only a leading brand can offer.
