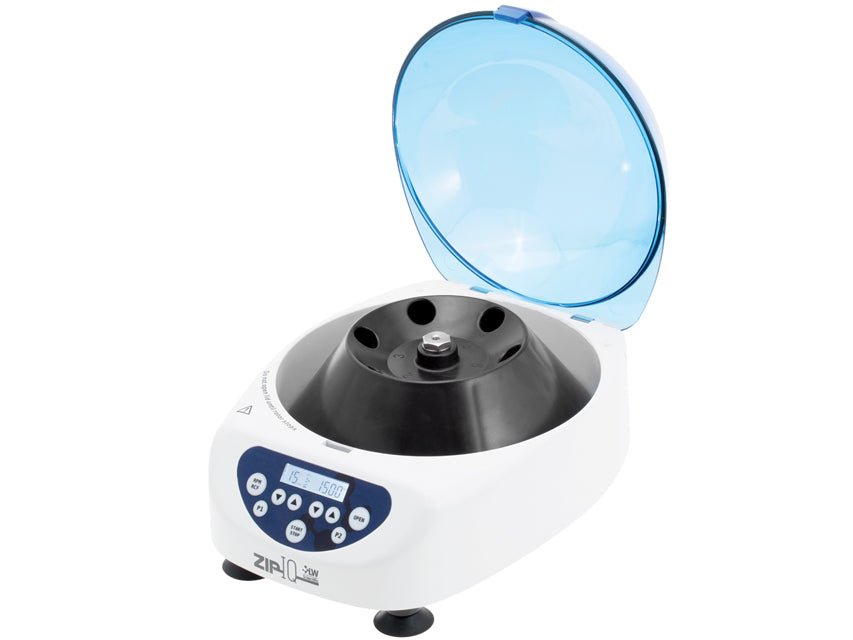

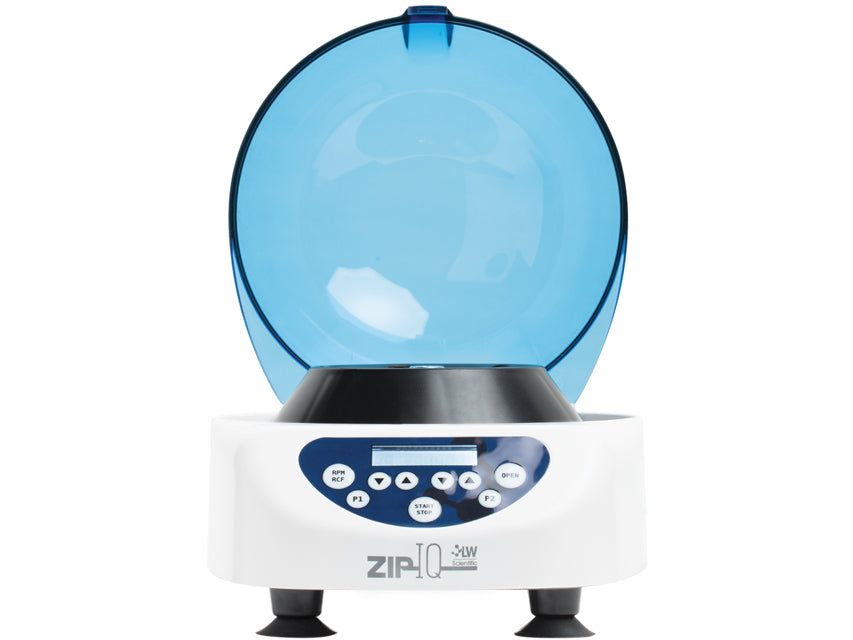

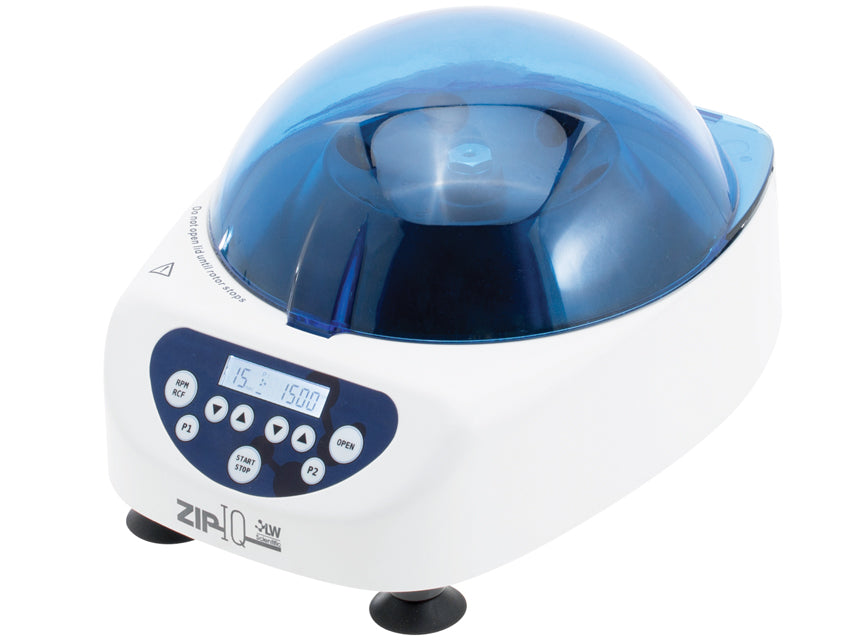

The Centrifuge ZIP-IQ TT from the GIMA brand is an advanced and compact solution for the centrifugation of blood, urine, and other fluids in tubes or microtubes from 0.5 to 15 ml. This small but robust unit is designed to deliver excellent performance in clinical analysis laboratories, hospitals, and research centers.

Main Features of the Centrifuge ZIP-IQ TT

The ZIP-IQ TT centrifuge is equipped with numerous features that make it ideal for various applications:

• Capacity: Can hold up to 6 tubes of 15 ml.


• Digital Adjustment: Speed and time can be easily adjusted via digital controls.


• Display: A clear display shows the speed and remaining time.


• Brushless Motor: The brushless motor, which requires no maintenance, reaches a speed of 5,000 rpm (2,500 g).


• Automatic Brake: The automatic brake stops the rotor in just 10 seconds.


• Automatic Opening: The lid opens automatically at the end of the cycle.

Recommended Speeds and Times for Various Fluids

The ZIP-IQ TT centrifuge offers optimal settings for different types of fluids:

• Blood:



  • Large Tube (6-15 ml): 5,000 rpm for 5 minutes


  • Small Tube (3-5 ml): 5,000 rpm for 6 minutes


  • Microtube (0.5-2.0 ml): 5,000 rpm for 7 minutes






• Urine: Urine tubes 10-15 ml: 2,000 rpm for 5 minutes


• Stool: Stool tubes 10-15 ml: 1,700 rpm for 6 minutes

Technical Features

The technical specifications of the ZIP-IQ TT centrifuge include:

• Speed Range: 300-5,000 rpm (increments of 100)


• Max RCF: 2,500 g


• Max Volume: 6 tubes of 15 ml


• Input Voltage: 100-240 V AC; 50-60 Hz


• Output Voltage: 24 V DC, 4 Amp


• Noise Level: 53 ± 3 dBA at 18-24”


• Timer: 15 sec - 99 min


• Dimensions: 212x270xh 158 mm


• Weight: 4.5 kg

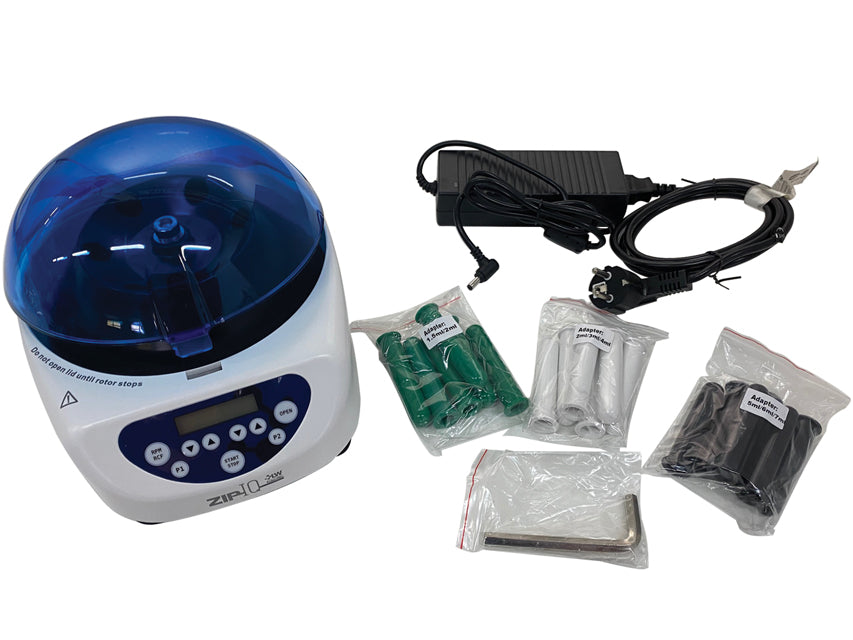

Standard Equipment

The ZIP-IQ TT centrifuge comes with a complete set of equipment to start working immediately:

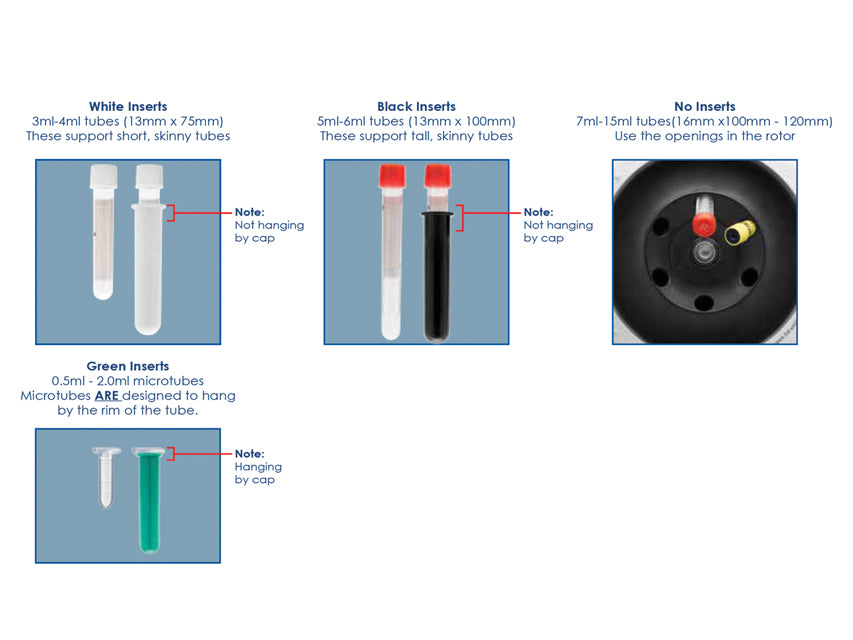

• Angled rotor for 6 tubes of 7-15 ml


• 6 black inserts for tubes of 5-6 ml


• 6 white inserts for tubes of 3-4 ml


• 6 green inserts for microtubes of 0.5-2.0 ml


• Hex key for rotor nut


• User manual in English and Italian

The Centrifuge ZIP-IQ TT is the ideal choice for those seeking a reliable, efficient, and easy-to-use device for the centrifugation of various types of samples. Thanks to its advanced features and robust construction, it guarantees quick and precise results in any situation.
