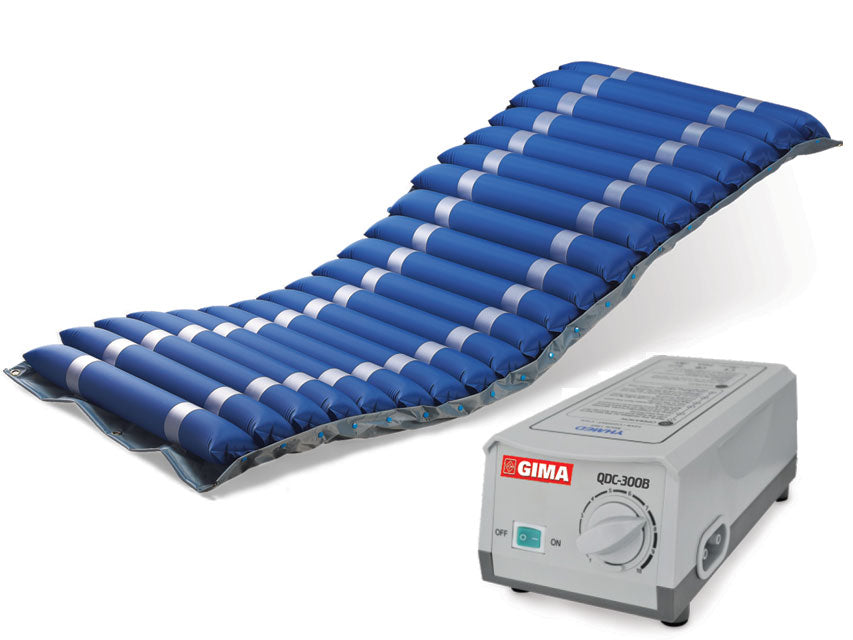

CELL MATTRESS + COMPRESSOR (28567+28568)

MATTRESS KIT WITH
INTERCHANGEABLE ELEMENTS + COMPRESSOR

• MATTRESS WITH
INTERCHANGEABLE ELEMENTS - ISO 03.33.06.021
Recommended for the prevention and treatment
of stage I and II pressure injuries in medium-term therapies and at
home.
The
20 nylon + PVC elements of 9.5 cm provide superior comfort.
The elements
are secured with pressure clips that can be easily replaced in case of damage.

•
COMPRESSOR
Special quiet compressor for perfect pressure adjustment thanks to the knob on the front panel.
The compressor can be
attached to any type of hospital bed using two hooks.
To be used
with bubble mattresses or alternating pressure mattresses.

Technical specifications
Mattress:
•
Overall dimensions: 200 x 86 x 9.5 cm
• Element height: 9.5 cm (4")
•
Materials: Nylon+PVC
• Thickness: 0.32 mm
• Number of elements:
20+1 spare
• For patients up to: 140 Kg

Compressor:
•
Dimensions: 25 x 12 x h 10 cm
• Voltage: 50 Hz
• Operating
pressure: 40-110 mmHg
• Air output: 6-7 liter/min
• Cycle
duration: 12 min
• Plastic box: Taiwan chimei ABS
• TUV-CE
IEC/EN60601-1; 60601-1-2
