ASALAIR CARBO 1800/F.A. EXHAUST HOOD

Activated Carbon Filter for Generic Substances

Built and tested according to European regulations:

- Low voltage directive: 2014-35-EU

- Electromagnetic compatibility directive: 2014-30-EU

- Machinery directive: 2006/42/EC

- CEI EN 61010-1:2010/A1:2019, UNI EN 14175-1-2-3:2003

Description

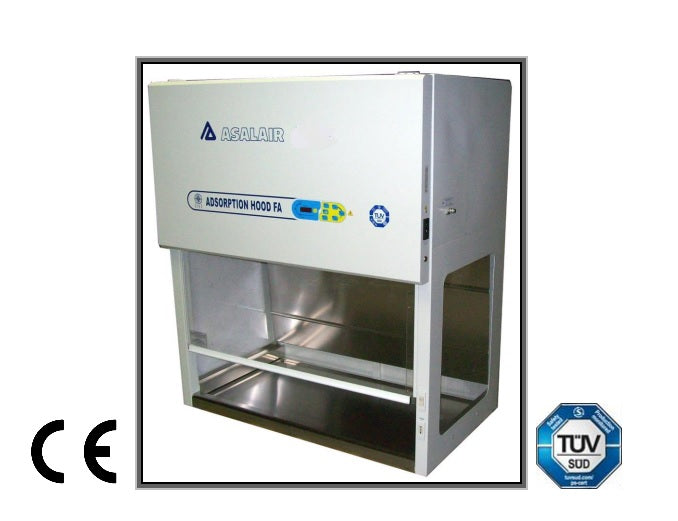

The Asalair Carbo model 1800 F.A. exhaust hood is a bench chemical hood with molecular filtration using activated carbon, designed to protect personnel and the environment from handling substances that generate toxic or foul-smelling vapors. This hood retains harmful molecules but does not protect the manipulated product from external contamination.

Ideal for openings of biological samples, handling of chemical substances, protection for centrifuges or aerosol risk devices. Equipped with a dual suction system that removes both heavy and light vapors, directing them towards the adsorbent filters.

Technical Features

• Activated carbon filter: 10+10+10 Kg


•
  Removable synthetic pre-filter, class ePM10 50% (EN ISO 16890:2016)



• Steel structure with acid-resistant coating, RAL 9010


• Work surface in satin Aisi 316L stainless steel


•
  Side and front panels in plexiglass, with motorized drop-down



• Front opening from 250 to 650 mm max


•
  Scratch-resistant polycarbonate membrane control with microprocessor



•
  External service socket, digital hour counter up to 9999 hours



•
  Low-noise adjustable fans for airflow compliant with EN 60335-1, EN 50178, EN 60950



• Lighting: fluorescent tube 36 W - 800 Lux


• Noise level = 60 dB


• Provision for second filter (carbon or HEPA)

Specific Technical Data

•
  Working area dimensions: Specify LxPxH mm



•
  Basin capacity: Specify in liters



•
  Overall dimensions: Specify LxPxH mm



•
  Filtered air volume: Specify in m³/h



•
  Average air speed: Specify in m/s



•
  Weight: Specify in Kg


Electrical Data

•
  Power supply: 230 V - 50 Hz



•
  Power consumption: 420 W + 440 W



•
  Fuses: 2 x 5 AF (5 x 20 mm)


Safety: The electrical components are isolated from the airflow to avoid risks when handling flammable materials inside the cabinet.
