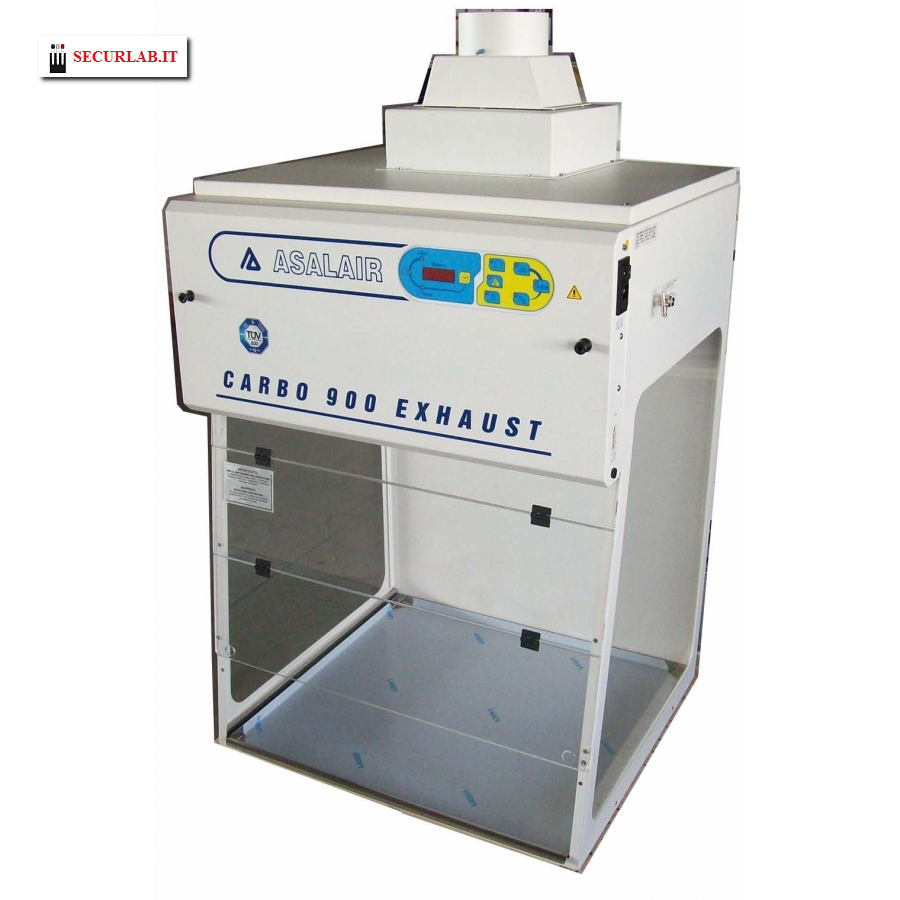

Asalair Carbo 900/A Exhaust Hood

The Asalair Carbo 900/A exhaust hood is a fundamental device to ensure safety and health in laboratory environments. Designed for molecular filtration, this hood is ideal for handling chemical substances that may release toxic or foul-smelling vapors, providing effective protection for personnel and the surrounding environment.

General Description

The Asalair Carbo 900/A is a bench chemical hood with molecular filtration using an activated carbon filter. It is particularly suitable for laboratories where there is no need to protect the manipulated product from external contamination. Thanks to its robust construction and advanced features, it represents an excellent choice for those working with organic and inorganic substances.

Construction Features

• Materials: Made of steel with powder-coated acid-resistant finish, color RAL 9010, for greater resistance and durability.


• Work Surface: Removable satin AISI 316L stainless steel, ideal for use with tanks or sinks.


• Lighting: Equipped with an 18 W fluorescent tube positioned externally to the work area for optimal visibility.


• Filter: Type A activated carbon filter to absorb a wide range of chemical compounds, with Type B option for specific substances such as ammonia and derivatives.


• Panels: Side and front panels in plexiglass, with hooks for securing the front panel, ensuring clear visibility and easy accessibility.

Functionality and Controls

• Suction: Two-speed control with an emergency option to maximize suction speed.


• Control System: Scratch-resistant polycarbonate panel with membrane keyboard and microprocessor circuit for intuitive use.


• Air Sensor: Automatic adjustment of suction speed based on the opening of the front panel, optimizing energy efficiency.


• Noise Level: Below 60 dB, ensuring a quiet and comfortable working environment.

Accessories and Safety

• Hose Holder: Positioned on the right side to test filter saturation.


• Hour Counter: Digital to monitor the operating hours of the filter and service socket, with programmable timer up to 99 hours.


• Warning Signal: Indicates lack of voltage during use, increasing operational safety.

Technical Data

• Working Area Dimensions: 696 x 637 x 770 mm.


• Capacity: 9 liters.


• Filtered Air Volume per Hour: 320 m³/h.


• Average Air Speed: 0.50 m/sec.


• Weight: 55 kg.


• Power Supply: 230 V - 50 Hz.


• Power Consumption: 110 W + 440 W.


• Protection Fuses: 2 x 3 AF (5 x 20) mm and for service socket 2 AF (5 x 20) mm.

Warranty and Support

The Asalair Carbo 900/A is designed to ensure durable and reliable use, essential for work environments such as research, industrial, and analysis laboratories. Safety and protection are priorities, and this model offers an excellent solution for those seeking a high-quality and high-performance device.

Why Choose the Asalair Carbo 900/A?

Choosing the Asalair Carbo 900/A means investing in a product that combines safety, efficiency, and ease of use. With its advanced features and a design intended for intensive use, it is the ideal choice for professionals in the chemical and scientific fields.
