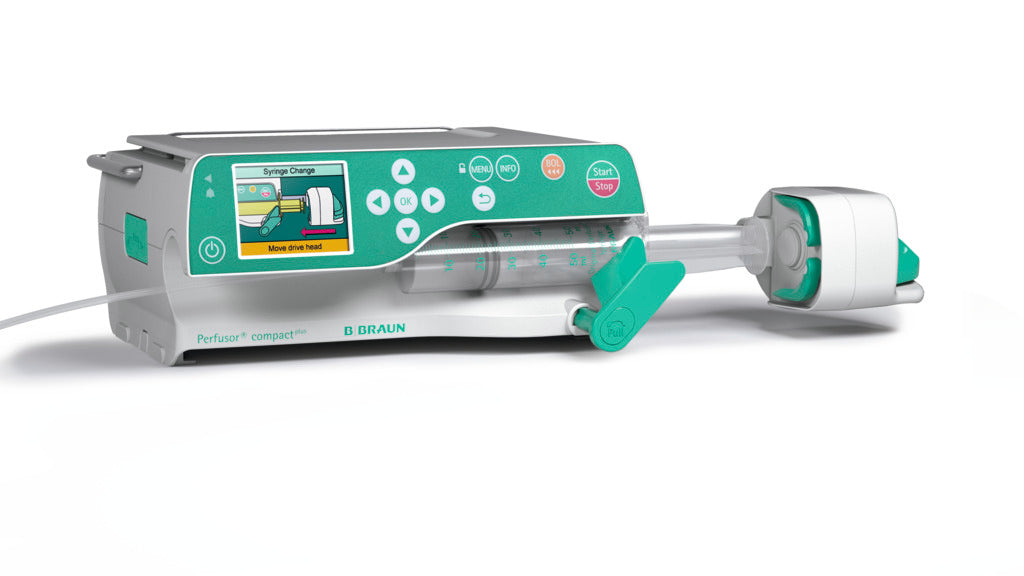

B. Braun Perfusor® Compact Plus syringe pump

The Perfusor® Compact Plus by B. Braun is a transportable syringe pump for continuous or intermittent infusion, indicated for adults, children and newborns.
It is designed for the controlled administration of parenteral and enteral solutions through the main clinical access routes: intravenous, intra-arterial, subcutaneous, epidural and enteral.

The system is intended for infusion therapy of drugs (anesthetics, sedatives, analgesics, catecholamines), blood and blood components, parenteral and enteral nutrition, and lipid solutions.

The device automatically recognizes the gauge of the validated syringe via the syringe holder, precisely correlating piston movement with the set infusion rate.

Areas of use

• Intensive care


• Anesthesia


• Emergency department


• Post-operative area


• Oncology


• Pediatrics


• Home care


• Medical transport

Use is restricted to trained healthcare personnel according to the manufacturer's instructions.

Regulatory compliance

• DIN EN 60601-1:2006 (IEC 60601-1:2005)


• DIN EN 60601-2-24:2015 (IEC 60601-2-24:2012)


• IEC 60601-1-6:2010


• IEC 60601-1-8:2006


• IEC 60601-1-12:2014


• IEC EN 62366:2007 + A1:2014


• IEC EN 62304:2006 + A1:2015

Compatibility

•
  B. Braun Omnifix SOLO Luer Lock syringes (3, 5, 10, 20, 30, 50 ml)



• B. Braun Perfusor Luer Lock 20 ml syringes


• ENFit enteral syringes (5, 10, 20, 60 ml)


• Perfusor extension sets in PE and PVC


• Power cable for B. Braun pumps

Standard equipment

• Perfusor® Compact Plus syringe pump


• Integrated rechargeable lithium-ion battery

Power supply not included (available separately).

Technical information

Continuous infusion rate

• 0.01 – 999.9 ml/h (increments of 0.01 ml/h)


• Factory setting: 0.1 – 200 ml/h

Bolus rate

• 1 – 1800 ml/h

Bolus mode

• Manual bolus


• Bolus with preset volume: 0.1 – 50 ml


•
  Bolus with preset volume and duration: 0.1 – 50 ml / 1 min – 24 h


Accuracy

• ±2% according to IEC/EN 60601-2-24 (pump + syringe)

Usable syringes

• 2/3 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml


• Automatic gauge identification

Display

• Backlit color graphic display


• Resolution: 240 × 320 pixels (262k colors)


• Night mode


• Viewing angle up to 80°

Drug library

• Up to 3,000 drugs


• 10 concentrations per drug


• 30 pharmacological categories


• 15 patient profiles

Safety

• Dose Error Reduction System (hard and soft limits)


• Automatic KVO function


• Programmable pause (1 min – 24 h)
