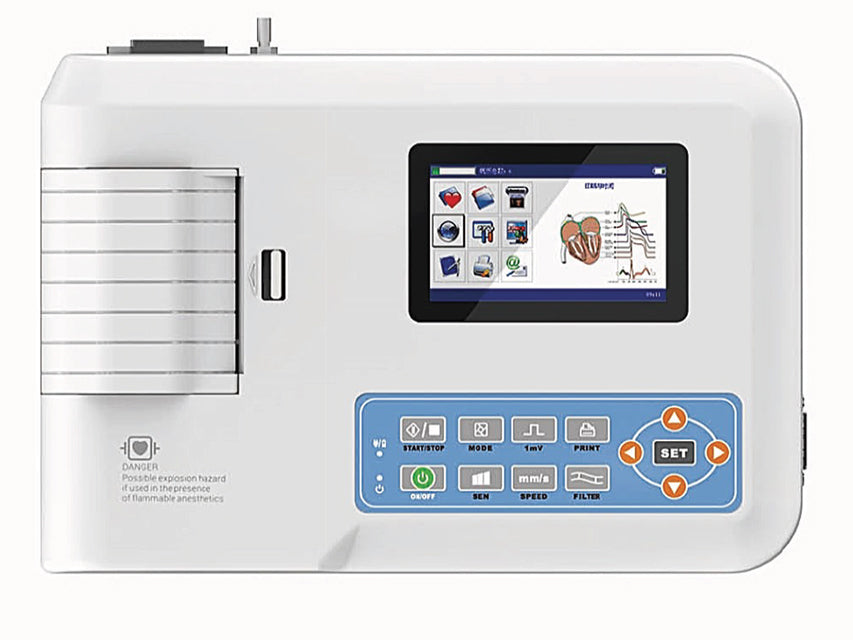

The ECG 300G Vet - 3 Channels with Display is an advanced device specifically designed for veterinary diagnostics. This 3-channel electrocardiograph is capable of simultaneously receiving signals from 12 leads and printing the ECG tracing using a thermal printing system. Ideal for veterinary clinics and hospitals, the ECG 300G-VET offers a complete solution for recording, displaying, and analyzing ECG tracings.

Main Features of the ECG 300G-VET

• Sync Collection: Digital signal processing technology to obtain high-quality ECG tracings with filters for power frequency, baseline, and EMG signals.


• 12-Lead ECG: Displays printing modes, sensitivity, print speed, filter status, and more on a screen.


• Multiple Print Modes: Includes automatic and manual modes, with adjustable waveform length via timed printing function.


• High-Capacity Built-in Memory: Stores at least 1,000 cases for easy data access and management.


• Multilingual Interface: Supports GB, FR, IT, ES, PT, DE, PL, BG, SI, SK, RS, UA, TR (RU, NE, CN, VN).

Technical Specifications

ECG Instrumental Input

• Safety Type: Class I, applied part type CF defibrillation-proof.


• Leads: 12 standard leads.


• Input Mode: Protection against fluctuations and defibrillation.


• Patient Leakage Current: < 10 µA.


• Sampling Rate: 1,000 Hz.


• Frequency Response: 0.05~150 Hz (-3 dB, +0.4 dB).

Trace Data Management

• EMG Interference Filter: 25Hz/35Hz (-3 dB).


• AC Filter: 50Hz/60Hz (-20 dB).

Trace Output

• Recording System: Thermal printing system (32 dots/mm).


• Recording Paper: 80 mm (Width) × 20 m (Length).


• Print Speed: 12.5 mm/s, 25 mm/s, 50 mm/s, ± 5%.


• Sensitivity: 5, 10, 20 mm/mV, accuracy ± 2%.


• Automatic Recording: Setting according to format and automatic mode, automatic lead switching, measurement, and analysis.


• Rhythm Recording: Setting according to format and rhythm mode, automatic measurement and analysis.


• Manual Recording: Recording according to manual format.

Power Supply

• AC: 110-240V, 50/60 Hz.


• DC - Lithium Battery: Rechargeable lithium battery 7.4V, 3500 mAh.

Dimensions and Weight

• Dimensions: 315 x 215 x 77 mm.


• Net Weight: 1.6 kg.


• A/D Conversion: 12 bits.


• Time Constant: = 3.2 s.


• CMRR: > 105 dB.


• Permanent Polarization Voltage: ± 500 mV.


• Noise: = 12 µVp-p.

With the ECG 300G Vet - 3 Channels with Display, veterinary professionals can rely on a reliable and accurate device for the cardiological diagnosis of their patients. Thanks to its advanced features and its capacity to store a large number of cases, this electrocardiograph represents an excellent choice for improving the quality of veterinary care.
