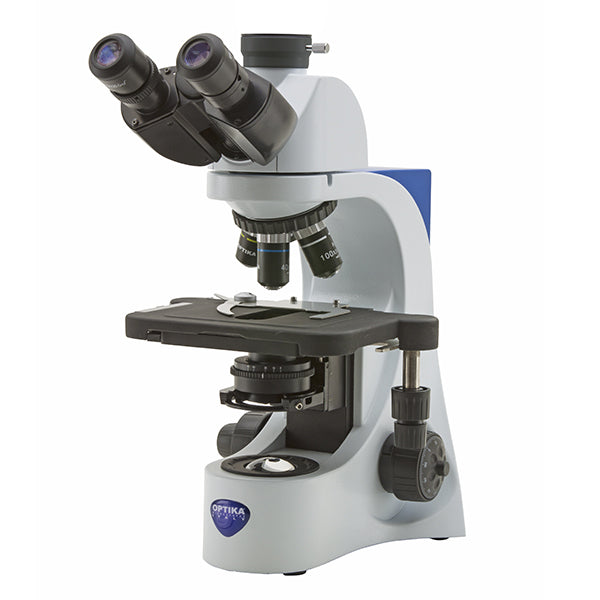

Trinocular Brightfield Microscope, IOS, Multi-Plug (OPTIKA)


Discover the Trinocular Brightfield Microscope from the OPTIKA series, an advanced and versatile solution for your laboratory needs. This microscope has been designed to deliver exceptional performance in a variety of applications, including routine microscopy, brightfield, darkfield (oil and dry), phase contrast, fluorescence, and polarized light. Its robust construction ensures stability and durability over time, making it an ideal investment for any laboratory.

Main Features

The OPTIKA trinocular brightfield microscope is equipped with a range of advanced features that make it an indispensable tool for professionals in the field.

Trinocular Head

• Configuration: Trinocular (fixed 50/50), inclined at 30°, rotatable 360°


• Interpupillary distance: Adjustable between 48 and 75 mm


• Diopter adjustment: On the left eyepiece tube


• Eyepieces: WF10x / 20 mm, high eye point and secured with screws

IOS N-PLAN Objectives

The microscope is equipped with IOS N-PLAN objectives (Infinity Corrected) for outstanding, high-quality viewing:

• 4x / 0.10


• 10x / 0.25


• 40x / 0.65


• 100x / 1.25 (oil / water)


• All objectives are anti-fungal treated

Mechanical Stage

• Type: Double-layer rackless


• Dimensions: 233 × 147 mm


• XY range: 78 × 54 mm

Focusing

• Type: Coaxial coarse focus with adjustable tension


• Mechanism: Fine focusing with stop to prevent contact between objective and specimen

Condenser

• Type: Abbe NA 1.25


• Features: Iris diaphragm with objective code, focusable and centering

Illumination

• Type: Fixed Koehler


• System: X-LED 3 with white 3.6 W LED (6,300 K)


• Control: Brightness control


• Power supply: External Multi-plug power supply 100-240Vac / 6Vdc

Applications and Benefits

The OPTIKA Trinocular Brightfield Microscope is ideal for a wide range of laboratory applications, thanks to its versatility and advanced features. Here are some of the main benefits:

• Versatility: Suitable for brightfield, darkfield, phase contrast, fluorescence, and polarized light


• Stability: Designed to be extremely stable on the bench


• Durability: Robust construction for long service life


• Image quality: IOS N-PLAN objectives for rich, high-quality viewing


• Advanced illumination: X-LED³ system for optimal illumination

Investing in the OPTIKA Trinocular Brightfield Microscope means equipping yourself with a reliable, high-quality instrument, perfect for meeting the needs of any modern laboratory.
