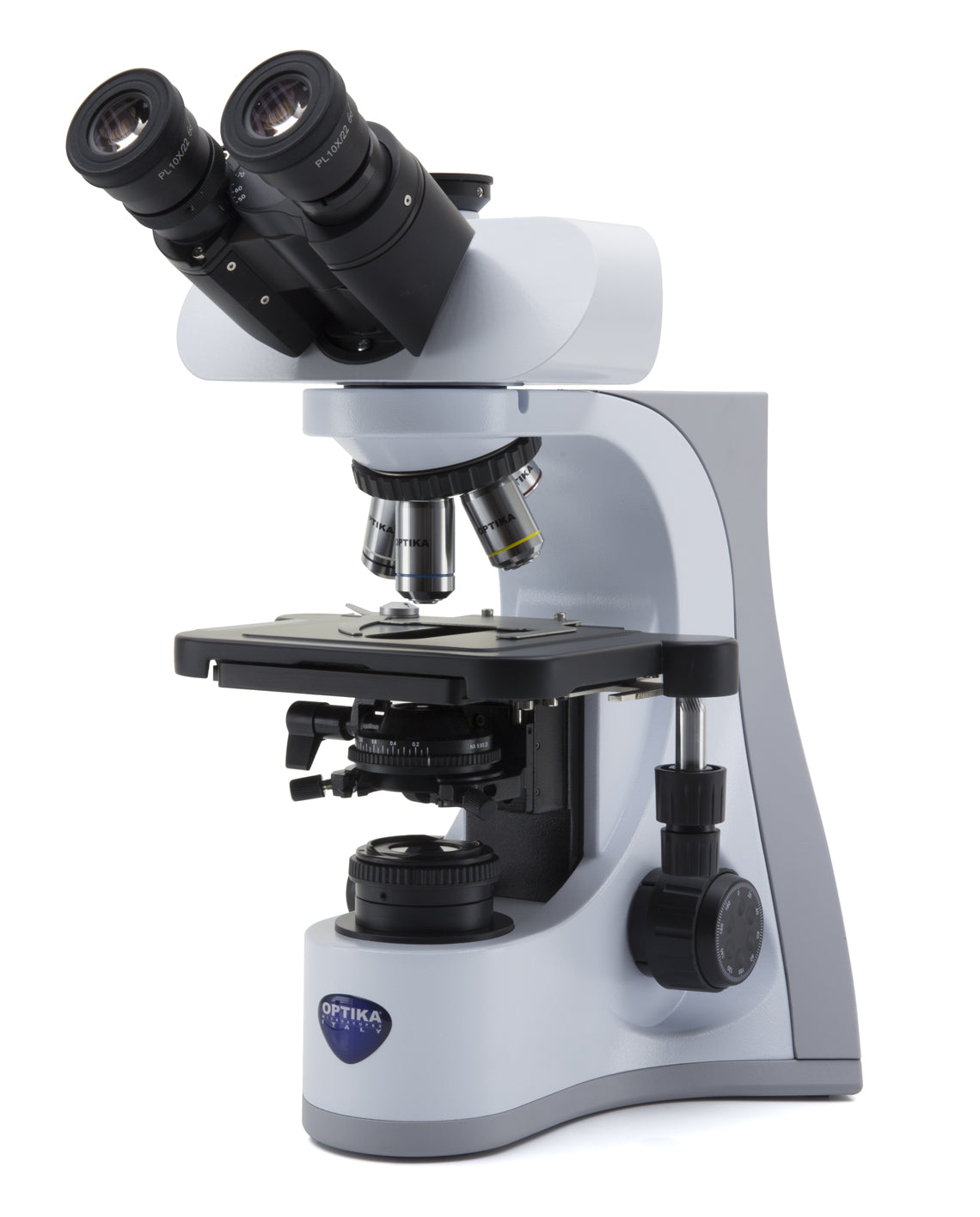

Trinocular brightfield microscope, IOS, multi-plug (OPTIKA brand)


The OPTIKA trinocular brightfield microscope is an advanced instrument designed to provide clear and detailed images, ideal for laboratories, universities, and professionals in the medical and scientific fields. With a range of cutting-edge technical features, this microscope ensures excellent performance and long-term reliability.

Main features

Observation mode: Brightfield, perfect for viewing transparent or stained samples.

Head: Trinocular (fixed 50/50), inclined at 30°, rotatable 360° for comfortable and versatile viewing.

Interpupillary distance: Adjustable between 50 and 75 mm to suit different users.

Diopter adjustment: On the left eyepiece tube for personalized viewing.

Eyepieces: WF10x / 22 mm, high eye point and with rubber eyecups for greater comfort during observation.

High-quality objectives

The microscope is equipped with IOS W-PLAN objectives with antifungal treatment, ensuring sharp and precise images:

• IOS W-PLAN 4x / 0.10


• IOS W-PLAN 10x / 0.25


• IOS W-PLAN 40x / 0.65


• IOS W-PLAN 100x / 1.25 (Oil)

Specimen stage

The double-layer rackless mechanical stage measures 233 × 147 mm and offers an XY range of 78 × 54 mm, allowing precise positioning of samples.

Precise focusing

The coaxial coarse focusing mechanism (with adjustable tension) and fine focusing mechanism is equipped with end stops to prevent contact between objective and sample, ensuring accurate and safe focusing.

Advanced condenser

The swing-out NA 0.2 / 0.9 condenser with iris diaphragm is focusable and centering, improving illumination quality and image resolution.

Transmitted illumination

The Full Koehler illumination system with X-LED³ and 3.6 W white LED (6,300K) offers adjustable brightness, ensuring uniform and powerful illumination for all observations.

Multi-plug power supply

The external multi-plug power supply 100-240Vac / 6Vdc makes the microscope compatible with different mains voltages, ensuring versatile use in various international settings.

Choose the OPTIKA trinocular brightfield microscope for your advanced observation needs and discover the difference in the quality and precision of your analyses.
