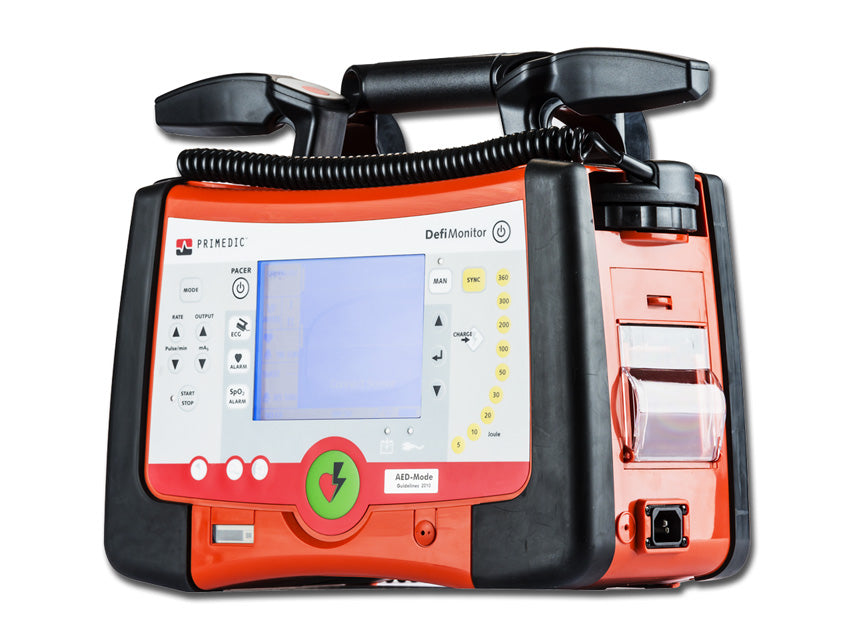

The Manual Defibrillator + AED DefiMonitor XD is a high-quality multifunctional professional tool designed to ensure maximum safety and ease of use in emergency situations. This compact device is ideal for hospitals, ambulances, and healthcare facilities, offering excellent performance and a reliable design.

Main Features

• Compact Design: Dimensions of 33 x 29 x 16 cm, easy to transport and use.


• Efficient Defibrillation: Biphasic impulse regulated by current with automatic energy from 140 to 360 J and manual energy levels up to 360 J.


• Advanced ECG Monitoring: Supports various ECG leads and offers patient resistance from 23 to 200 Ohms.


• VF Detection: Rapid analysis with detection times from 7 to 12 seconds and well-defined asystole and VF thresholds.

Included Accessories

The DefiMonitor XD comes with a set of essential accessories for immediate use:

• Adult/pediatric electrodes


• Disposable adult adhesive electrodes


• Connection cable


• ECG cable


• Power cable


• 1 tube of gel


• 1 roll of paper

Data Management and Printing

The device is equipped with a removable memory of 2 Gb and allows voice recording for over 90 hours. The integrated thermal printer offers a resolution of 200 dpi and various feed rates (25 mm/s and 50 mm/s) for effective documentation.

Power Supply and Battery

• Power Supply: Input voltage from 90-264V, 50-60 Hz.


• Rechargeable NiCD Battery: Capacity of 1.4 Ah and charging time of 2.5 hours, with a monitoring duration of 3 hours.

Regulations and Safety

The DefiMonitor XD complies with numerous international regulations, ensuring maximum safety during use:

• IEC60601-1:1988 + A1:1991 + A2:1995 (Electrical safety)


• IEC60601-1-2:2001 (Electromagnetic compatibility)


• IEC60601-1-4:1996 + A10:1999 (Programmable medical electrical systems)


• IEC60601-2-4:2002 (Defibrillators)


• EN1789:2003 (Ambulance standard)


• Protection class type IP33

Conclusion

The Manual Defibrillator + AED DefiMonitor XD represents an excellent choice for those seeking a reliable and versatile emergency device. With its complete range of features and accessories, it is designed to meet all resuscitation and cardiac monitoring needs. Leave nothing to chance: choose DefiMonitor XD for the safety of your patients.
