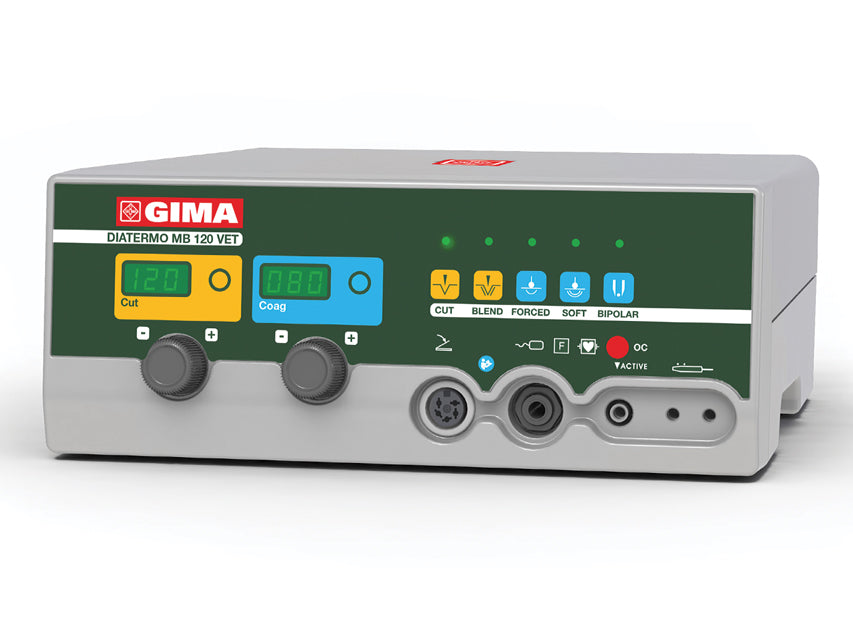

The Diathermocoagulator MB 120D Vet - Mono-Bipolar - 120 Watt from GIMA is an electronic high-frequency electrosurgical device, designed for small and medium veterinary surgical procedures. This versatile and highly professional device offers a range of advanced functions that ensure precision and safety during surgical operations.

Advanced Functions of the Diatherm MB 120D

The Diatherm MB 120D allows for various cutting and coagulation modes, adapting to the specific needs of each procedure:

• Pure cut (CUT): for clean and precise incisions.


• Coagulated cut (BLEND): to reduce bleeding during cutting.


• Superficial coagulation (FORCED COAG): ideal for stopping superficial bleeding.


• Deep coagulation (SOFT COAG): for deep coagulations without carbonization.


• Bipolar coagulation (BIPOLAR): usable with a special adapter for precise and controlled coagulation.

Technical Features

The Diatherm MB 120D is equipped with numerous technical features that enhance its effectiveness and safety:

• Minimally invasive surgery: reduces trauma for the patient.


• Use of bipolar forceps: for greater precision in coagulation.


• Split neutral electrodes: for optimal safety.


• Storage of last settings: facilitates repeated use with the same configurations.


• Power activation with pedal and/or handpiece: allows for precise control during the procedure.


• Digital power adjustment and indication: for accurate monitoring.


• Adjustment of sound emission intensity: for a more comfortable working environment.

Technical Specifications

• Max power cut CUT: 120 W-250 Ohm


• Max power cut-coagulated BLEND: 90 W-200 Ohm


• Max power coagulation FORCED COAG: 80 W-150 Ohm


• Max power coagulation SOFT COAG: 60 W-100 Ohm


• Max bipolar power BIPOLAR: 40 W-100 Ohm


• Operating frequency: 600 kHz


• Neutral electrode: F


• Selectable power supply: 115 - 230 Vac


• Network frequency: 50 - 60 Hz


• Max power absorbed: 300 VA


• Dimensions: 254x104x288 mm


• Weight: 5 kg


• Controls: veterinary patient plate circuit, emitted power control, self-diagnosis


• Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical class: I CF, DDM 93/42/CE Class: II b

Advantages of the Diatherm MB 120D

The Diatherm MB 120D offers numerous advantages for veterinary professionals:

• Ergonomics and safety: designed to ensure maximum comfort and safety during use.


• Neutral electrode control system: constantly checks proper functioning.


• Function switching from the handpiece: allows maintaining focus on the surgical field.


• Made in Italy: guarantee of quality and reliability.

The Diathermocoagulator MB 120D Vet from GIMA is the ideal choice for those seeking a versatile, safe, and highly efficient electrosurgical device for veterinary surgery. Thanks to its advanced technical features and ease of use, it represents an indispensable tool for professionals in the field.
