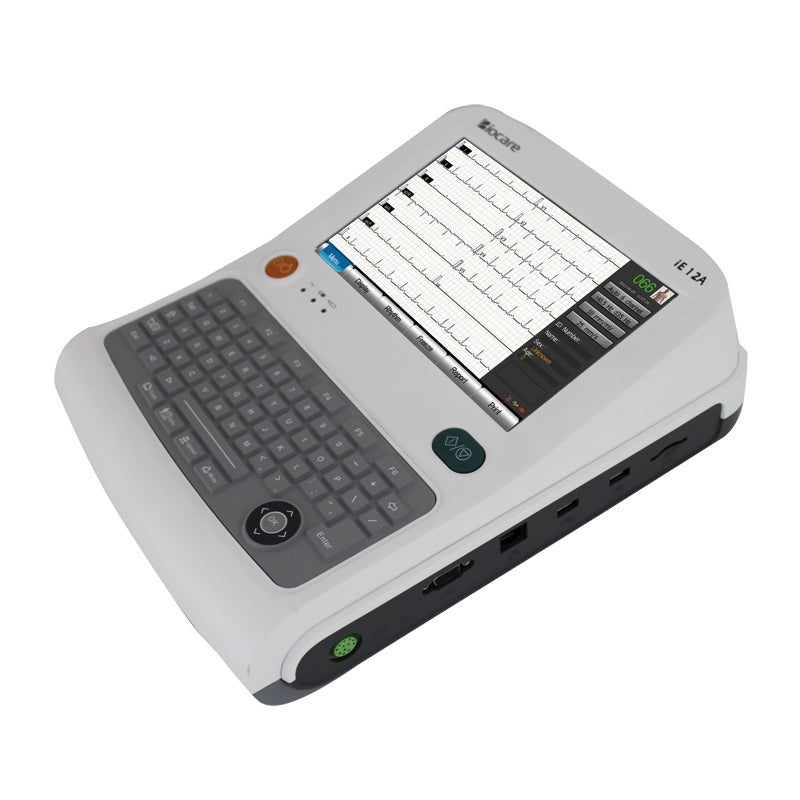

The Biocare 12-Lead 12-Channel Digital Interpretive Electrocardiograph (BIOCARE brand) represents the cutting edge in cardiac diagnostics. This device, with its modern and functional design, features a large 8.9-inch color LCD touchscreen display, allowing for clear and detailed viewing of ECG tracings in real-time. The alphanumeric keyboard with waterproof silicone protection ensures secure and precise data entry.

Main Features

The Biocare electrocardiograph offers a range of advanced features that make it an indispensable tool for healthcare professionals:

• 8.9-inch LCD touchscreen display: Clear and detailed viewing of ECG tracings.


• Waterproof alphanumeric keyboard: Silicone protection for secure data entry.


• Manual and automatic operating modes: Flexibility in recording operations.


• Digital filters: Against mains interference, muscle tremor, and baseline wander.


• Italian language function menu: Ease of use for Italian operators.


• Print on A4 thermal paper: 12-lead tracing on 210 mm paper.


• Patient cable with integrated box: Precise and reliable signal acquisition.

Advanced Functions

The Biocare electrocardiograph is equipped with numerous advanced functions for accurate and timely diagnosis:

• R-R interval analysis: Arrhythmia detection and detailed analysis report.


• Display of the last 300 seconds of analysis: Continuous and precise monitoring.


• Recording in various formats: 3x4, 3x4+R, 3x4+3R, 6x2, 6x2+R, 6x2+3R, 12, 12+R, 12+3R.


• Clinical information entry: Via touchscreen, keyboard, or barcode reader.


• Specific analysis for adults and children: Personalized diagnosis for each patient.


• USB and WiFi interface (optional): PC connection for advanced data management.


• ECG data storage: In JPG, DICOM, and XML format.


• Diagnosis based on Minnesota Code: International reference standard.


• CSE & AHA data management system: Complete and secure patient data management.

Technical Specifications

The technical specifications of the Biocare electrocardiograph ensure high performance and reliability:

• Display: 8.9" touchscreen


• Paper width: 210 × 150 mm × 200 p


• Sweep speed: 6.25 - 12.5 - 25 - 50 mm/s


• Dimensions: 345 × 260 × 128.5 mm


• Weight: 5.2 kg

The Biocare digital interpretive electrocardiograph is the ideal choice for those seeking a reliable, accurate, and feature-rich device for cardiac diagnostics. Thanks to its intuitive interface and technical characteristics, it represents valuable support for doctors and healthcare professionals.
