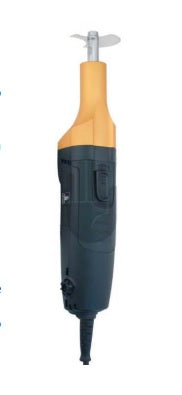

Oscillating autopsy saw HEBUmedical S4274ST

Short description:

Electric saw for autopsy and anatomical sections, suitable for cutting soft and bone tissue without scattering debris. Removable head and autoclave-sterilizable. Not classified as a medical device.

Long description:

HEBUmedical oscillating saw model S4274ST, made in Germany.

The instrument enables precise and clean cuts on tissue and bone parts thanks to the oscillating movement of the blade.

Motor with electronic control and soft start, air cooling for protection against residue and overheating.

Autoclave-sterilizable head compliant with Italian Legislative Decree 81/2008 Title X.

The instrument does not fall under EU Regulation 2017/745 on medical devices.

Technical specifications:

Dimensions 350x80x80 mm

Handle width 65 mm

Power supply 220-240 V 50-60 Hz

Power 250 W

Rated current 2.5 A

Motor speed 12,000-21,000 rpm

Oscillations 200-350 per second

Oscillation angle 6 degrees

Noise level 75 dB (85 dB diffuse)

Hand-arm vibrations < 2.5 m s2

Cable length 4.5 m

Weight 1.7 kg with cable - 1.3 kg without cable

Safety class II - IP2X

Standard equipment:

1 double-segment blade Ø 65 mm

1 single-segment blade Ø 70 mm

1 T-handle hex key

2 open-end wrenches

1 tube of lubricating grease 8 g

Replacement blades:

Code 4328 round blade Ø 50 mm hardened steel

Code 4329 round blade Ø 65 mm hardened steel

Code 4332 round blade Ø 80 mm hardened steel

Code 4330 narrow blade Ø 70 mm hardened steel

Code 4331 double sagittal blade Ø 65 mm hardened steel

Cleaning and sterilization:

Remove the blade after each use, clean with a solution with pH below 10 and disinfect.

Steam sterilize according to EN 285 and DIN EN ISO 17665-1.

Manufacturer: HEBUmedical GmbH – Germany

Category: Laboratory and pathology instrumentation
