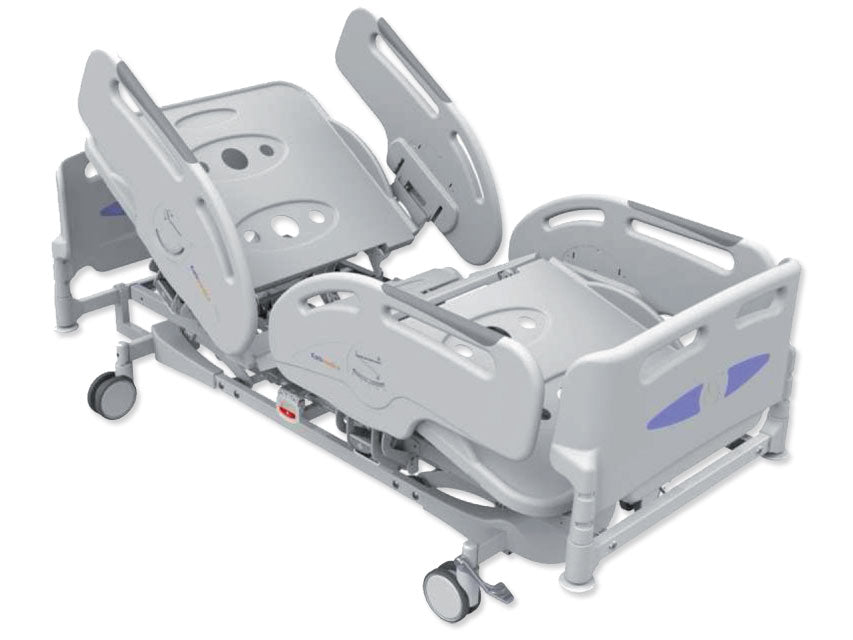

The Electric bed with variable height is an advanced solution for hospital and home care needs. With a maximum load capacity of 230 kg, this bed is designed to ensure comfort, safety, and ease of use for both patients and healthcare professionals.

Main features

The hospital bed is equipped with 3 joints and 4 electrically adjustable sections, allowing complete customization of the patient's position. The variable height adjustment makes care and assistance operations easier.

• Trendelenburg and Reverse Trendelenburg position: up to 15° to improve circulation and facilitate certain medical procedures.


• Painted steel structure: all steel parts are coated with epoxy powders for greater durability and corrosion resistance.


• Adjustable back section: with electric actuator featuring anti-crush function and rototranslation to avoid abdominal compression.


• CPR handles: present on both sides of the bed to facilitate emergency maneuvers.


• Adjustable leg section: with click mechanism in 6 positions for optimal comfort.


• Remote control: to maintain or deactivate the desired position.


• Multifunction control panel: adjusts the backrest, mattress platform height, legs and feet, comfort position, Trendelenburg position and Reverse Trendelenburg position.

Accessories and additional functions

• Compartment for patient lift pole and IV pole: for optimal management of medical accessories.


• 4 full containment side rails: made of technopolymers, individually foldable for greater patient safety.


• Shaped and removable head/foot panels: with integrated handles useful for patient movement and mobility.


• 150 mm wheels: with centralized locking and directional control system, they make bed movement easier.

Technical specifications

• Dimensions: 110 x 225 x h 91 cm


• Bed weight: 130 kg


• Mattress platform min/max height: 380-780 mm


• Maximum backrest height adjustment: 71°


• Maximum leg/foot adjustment: 30°


• Trendelenburg and Reverse Trendelenburg: 15°


• Min/max height: 835-1245 mm


• Total bed width/length: 1010/2260 mm (with bumpers and side rails)


• Useful mattress platform width/length: 880/2000 mm


• Power supply: 160-230 V - 50-60 Hz


• Maximum load capacity: 270 kg


• Insulation class: I / B


• Protection rating: IP66


• Italian manufacturing: guarantee of quality and reliability

The Electric bed with variable height is an excellent choice for those looking for a robust, versatile, and high-quality product for healthcare. Thanks to its many advanced features and durable construction, this bed is ideal for hospitals, nursing homes, and home care.
