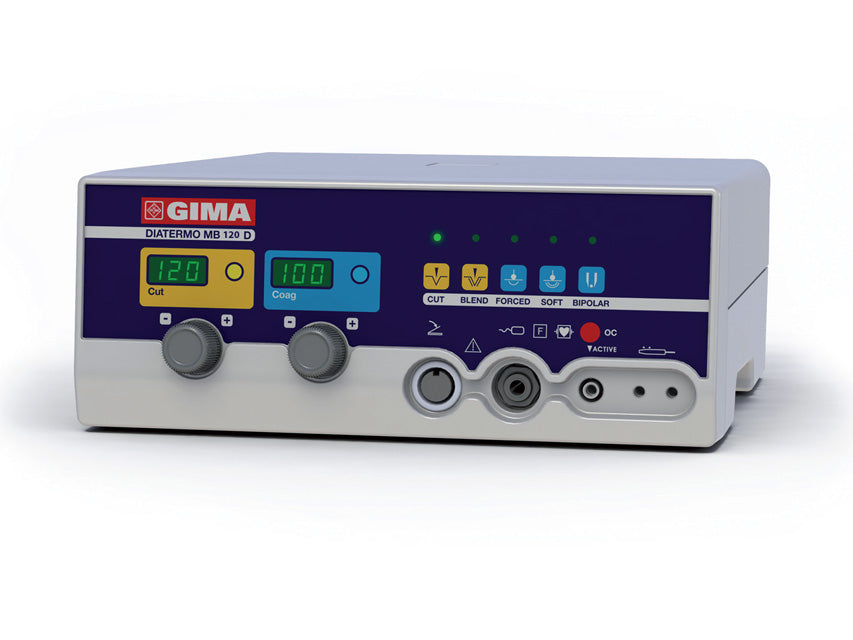

Discover the Diatermo MB 120D Electrosurgical Unit, a cutting-edge device designed to ensure high performance in surgical settings. With a power of 120 Watts, this mono-bipolar electrosurgical unit is ideal for minor and medium surgery, offering versatility and precision in every procedure.

Advanced Functionality

The MB 120D electrosurgical unit features various operating modes to adapt to different surgical needs:

• Pure Cut (CUT): Maximum power of 120 W for precise and clean cutting.


• Coagulated Cut (BLEND): Maximum power of 90 W for effective coagulation during cutting.


• Superficial Coagulation (FORCED COAG): Maximum power of 80 W for rapid and superficial coagulation.


• Deep Coagulation (SOFT COAG): Maximum power of 60 W for delicate procedures without charring.


• Bipolar Coagulation (BIPOLAR): Maximum power of 40 W for procedures requiring greater control.

Technical Specifications

The MB 120D Diatermo is designed to ensure maximum safety and reliability during use. Here are some of its main technical features:

• Working Frequency: 600 kHz for optimal operation.


• Selectable Power Supply: 115 - 230 Vac, suitable for various network configurations.


• Safety Controls: Plate/patient circuit control and self-diagnosis to ensure safe operation.


• Certifications: Compliant with EN60601-1, EN60601-1-2, EN60601-2-2 standards.


• Dimensions: 254 x 104 x 288 mm, Weight: 5 kg, for easy maneuverability.

Standard Equipment

The MB 120D electrosurgical unit comes with complete equipment for immediate and practical use:

• Disposable MB handle with 2 buttons for intuitive control.


• Waterproof operating pedal 30577, alternative to using the handle.


• Flat plate with cable 30564 for excellent conductivity.


• Kit of 10 autoclavable electrodes, Ø 2.4 mm for enhanced hygiene.


• 2 m long power cord for greater freedom of movement.


• User manual available in GB, IT, and upon request in FR, ES, PL.

Advantages of Use

Choosing the Diatermo MB 120D electrosurgical unit means opting for a device that offers:

• Minimally Invasive Surgery: Reduces patient trauma and speeds up recovery times.


• Ease of Use: Switching functions and controlling power output directly from the handle.


• Ergonomics and Safety: Ergonomic design that allows focus on the operating field.

Investing in the Diatermo MB 120D Electrosurgical Unit means ensuring your patients receive high-quality surgical intervention with maximum safety and precision. Contact us for more information or to place an order!
