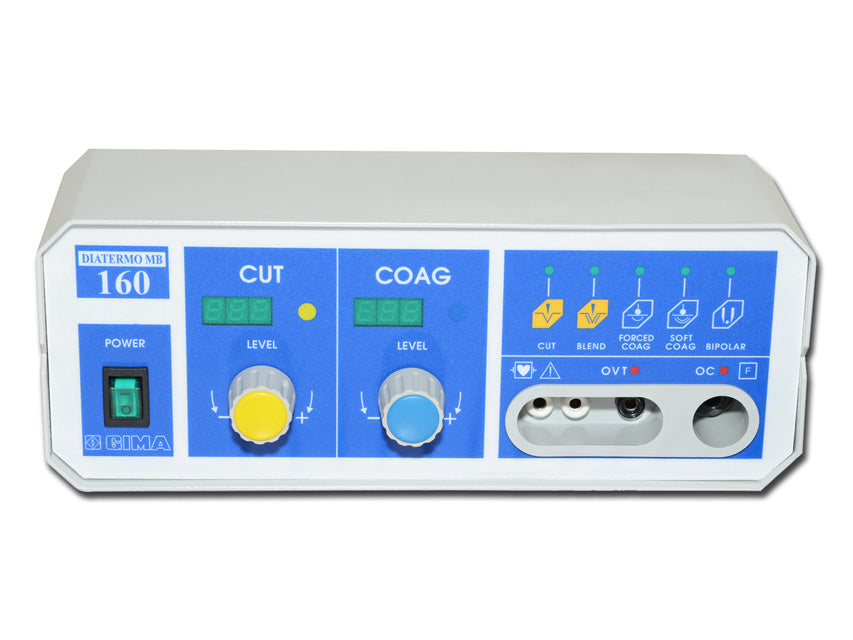

Discover the GIMA MB 160 Electrosurgical Unit, a cutting-edge device designed to ensure high performance during medium surgery procedures. This high-frequency electronic electrosurgical unit is ideal for monopolar and bipolar coagulation operations, offering a maximum power of 160 watts for optimal results.

Versatile Operating Modes

The MB 160 Electrosurgical Unit offers various operating modes, making it extremely versatile for different types of surgical interventions:

• Pure Cut: for precise and clean incisions.


• Cut Coagulation: to reduce bleeding during surgery.


• Forced Coagulation: for rapid and controlled coagulation.


• Soft Coagulation: for delicate procedures on sensitive tissues.


• Bipolar Coagulation: with forceps for greater precision.

Ideal Applications

The MB 160 Diathermy is particularly suitable for procedures in wet environments, such as mucous membranes, and for tissues with variable compositions. It is recommended for:

• Gynecological Surgery: for delicate and complex procedures.


• Orthopedic Surgery: for procedures requiring power and precision.

Safety and Reliability

This electrosurgical unit is equipped with advanced safety systems, including:

• OC Alarm (open circuit): alerts when the plate is not inserted, deactivating cut and coagulation functions.


• OVT Alarm: prevents overheating of the power module, ensuring safe use.

Technical Specifications

The MB 160 Electrosurgical Unit features high-level technical specifications, including:

• Minimum selectable power: 0 W


• Maximum CUT power: 160 W (250 Ohm)


• Maximum BLEND power: 120 W (200 Ohm)


• Maximum FORCED COAG power: 100 W (150 Ohm)


• Maximum SOFT COAG power: 80 W (100 Ohm)


• Maximum BIPOLAR power: 60 W (100 Ohm)


• Operating frequency: 600 kHz


• Weight: 7 kg


• Dimensions: 260 x 110 x 265 mm


• Selectable power supply: 115 - 230 Vac


• Fuses: 2x 3.15A (230Vac) / 2x 6.3A (115Vac)


• Adjustable sound emission in 5 steps (from 55 to 75 dBA)


• Self-diagnosis of faults and control of emitted power

Standard Equipment

Each MB 160 Electrosurgical Unit comes with complete equipment for immediate use:

• MB handpiece with 2 buttons, single-use


• Foot switch 30577 (alternative to handpiece use)


• Flat metal plate with cable 30564


• Kit of 10 autoclavable electrodes, diameter 2.4 mm


• User manual in IT, GB, ES, FR, PL


• 2-meter power cord

Choose the GIMA MB 160 Electrosurgical Unit for a safe, effective, and professional surgical experience. With its advanced technology and safety features, it is the ideal companion for every surgeon.
