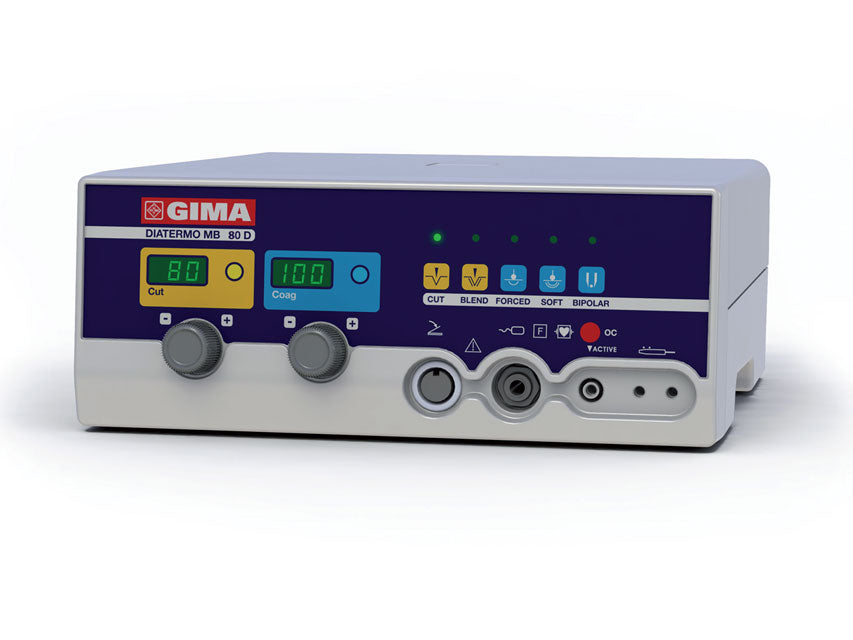

The Diatermo MB 80D is a high-frequency electronic electrosurgical unit, designed to ensure high performance in small and medium surgery procedures. Thanks to its power of 80 Watts and advanced control functions, this instrument is an ideal choice for medical and surgical professionals.

Main Features

The Diatermo MB 80D offers a series of innovative features that make it a highly efficient and safe device:

• Digital power reading: allows precise monitoring during the procedure.


• Microcontroller monitoring: ensures the correct operation of the functions.


• Neutral electrode monitoring: for increased safety during use.


• Handpiece control: allows power delivery to be managed without diverting attention from the operating field.

Operating Functions

The Diatermo MB 80D is equipped with several operating modes, making it versatile for various types of procedures:

• Pure cut (CUT): for clean and precise incisions.


• Cut-coagulation (BLEND): for a balance between cutting and coagulation.


• Superficial coagulation (FORCED COAG): to effectively stop bleeding.


• Deep coagulation (SOFT COAG): for coagulation without charring.


• Bipolar coagulation (BIPOLAR): using forceps for greater precision.

Recommended Applications

This electrosurgical unit is particularly suitable for:

• Outpatient surgery


• Dermatology


• Dentistry


• Emergency room


• Vascular surgery


• Veterinary medicine

Standard Equipment

The Diatermo MB 80D comes with a complete standard equipment, including:

• 1 disposable handpiece with buttons


• 1 kit of 10 assorted electrodes, 5 cm length


• 1 connection cable for neutral electrode


• 1 neutral electrode in steel 120 x 160 mm


• 1 single waterproof pedal


• 1 power cable 2 m, 3x1 mm

Please note that the bipolar cable and forceps are not included in the standard equipment, allowing the user to choose the model best suited to their needs. The forceps and cables, of German production, are autoclavable and compatible with most electrosurgical units on the market.

Technical Specifications

Here are the technical specifications of the Diatermo MB 80D:

• Maximum cutting power (CUT): 80 W - 250 O


• Maximum cut-coagulation power (BLEND): 60 W - 250 O


• Maximum coagulation power (FORCED COAG): 50 W - 150 O


• Maximum coagulation power (SOFT COAG): 40 W - 100 O


• Maximum bipolar power (BIPOLAR): 30 W - 100 O


• Operating frequency: 600 kHz


• Selectable power supply: 115 – 230 Vac


• Mains frequency: 50-60 Hz


• Maximum power consumption: 230 VA


• Weight: 5 Kg


• Unit dimensions (LxHxD): 254 x 104 x 288 mm


• Safety: compliant with standards EN60601-1, EN60601-1-2, EN60601-2-2


• Electrical classification: I CF; MDD 93/42/EC Class: II b

Choose the Diatermo MB 80D for a professional and safe surgical experience, thanks to its advanced technology and ergonomic features.
