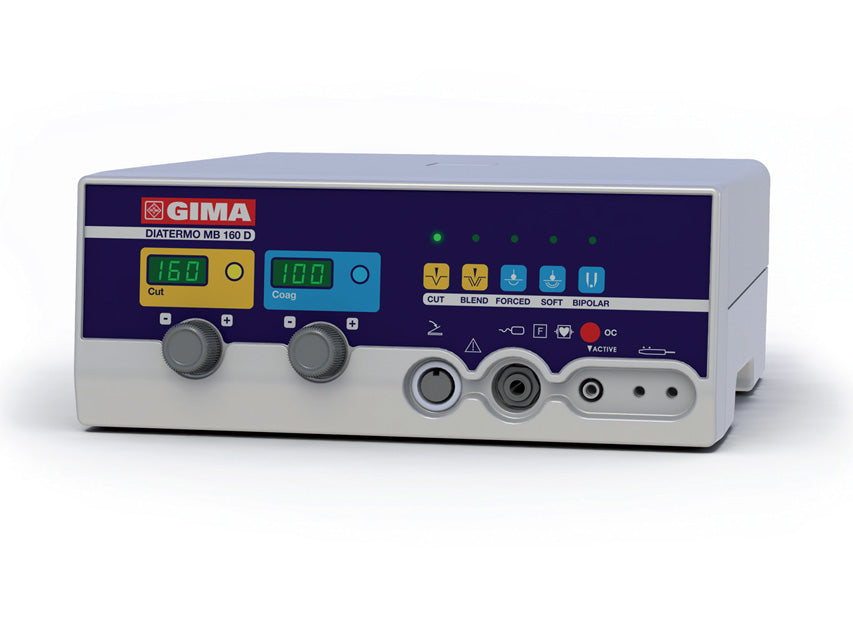

Discover the GIMA MB 160D Electrosurgical Unit, an innovative device designed to ensure high performance in surgical settings. This high-frequency electronic electrosurgical unit is ideal for minor and medium surgery procedures, offering a complete range of functions to meet the needs of industry professionals.

Advanced Functionality

The MB 160D Electrosurgical Unit is equipped with various operating modes that allow surgical procedures to be performed with precision and safety:

• Pure Cut (CUT): Maximum power of 160 W, ideal for clean and precise incisions.


• Coagulated Cut (BLEND): Maximum power of 120 W, for optimal balance between cutting and coagulation.


• Superficial Coagulation (FORCED COAG): Maximum power of 100 W, for rapid and controlled coagulation.


• Deep Coagulation (SOFT COAG): Maximum power of 80 W, for delicate procedures without charring.


• Bipolar Coagulation (BIPOLAR): Maximum power of 60 W, for procedures requiring precise coagulation control.

Technical Features

The MB 160D electrosurgical unit is designed to ensure safe and reliable operation, with the following technical specifications:

• Operating frequency: 600 kHz


• Selectable power supply: 115 - 230 Vac


• Maximum power consumption: 350 VA


• Dimensions: 254 x 104 x 288 mm


• Weight: 5 kg


• Safety: Compliant with EN60601-1, EN60601-1-2, EN60601-2-2 standards


• Electrical classification: I CF; MDD 93/42/EC Class: II b

Ease of Use and Ergonomics

Thanks to the integrated microcontroller, the MB 160D electrosurgical unit offers digital reading of the delivered power and continuous monitoring of operating functions. Furthermore, the ability to:

• Switch functions from the electrode holder handle


• Activate power via foot pedal or handle


• Save the last used settings

make this device extremely versatile and easy to use, allowing surgeons to focus on the operating field without distractions.

Standard Equipment

The MB 160D Electrosurgical Unit comes with complete standard equipment, including:

• Disposable MB handle with 2 buttons for intuitive control


• Waterproof foot pedal (alternative to using the handle)


• Flat plate with cable for secure connection


• Kit of 10 autoclavable electrodes, Ø 2.4 mm for greater convenience

Choose the GIMA MB 160D Electrosurgical Unit for a cutting-edge surgical experience, characterized by precision, safety, and ease of use. This instrument is the ideal choice for professionals who wish to elevate the quality of their surgical procedures.
