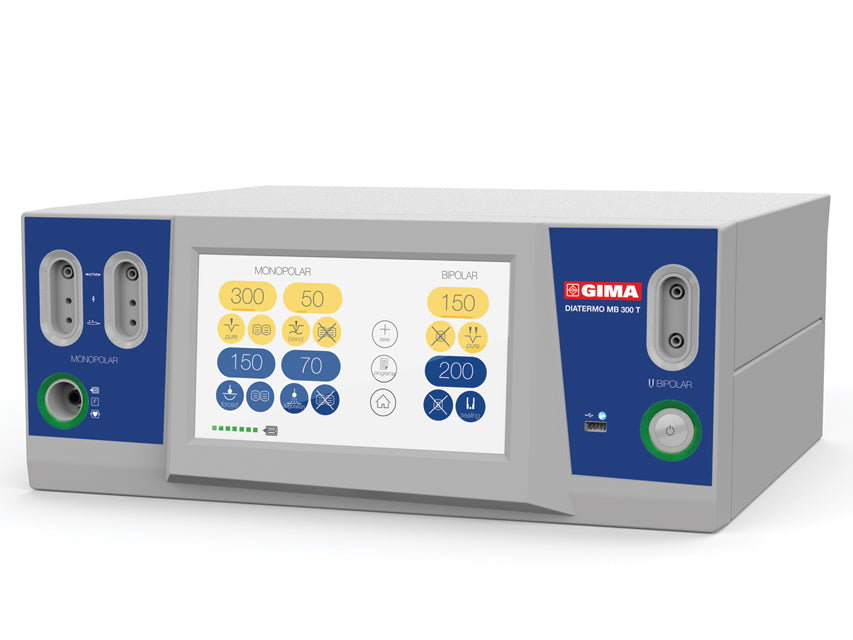

The GIMA MB 300 Touch Electrosurgical Unit is a cutting-edge solution for modern surgery, designed to meet the needs of surgeons and healthcare professionals. Its ability to allow two surgeons to work simultaneously makes this device ideal for complex and collaborative procedures, improving efficiency in the operating room.

Main Features

• Operating Modes: Supports both monopolar and bipolar modes, allowing for a wide range of surgical applications.


• Ease of Use: Initial setup and adjustments during operation are simple thanks to the large 9" touchscreen display.


• Advanced Control: Simultaneous activation of modes, power control based on impedance, and monitoring of the neutral electrode-patient contact.

Performance and Functionality

The MB 300 Touch offers high performance with a maximum power of:

• PURE CUT: 300 W - 300 Ohm


• BLEND: 200 W - 300 Ohm


• FORCED COAG: 120 W - 150 Ohm


• BIPOLAR CUT: 150 W - 100 Ohm


• BIPOLAR SEALING: 250 W - 50 Ohm

With a working frequency of 360 kHz, this electrosurgical unit is designed to ensure precise cutting and effective coagulation, minimizing the risk of bleeding during procedures.

Ergonomic Design and Safety

The design of the MB 300 Touch is intended for an intuitive and logical work environment. The horizontal arrangement of monitors and RGB indicator lights facilitates reading and access to necessary information during the operation. Furthermore, the neutral plate is constantly monitored to ensure patient safety.

Technical Specifications

• Dimensions: 450 x 200 x 420 mm


• Weight: 15.5 kg


• Maximum Power Consumption: 1000 VA


• Selectable Input Voltage: 100-240 Vac


• Safety Certifications: EN60601-1, EN60601-1-2, EN60601-2-2

Clinical Applications

This device is recommended for a wide range of medical specialties, including:

• Dermatology


• Endoscopy


• Gastroenterology


• General Surgery


• Gynecology


• Neurosurgery


• Otorhinolaryngology


• Pediatric Surgery


• Plastic Surgery


• Pneumology


• Urology


• Veterinary Medicine

It can also be used in Orthopedics, Thoracic Surgery, Transurethral Resection (TUR), and Vascular Surgery, making it a versatile tool for any surgeon.

Investing in the MB 300 Touch Electrosurgical Unit means choosing a state-of-the-art device that combines high performance, ease of use, and safety. With its advanced technology and ergonomic design, it is the ideal choice for healthcare professionals seeking to optimize their surgical procedures.
