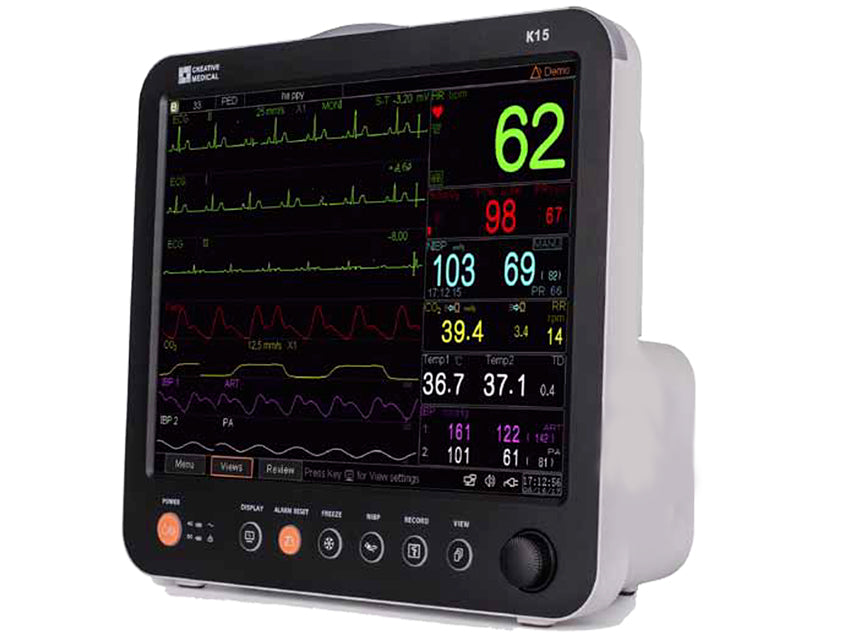

The GIMA K15 Touch Screen multiparameter monitor is an advanced and versatile device designed to monitor the physiological vital signs of adult, pediatric, and neonatal patients. This multifunctional device offers a complete solution for analyzing the patient's physiological condition, thanks to its ability to record and display crucial parameters in real time such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), and temperature (TEMP). In addition, an optional module is available for CO2 monitoring.

Main features of the GIMA K15 Monitor

• Ergonomic design with intuitive user interface


• USB port for data transfer and software updates


• Display of up to 9 traces on on-screen waveforms


• Compatibility with Windows environment, easy to manage


• Visual and audible alarm for physiological and technical abnormalities


• Large memory capacity for data storage


• Compatibility with original Nellcor sensors


• Protection against defibrillator discharges and electrosurgical unit interference


• Detection and inhibition of cardiac pacemaker pulses

Detailed technical specifications

ECG

• Input dynamic range: ±(0.5~5 mVp)


• Input differential impedance: =10 MO


• Bandwidth:



  • 0.05~150 Hz (Diagnostic)


  • 0.5~40 Hz (Monitoring)


  • 1~20 Hz (Operation)






• CMRR:



  • =90 dB (Diagnostic)


  • =105 dB (Monitoring & Operation)






• Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto


• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s


• HR measurement range: 15~350 bpm ±1% or ±2 bpm, whichever is greater


• Pacemaker pulse detection and inhibition function

RESP

• Measurement range: 0~120 rpm ±5% or ±2 rpm, whichever is greater

TEMP

• Measurement range: 21.0~50.0 °C ±0.2 °C between 25~45 °C

NIBP

• Technique: Oscillometric method


• Typical measurement time: <30 seconds (adult cuff)


• NIBP SYS measurement range:



  • 40~275 mmHg (Adults)


  • 40~200 mmHg (Pediatric)


  • 40~135 mmHg (Neonates)






• NIBP DIA measurement range:



  • 10~210 mmHg (Adults)


  • 10~150 mmHg (Pediatric)


  • 10~95 mmHg (Neonates)






• NIBP MAP measurement range:



  • 20~230 mmHg (Adults)


  • 20~165 mmHg (Pediatric)


  • 20~110 mmHg (Neonates)






• NIBP measurement accuracy:



  • Mean difference: ±5 mmHg


  • Standard deviation: 8 mmHg






• NIBP measurement modes: Manual, Auto, STAT, Multi-cycle


• Auto-measurement intervals: 1-480 min

SpO2

• Technique: Dual-wavelength optical method


• Measurement range: 0%~100% ±2% for SpO2 range 70~100%


• PR measurement range: 30~250 bpm ±2 bpm or ±2%, whichever is greater


• Low perfusion performance: Up to 0.3%

CO2 (optional)

• Technique: Infrared optical method


• Sampling mode: Sidestream or Mainstream


• Measurement range: 0~150 mmHg


• Measurement accuracy:



  • 0~40 mmHg ±2 mmHg


  • 41~70 mmHg ±5% of reading


  • 71~100 mmHg ±8% of reading


  • 101~150 mmHg ±10% of reading






• Flow rate: 50 ml/min ±10 ml/min (Sidestream)

Other features

• Power supply: AC 100-240 V, 50/60 Hz, 60 VA


• Built-in lithium battery: 11.1V/4400 mAh


• Screen: 15-inch TFT screen


• Alarm method: 3-level audible-visual alarm


• Network: Ethernet


• Safety standard: IEC 60601-1

Standard equipment

• Adult SpO2 probe


• Adult NIBP cuff


• SpO2 extension cable


• ECG cable


• Skin temperature probe


• Power cord


• Rechargeable lithium battery


• Dust cover


• Disposable electrode


• Manual: GB, FR, IT, ES, PL, RU

The GIMA K15 Touch Screen multiparameter monitor is the ideal choice for hospitals, clinics, and healthcare facilities that need a reliable and accurate device for continuous patient monitoring. Thanks to its many functions and ease of use, it represents a safe investment to improve the quality of care provided.
