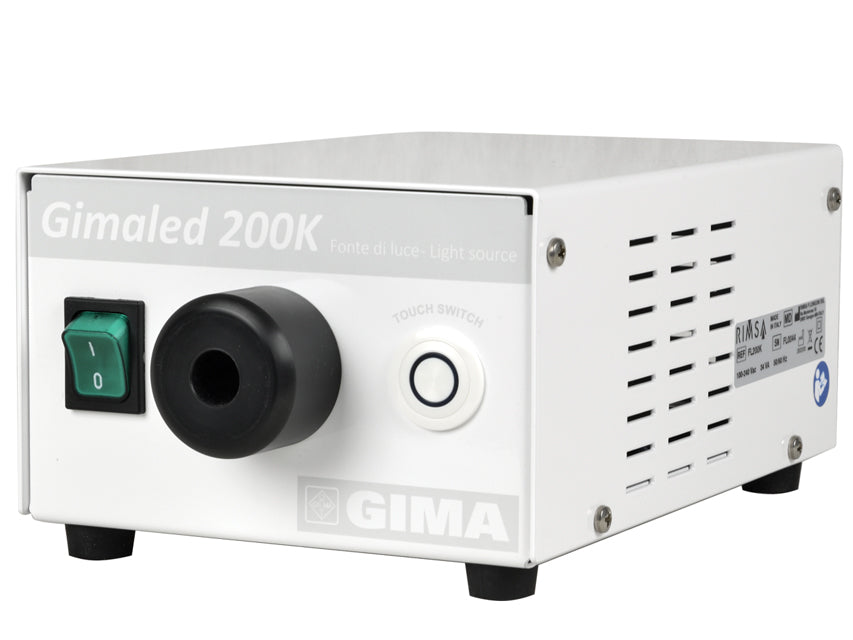

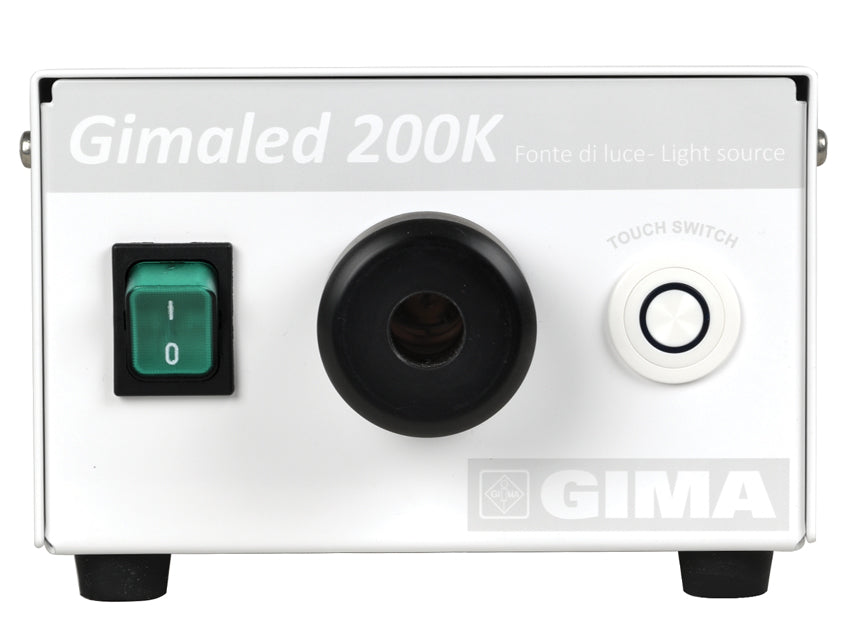

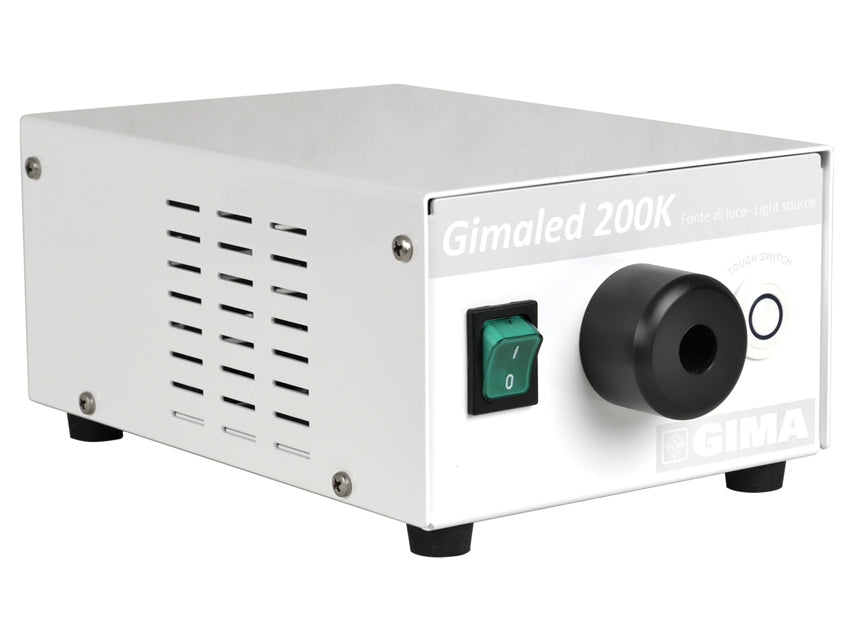

The GIMA brand Gimaled 200K Light Source for endoscopic instruments is an advanced solution for medical lighting. This electromedical equipment is designed to ensure optimal illumination during endoscopic procedures, complying with IEC 62353 standard. With a combination of high efficiency and durability, the Gimaled 200K represents an excellent choice for industry professionals.

Technical Characteristics of the Gimaled 200K Light Source

The Gimaled 200K offers exceptional performance thanks to its advanced technical specifications:

• Illuminance at 2.5 cm: 147,000 lux


• Color temperature: 5,000 K


• Color Rendering Index (CRI): 89


• Rg: 54


• Maximum irradiance: 488 W/sqm


• Irradiance / Illuminance: 3.32 mW/sqm x

Electrical Connection Data

The Gimaled 200K light source is designed to be versatile and compatible with various electrical configurations:

• Primary AC voltage: 100-240 V


• Frequency: 50/60 Hz


• Power consumption: max 18W


• Light source: 16 LEDs


• LED lifespan: 60,000 hours


• Light intensity control: 4-100%

General Data

The Gimaled 200K complies with various regulations and standards, ensuring safety and reliability:

• Regulation: 2017/745


• Medical Device Class I


• IEC 60601-1 Classification: Class II


• Color: RAL 9003


• IP Classification: IP20


• Operating conditions: continuous operation


• Electrical isolation means: built-in power plug

Dimensions and Weight

The Gimaled 200K light source is compact and lightweight, facilitating transport and installation:

• Weight: 3 kg


• Dimensions: 27 x 17 x 11 cm

Standard Equipment

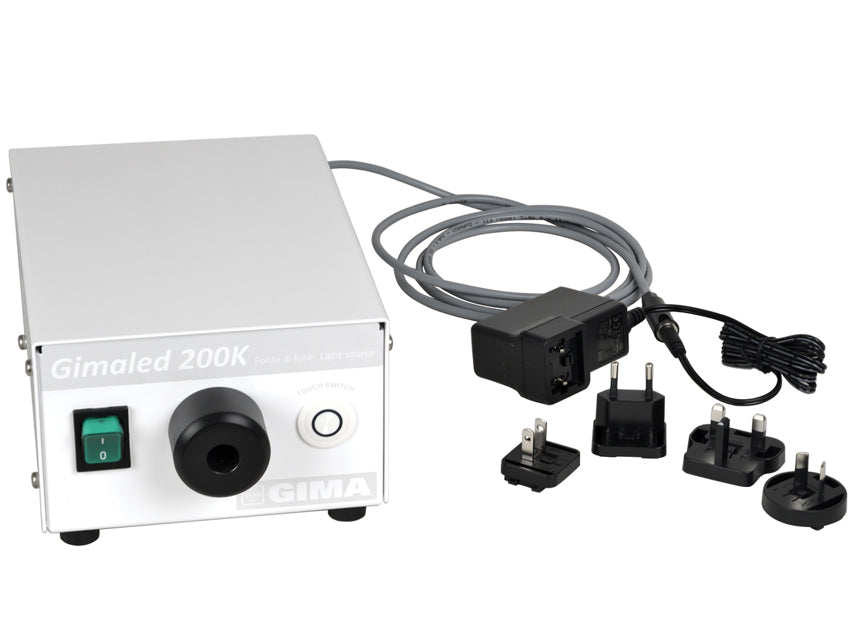

The Gimaled 200K package includes everything needed for immediate use:

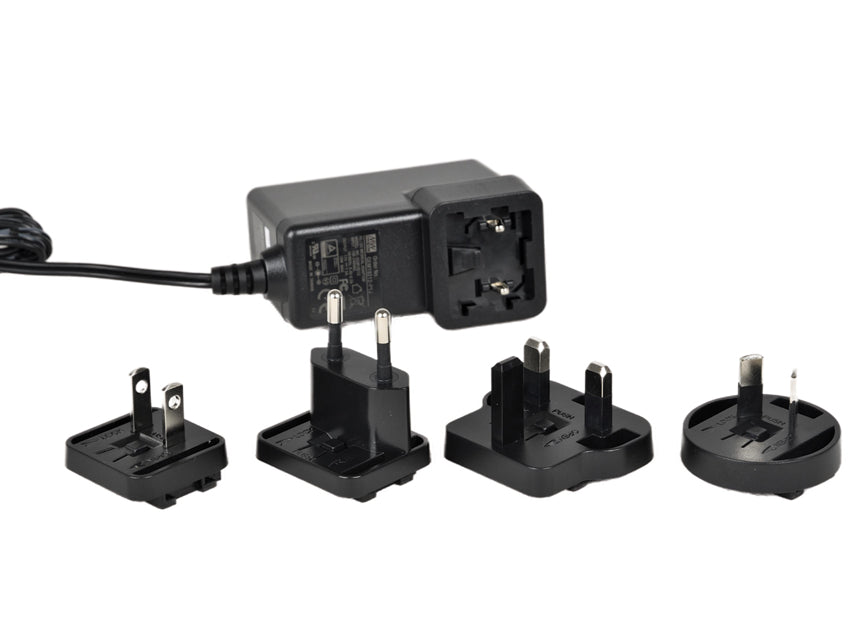

• Power cable with adapters for various plugs

Choose the GIMA Gimaled 200K Light Source for endoscopic instruments and ensure you have reliable, high-quality lighting for all your medical procedures.
