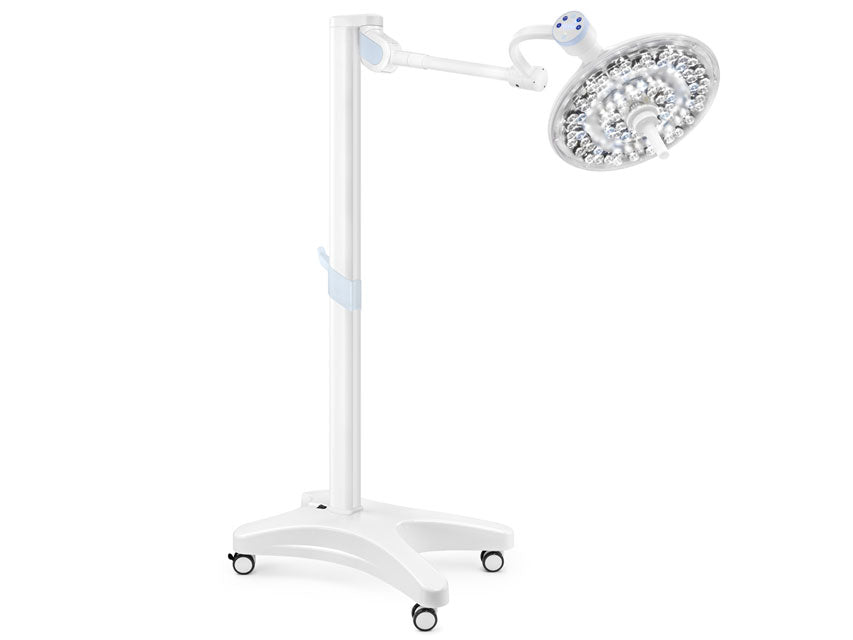

The Gimaled surgical light with trolley and battery pack from the GIMA brand is an advanced lighting solution, designed to meet the needs of medical professionals. Equipped with 81 LEDs, this lamp provides intense, shadow-free illumination, ensuring optimal visibility during surgical operations and other medical procedures.

Main Features of the Gimaled Surgical Light

Intense and Adjustable Lighting

The Gimaled lamp is equipped with 27 fixed LEDs for central illumination and 54 LEDs (six modules of 9 LEDs each) moved by a servo motor, allowing the doctor to adjust the diameter of the visual field. This advanced system makes it possible to obtain intense light with an intensity of 160,000 Lux.

Shadow-Free Light

Thanks to the circular arrangement of the 81 LEDs, the lamp eliminates shadows caused by obstructions between the light beam and the illuminated surface. This ensures clear, distortion-free visibility.

Light Color Selection

The lamp offers two color temperature options: 4,000 K and 4,600 K, made exclusively of white LEDs. This makes it possible to choose the light tone best suited to the specific needs of the procedure, without colored shadow effects.

Technical Specifications

• Light intensity at a distance of 1 m (Ec): Klx 160


• Color rendering index (CRI): Ra 95


• Ø of the light field (electronically adjustable): 11-35 cm


• Average LED life: 50,000 hours


• Mains voltage: 100-240 V - 50-60 Hz - 61-71 W


• Standards: IEC 60601-2-41 - 93/42/EEC


• Italian manufacturing

Advantages of the Gimaled Surgical Light

• Collimated light beam for a working distance from 70 to 160 cm


• High color rendering index (CRI) 95, R9>90


• Optimized thermal management of the LEDs through heat dissipation to avoid risks of reduced illumination during operations


• PMMA optical lenses and polycarbonate protective screen


• Zener: ensures light even in the event of a LED failure


• Low consumption, high efficiency


• Wi-Fi camera preparation available on request

Conclusion

The Gimaled surgical light with trolley and battery pack by GIMA is an excellent choice for medical professionals who need reliable, intense, shadow-free lighting. With its advanced features and Italian manufacturing, this lamp guarantees high-level performance and long-lasting durability.
