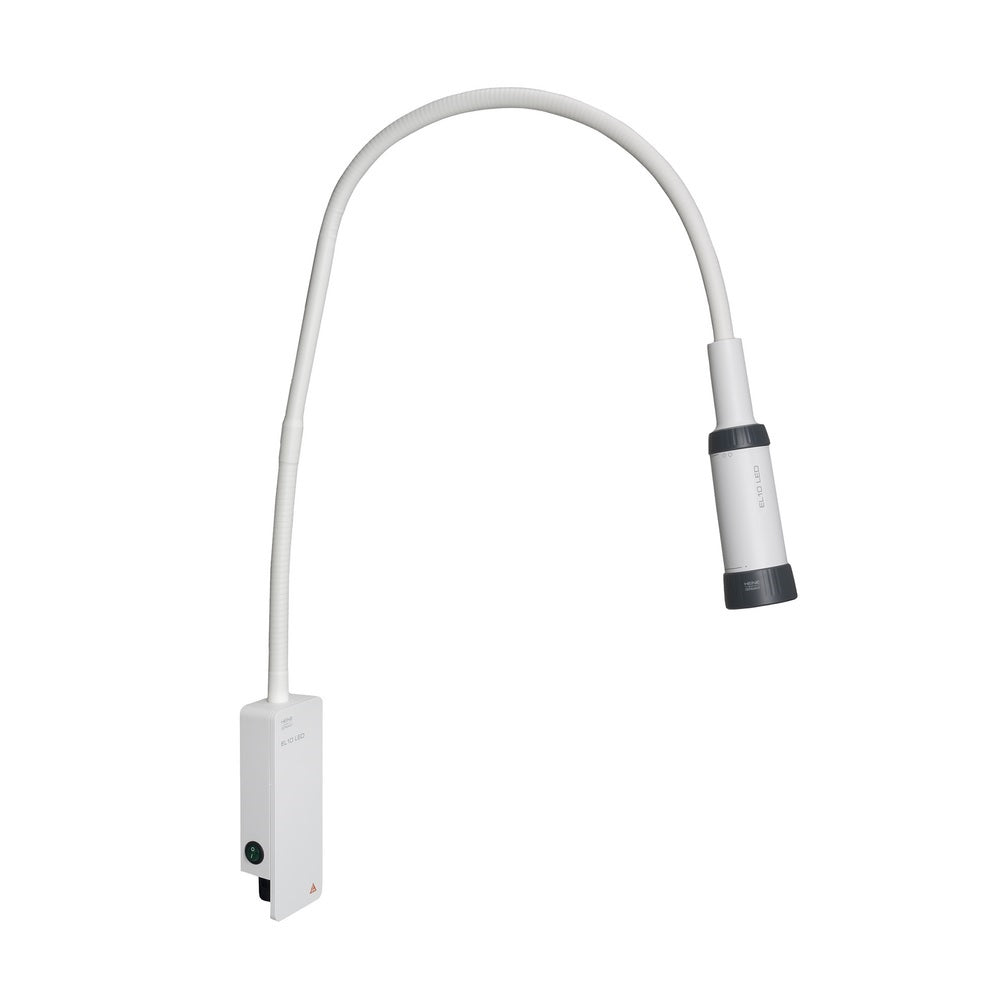

The Heine EL 10 LED examination lamp - wall-mounted is an advanced lighting solution, designed to provide bright, even light, ideal for minor surgery, general medicine and dermatology. This examination lamp combines stability and flexibility with a compact, modern design, making it a perfect addition to any medical environment.

Main Features of the Heine EL 10 LED Examination Lamp

Continuous Adjustment

The light intensity of the Heine EL 10 LED can be continuously adjusted between 6,500 and 45,000 lux, allowing the brightness to be adapted to the specific needs of each situation. The spot size can be adjusted between 8.5 and 14 cm, ensuring optimal illumination at a working distance of 30 cm.

Ingenious One-Handed Adjustment

Thanks to the controls on the ergonomic handle, both brightness and spot size can be intuitively and quickly adjusted with one hand. This user-friendly design makes it possible to stay focused on the patient without interruptions.

Compact and Modern Design

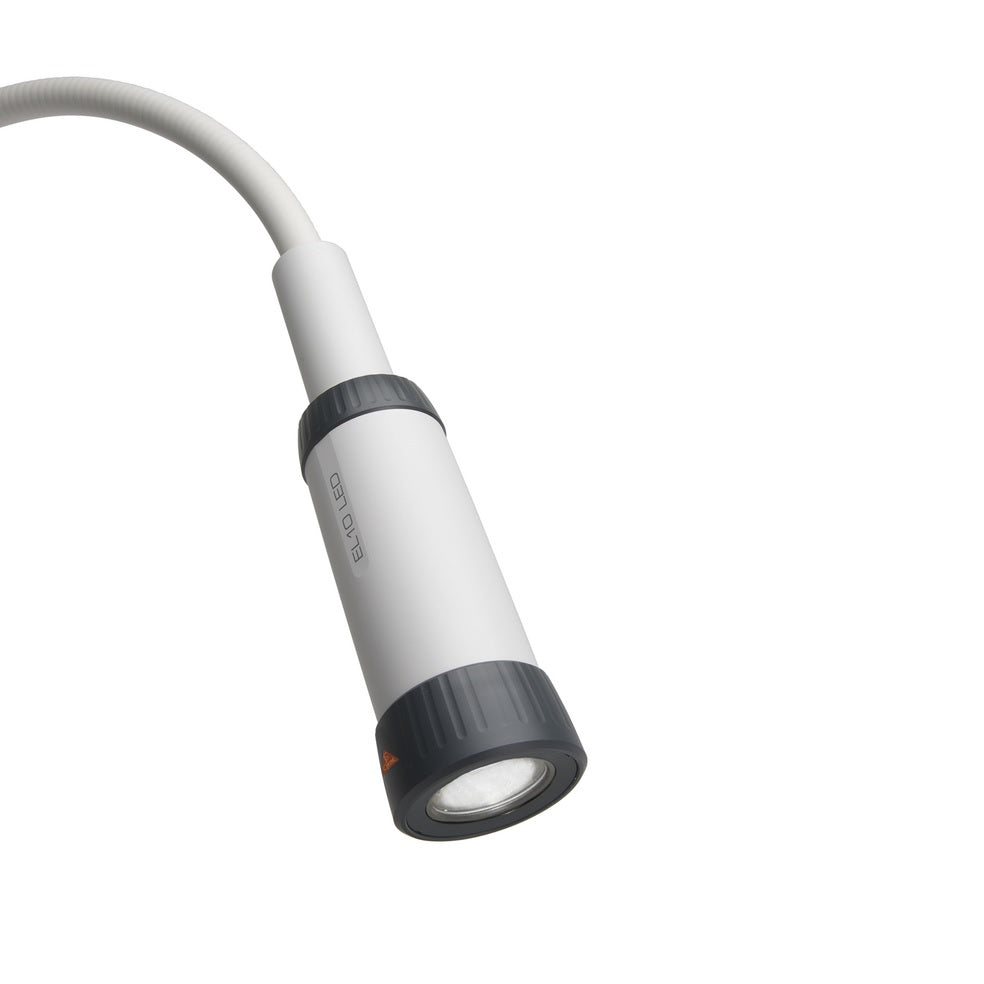

The compact lighting head, with a diameter of about 60 mm, allows for almost coaxial illumination, particularly useful in difficult situations. The clean, modern design blends harmoniously into any clinical environment.

Light Intensity and Uniformity

Light quality is essential for detecting even the smallest abnormalities. The Heine EL 10 LED uses a precision optical system with three specially aligned lenses, providing an absolutely uniform and well-focused illuminated field. The use of high-quality LEDs guarantees a color rendering index (CRI) above 85, without altering colors.

Thermal Management and Durability

The lamp's aluminum structure effectively dissipates heat, preventing overheating and ensuring consistent performance throughout the LED lifespan, which can reach up to 30,000 hours. This ensures a long operating life without the need for regular maintenance.

Flexible Arm

The spiral, flexible gooseneck allows the lamp to be easily positioned as desired, offering maximum versatility and comfort during use.

Easy Disinfection

The hermetically sealed lighting head allows easy and efficient cleaning and disinfection, maintaining high hygiene standards.

Technical Specifications

• Type: LED


• Maintenance: Does not require regular maintenance


• Control light: Yes


• Light intensity: = 45,000 lx (the smallest light field at 0 cm working distance)


• Color temperature: 3,000 - 3,250 K


• Illuminated field: (large spot) distance 300 mm (front of the housing) Ø 85 mm ± 5 mm


• Illuminated field: (small spot) distance 300 mm (front of the housing) Ø 140 ± 10 mm


• Quality of the illuminated field: Round, uniform illumination


• Focusability: Yes


• Average life expectancy: approx. 30,000 h


• Operating hours: Continuous operation


• Working distance: 300 mm between front of the housing and patient


• Color rendering: Ra = 90, R9 = typ. 58

The Heine EL 10 LED examination lamp is an excellent choice for healthcare professionals who need precise, reliable and versatile lighting. With its combination of advanced technology and ergonomic design, this lamp significantly improves the daily working experience.
