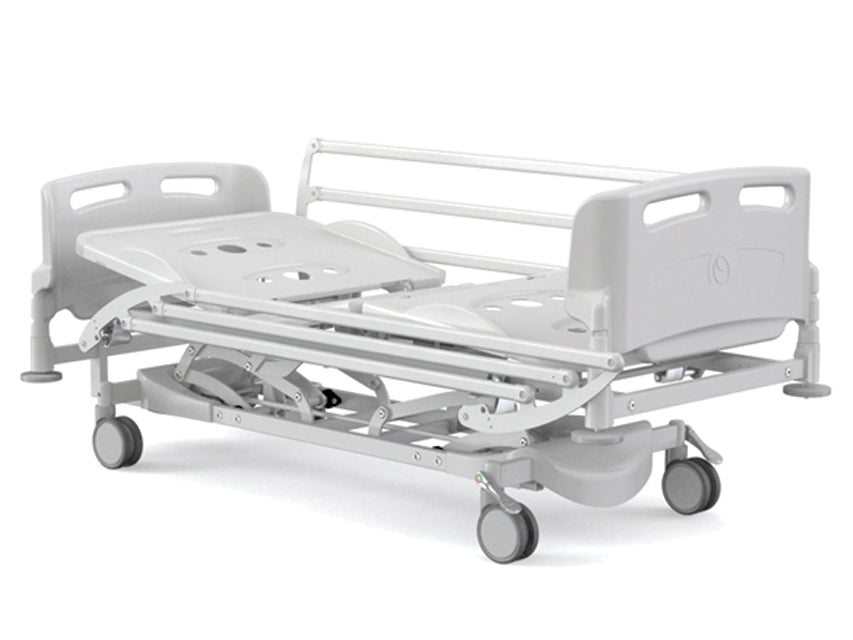

ELECTRIC BED WITH VARIABLE HEIGHT - scissor side rail


Hospital bed with 3 joints and 4 sections, with electric height and platform adjustment, Trendelenburg and Reverse Trendelenburg positions (15°). All steel parts are coated with epoxy powders. Back section adjustable with electric actuator with anti-crush function and rotation/translation to avoid abdominal compression. RCP handles are present on both sides of the bed for emergency maneuvers. Leg section adjustable by snap mechanism in 6 positions. Remote control to maintain or deactivate the position. The control panel adjusts the backrest, the height of the mattress platform, the leg and foot sections, the comfort position, TR and RTR.

Made in Italy.

Technical specifications

•
  Bed weight: 140 kg



•
  Dimensions: 110x225xh 91 cm



•
  Wheels: 4 wheels Ø 150 mm with centralized braking system with directional control



•
  Compartment: for patient lift pole and IV pole



•
  Min/max mattress platform height: 380-780 mm



•
  Max backrest adjustment: 71°



•
  Max leg/foot section adjustment: 30°



•
  Trendelenburg/Reverse Trendelenburg: 15°



•
  Min/max height: 835-1245 mm



•
  Max total width/length: 1010/2260 mm (with bumpers and side rails)



•
  Useful mattress platform width/length: 880/2000 mm



•
  Power supply: 160-230 V - 50-60 Hz



•
  Max load: 270 kg



•
  IEC protection class: I / B



•
  IP code (protection rating): IP66
