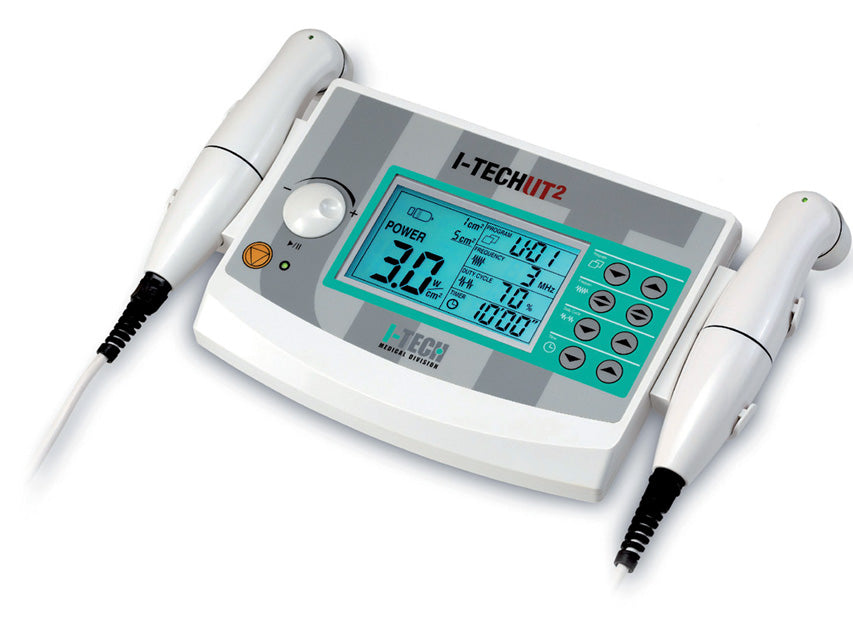

I-TECH UT2 ULTRASOUND THERAPY - 2 probes

Professional ultrasound therapy device equipped with a double handpiece with 5 cm2 and 1 cm2 probes. This equipment, together with parameter storage, makes it an ideal device for the professional operator.

It is equipped with 10 preset programs, for which the professional can independently vary the following operating parameters:
- frequency (1 or 3 MHz)
- effective power (up to 3 W/cm2)
- Duty cycle (10% ÷ 100% in steps of 10)
- therapy time (up to 30 minutes)

APPLICATIONS:
  Tendinitis - Bursitis - Capsulitis - Organized hematomas and scar tissue - Muscle contractures/cramps - Neuralgia - Periarthritis - Neck pain - Sciatica/lower back pain
  - Carpal tunnel - Epicondylitis/epitrochleitis - Contusions - Sprains - Chondropathies
  - Massage - Cavitation arms/abdomen/legs/buttocks - Acne.


Technical specifications

• Operating voltage: 100-240 V, 47/63 Hz, 1.35 A, output
15 V 3A max
• Ultrasound frequency:
- 1 MHz ± 10%
- 3 MHz ±
10%
• Power:
- 0.5 W - 10 W ± 20% with duty cycle = 80% on
5 cm2
- 0.5 W - 15 W ± 20% with duty cycle = 70% on 5 cm2
- 0.1 W
- 2 W ± 20% with duty cycle = 80% on 1 cm2
- 0.1 W - 3 W ± 20% with duty cycle = 70% on 1 cm2
• Effective power:
- 3 W/cm2 ± 20% (1
MHz)
- 3 W/cm2 ± 20% (3 MHz)
• Frequency modulation: 100 Hz
•
Duty cycle: 10%-100% in 10% steps
• Maximum settable time
30 minutes
• Effective irradiated area:
- 5 cm2 ± 20%
- 1 cm2
± 20%
• Collimated ultrasound beam
• Head (material)
aluminum
• Suitable for external use and immersion
• LED
indicator
• Dimensions: 250 x 185 x 82 mm


Standard equipment

•
1 handpiece with a 5 cm2 head
• 1 handpiece with a 1
cm2 head
• 1 power cable
• 1 power cable 15
V, 3 A
• 1 ultrasound therapy gel
• 1 user manual: GB,
IT, ES, FR
