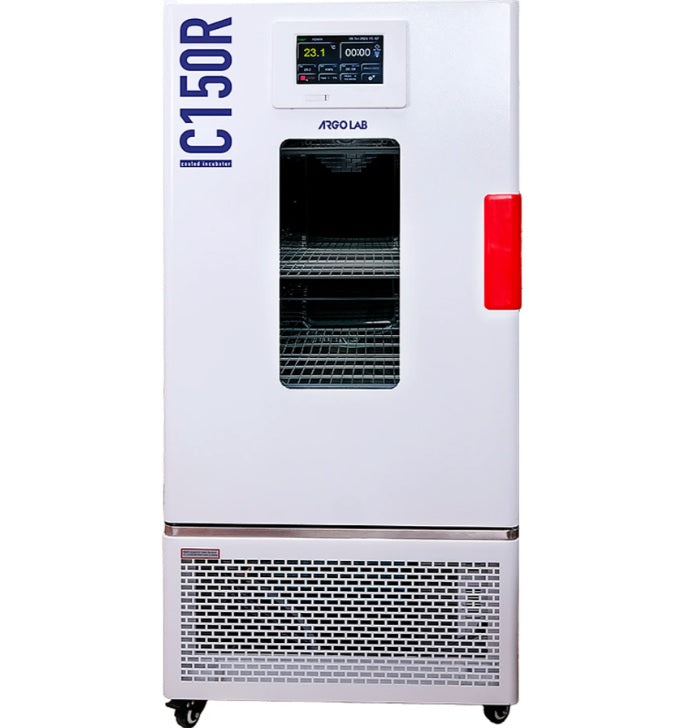

Refrigerated Incubator IC 150 R NEW with Forced Ventilation

Description

The Refrigerated Incubator IC 150 R NEW by ArgoLab is designed to ensure precise temperature control from 0°C to 60°C, making it ideal for laboratory applications that require both heating and refrigeration. Equipped with a 7-inch color touchscreen display, advanced data logging, multi-user management and temperature ramp function, it offers high flexibility for scientific and industrial applications.

Main features

•
  Working range: 0°C … +60°C



•
  7-inch color touchscreen display for an intuitive and advanced interface



•
  Advanced programming:



  •
    8 storable programs with 8 steps each



  •
    Single-step basic program



  •
    Multi-step program up to 64 steps



  •
    Program with temperature, time and ventilation speed settings







•
  Integrated refrigeration system with refrigerant gas R1234ZE


Advanced functions

•
  Simultaneous display of all operating parameters



•
  Visual and acoustic alarms that can be silenced by the operator



•
  Digital timer: from 1 minute to 99 hours and 59 minutes, with continuous operation option



•
  Delayed start to schedule the start of the heating cycle



•
  Safe temperature function for sample protection



•
  Working data logging: up to 200,000 values, downloadable to USB in CSV or PDF format



•
  Temperature ramp function for specialized applications



•
  Graphical display of temperature trend



•
  Multi-user management with 3 authorization levels



•
  Safety class 3.1 (DIN 12880)


Structure and Design

•
  Steel outer door with large glass window and internal light for sample observation



•
  Side pass-through port Ø 25 mm for insertion of external temperature control sensors



•
  Stainless steel chamber with rounded corners for easier cleaning



•
  Anti-tip supports and shelves completely removable


Technical data

•
  Capacity: 150 liters



•
  Maximum shelf load: 10 kg



•
  External dimensions (W x D x H): 650 x 620 x 1350 mm



•
  Internal dimensions (W x D x H): 500 x 360 x 800 mm



•
  Weight: 100 kg



•
  Power consumption: 1100 W



•
  Frequency: 50 - 60 Hz



•
  Power supply: 230 V


Performance and Safety

•
  Heating time at 25°C: 40 minutes



•
  Temperature variation at 25°C: ± 0,1°C



•
  Temperature uniformity at 25°C: ± 0,5°C



•
  Overtemperature safety system: electronic and electromechanical


Standard equipment

•
  Grated steel shelves:



  • 2 shelves for IC 50-P


  • 3 shelves for IC 150-R






•
  Calibration report at 25°C with traceable Accredia reference instrument



•
  USB flash drive for data logging and transfer


Reference standards

Complies with directives 2006/95/EC, 2004/108/EC, EN61326-1:2006, EN61010-1:2010, EN61010-2-010:2003

The Refrigerated Incubator IC 150 R NEW is a versatile and technologically advanced solution, perfect for laboratories that need precise incubations, a wide temperature range and advanced data logging and analysis functions.
