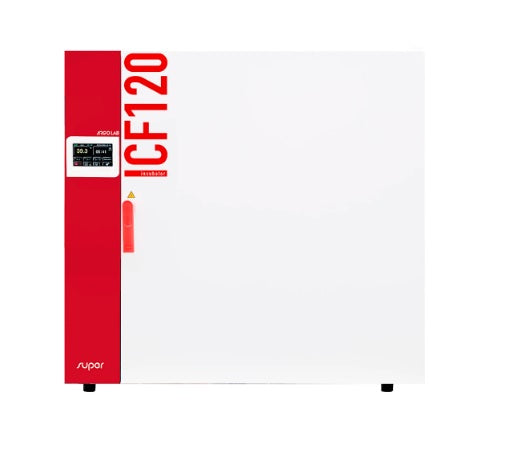

ICF 120 SUPER NEW Forced Ventilation Incubator

Description

The ICF 120 SUPER NEW forced ventilation incubator by ArgoLab offers advanced performance and maximum precision in temperature control, with a 4-inch color touchscreen display, multi-user management and detailed data logging. Equipped with advanced programs, temperature ramps and graphical display, it is ideal for laboratories that need a highly technological and efficient unit.

Main features

•
  Operating range: +5°C Ta … +80°C



•
  4-inch color touchscreen display for an intuitive interface



•
  Advanced programming:



  •
    8 programmable programs with 8 steps each



  •
    Basic single-step program



  •
    Multi-step program up to 64 steps



  •
    Special program for sterilization at 130°C







•
  Adjustable ventilation on three levels:



  • High = 100%


  • Medium = 75%


  • Low = 50%






•
  Data logging and alarms:



  •
    Up to 200,000 values can be stored



  •
    Data download via USB flash drive



  •
    Alarm and operation history







•
  Advanced functions:



  •
    Temperature ramps for specialized applications



  •
    Graphical display of the temperature trend



  •
    Multi-user management with three authorization levels






Safety and performance functions

•
  Simultaneous display of all operating parameters



•
  Visual and acoustic alarms can be silenced by the operator



•
  Digital timer: from 1 minute to 99 hours and 59 minutes, with continuous operation



•
  Delayed start to schedule the start of the heating cycle



•
  Safe temperature function for sample protection



•
  Sterilization cycle at 130°C for a maximum of 10 minutes



•
  Energy efficiency: reduced heating times and low energy consumption



•
  Safety class 3.1 (DIN 12880): fluid-expansion maximum temperature controller


Structure and Design

•
  Double door with glass inner door for observing samples without heat loss



•
  Ø 5 mm pass-through hole for inserting an external sensor



•
  Stainless steel chamber with rounded corners for easier cleaning



•
  Anti-tip supports and shelves completely removable



•
  Door switch to facilitate loading and unloading of samples


Technical data

•
  Capacity: 120 liters



•
  Maximum shelf load: 20 kg



•
  External dimensions (W x D x H): 810 x 760 x 750 mm



•
  Internal dimensions (W x D x H): 520 x 435 x 530 mm



•
  Weight: 74 kg



•
  Power consumption: 600 W



•
  Frequency: 50 - 60 Hz



•
  Power supply: 230 V


Performance and Safety

•
  Heating time at 37°C: 40 minutes



•
  Temperature variation at 37°C: ± 0.1°C



•
  Temperature uniformity at 37°C: ± 0.4°C



•
  Overtemperature safety system: electronic and electromechanical


Standard equipment

•
  Grated steel shelves:



  •
    2 shelves for models up to 55 liters



  •
    3 shelves for larger models







•
  Calibration report at 37°C with traceable Accredia reference instrument



•
  USB flash drive for data logging and transfer


Reference standards

Complies with directives 2006/95/EC, 2004/108/EC, EN61326-1:2006, EN61010-1:2010, EN61010-2-010:2003

The ICF 120 SUPER NEW Incubator is the perfect choice for those who need a precision unit with advanced temperature control functions, ensuring reliability, safety and energy efficiency.
