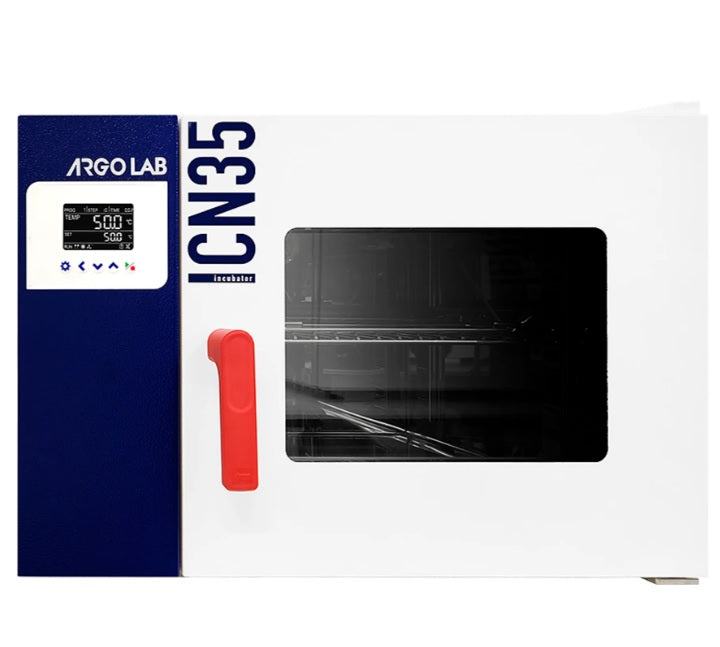

ICN 35 NEW Natural Convection Incubator

Description

The ICN 35 NEW natural convection incubator by ArgoLab is designed to ensure precise temperature control, ideal for laboratories that require stable and uniform incubation without the use of forced ventilation. The large glass viewing door allows samples to be observed without heat loss. The USB data logging system, advanced programming features, and energy efficiency make it a reliable and versatile solution for laboratory applications.

Main features

•
  Operating range: +5°C Ta … +70°C



•
  Backlit LED display for clear viewing of parameters



•
  Data logging and download via USB flash drive



•
  Advanced programming:



  •
    8 programmable programs with 8 steps each



  •
    Single-step basic program



  •
    Multi-step program up to 64 steps







•
  Natural convection heating system, ideal for delicate incubations


Advanced functions

•
  Simultaneous display of all operating parameters



•
  Visual and acoustic alarms that can be silenced by the operator



•
  Digital timer: from 1 minute to 99 hours and 59 minutes, with continuous operation



•
  Delayed start to program the start of the heating cycle



•
  Safe temperature function for sample protection



•
  Work data logging: up to 2167 values, with USB download capability



•
  Energy efficiency: low consumption and reduced heating times



•
  Safety class 2 (DIN 12880)


Structure and Design

•
  Large glass viewing door for observing samples without heat loss



•
  Ø 5.5 mm pass-through hole for inserting an external sensor



•
  Stainless steel chamber with rounded corners for easier cleaning



•
  Anti-tip supports and shelves fully removable


Technical data

•
  Capacity: 35 liters



•
  Maximum shelf load: 7.5 kg



•
  External dimensions (W x D x H): 620 x 510 x 440 mm



•
  Internal dimensions (W x D x H): 360 x 320 x 300 mm



•
  Weight: 33 kg



•
  Power consumption: 125 W



•
  Frequency: 50 - 60 Hz



•
  Power supply: 230 V


Performance and Safety

•
  Heating time at 37°C: 22 minutes



•
  Temperature variation at 37°C: ± 0.3°C



•
  Temperature uniformity at 37°C: ± 0.4°C



•
  Overtemperature safety system: electronic


Standard equipment

•
  Gridded steel shelves:



  •
    2 shelves for models up to 55 liters



  •
    3 shelves for larger models







•
  Calibration report at 37°C with traceable reference instrument Accredia



•
  USB flash drive for data logging and transfer


Reference standards

Compliant with directives 2006/95/EC, 2004/108/EC, EN61326-1:2006, EN61010-1:2010, EN61010-2-010:2003

The ICN 35 NEW Incubator is the ideal choice for laboratories that require precise and efficient incubation, with a simple interface and advanced data logging features.
