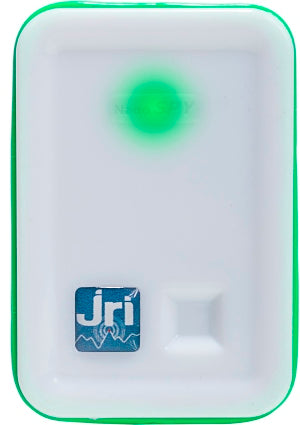

MARCONI NANO T1 Data Logger Temp s/display (-40°C...+85°C)

The Marconi Nano T1 data logger is designed for environmental or transport monitoring, ensuring reliable performance and optimal data management.
Compact and robust, it records up to 10,000 measurements and automatically transmits data via 2.4 GHz radio communication. Data are accessible in real time through the MySirius software, in the cloud or locally.

Main features

•
  Storage of up to 10,000 measurements



•
  Automatic data transmission to Nano Link via 2.4 GHz radio communication



• Real-time threshold alarms


•
  Multicolor LED (red, green, blue) to indicate alarm status



•
  Integrated magnetic mounting system and wall bracket included



• Powered by replaceable 3.6V lithium battery


•
  IP68 protection, ideal for harsh environments


Technical specifications

•
  Sensor: internal PT100 Class A



•
  Temperature measurement range: -40°C ... +85°C



•
  Accuracy: ± 0.4°C (-20°C ... +40°C) / ± 0.5°C (beyond)



•
  Resolution: 0.01°C



•
  Memory: 10,000 measurements



•
  Recording interval: from 1 minute to 24 hours



•
  Communication frequency: 2.4 GHz (802.15.4)



•
  Battery life: 1-4 years



•
  Protection rating: IP68



•
  Dimensions: 62 x 43 x 25 mm



•
  Weight: 0.06 kg


Advantages

• Suitable for transport monitoring


• Easy visual recognition of status via LED


•
  Polycarbonate case material, suitable for food contact



• Fast response time: ~10 min at 90% of the change

Compliance

The Marconi Nano T1 complies with CE, RoHS, FCC, ETS 300-328 and EN 12830 regulations, ensuring safety and reliability in every use.
