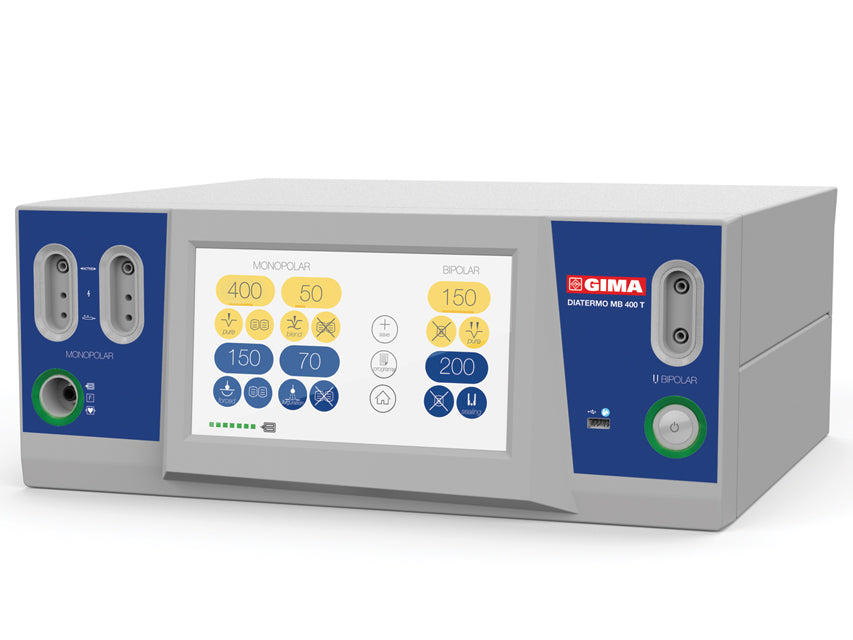

Discover the GIMA MB 400 Touch Electrosurgical Unit, a state-of-the-art device designed to meet the needs of modern surgeons. This innovative radiofrequency generator allows two surgeons to work simultaneously, optimizing intervention times and improving operating room efficiency.

Main Features

• Operating Modes: Usable in monopolar and bipolar modes, ideal for microsurgery and precision surgery.


• Ease of Use: The intuitive interface and the large 9" touchscreen allow for quick configuration without the need for prior training.


• Advanced Performance: Simultaneous activation of monopolar and bipolar modes, power control based on impedance, and cutting and sealing functions for blood vessels up to 7 mm.

Ergonomic and Intuitive Design

The sleek, flat design of the MB 400 Touch Electrosurgical Unit not only enhances the operating room's aesthetics but also facilitates cleaning. The horizontal arrangement of monitors and RGB indicator lights provides a clear and easily readable view, making the work environment even more intuitive.

Advanced Functionality

• Neutral Electrode Control: Constant monitoring of the contact between the patient and the neutral electrode to ensure maximum safety.


• Handpiece Activation: Ability to activate power delivery directly from the handpiece, keeping the focus on the surgical field.


• Intuitive Software: Customization and saving of work settings with a simple touch, for optimal management of the device's functions.

Clinical Applications

Recommended for a wide range of surgical specialties, the MB 400 Touch Electrosurgical Unit is ideal for:

• Gastroenterology


• General Surgery


• Neurosurgery


• Orthopedics


• Pediatric Surgery


• Plastic Surgery


• Thoracic Surgery


• Transurethral Resection (TUR)


• Urology

Also usable in:

• Dermatology


• Endoscopy


• Gynecology


• Otorhinolaryngology


• Pulmonology


• Vascular Surgery


• Veterinary Medicine

Technical Specifications

• Maximum Power: PURE CUT: 400 W, BLEND: 250 W, ENHANCED: 250 W, FORCED COAG: 150 W, SOFT COAG: 150 W, FULGURATION: 100 W, BIPOLAR TUR: 300 W, BIPOLAR CUT: 150 W, BIPOLAR COAG: 150 W, BIPOLAR SEALING: 250 W.


• Operating Frequency: 360 kHz


• Dimensions: 450 x 200 x 420 mm


• Weight: 15.5 kg


• Safety: Complies with EN60601-1, EN60601-1-2, EN60601-2-2 standards, Electrical Class: I CF, MDD 93/42/EEC Class: II b.

Standard Equipment

• Flexible steel neutral plate with cable


• 5 m power cable


• Reusable handpiece with switches


• Waterproof foot switch MB


• 3 blade electrodes - 16 cm


• 3 blade electrodes - 7 cm


• 3 ball electrodes Ø 4 - 6 cm

Invest in cutting-edge surgical technology with the GIMA MB 400 Touch Electrosurgical Unit and improve the efficiency and safety of your surgical interventions.
