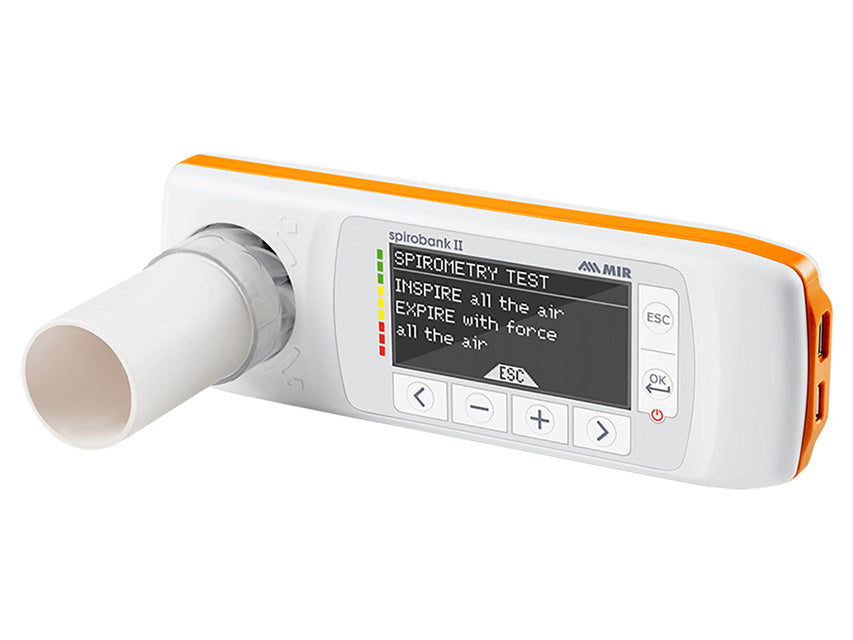

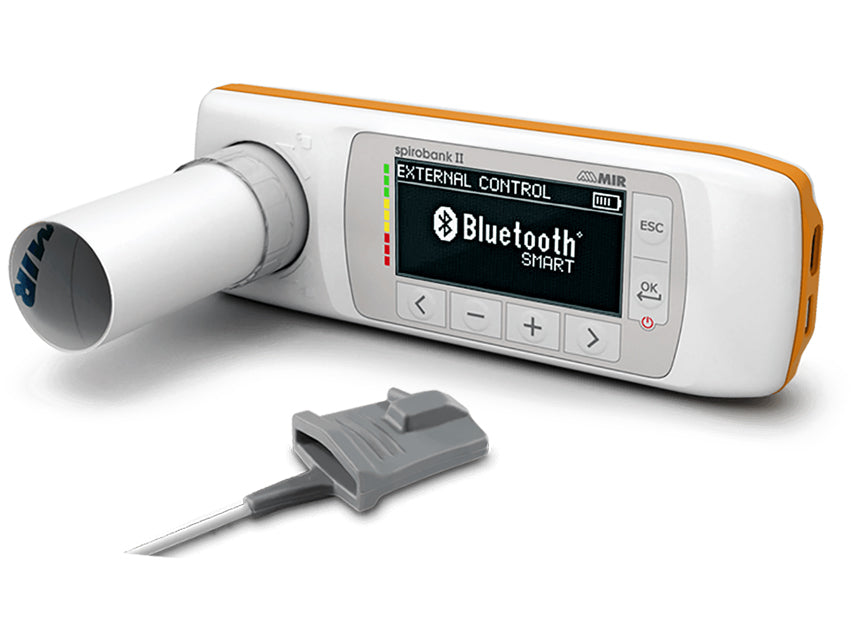

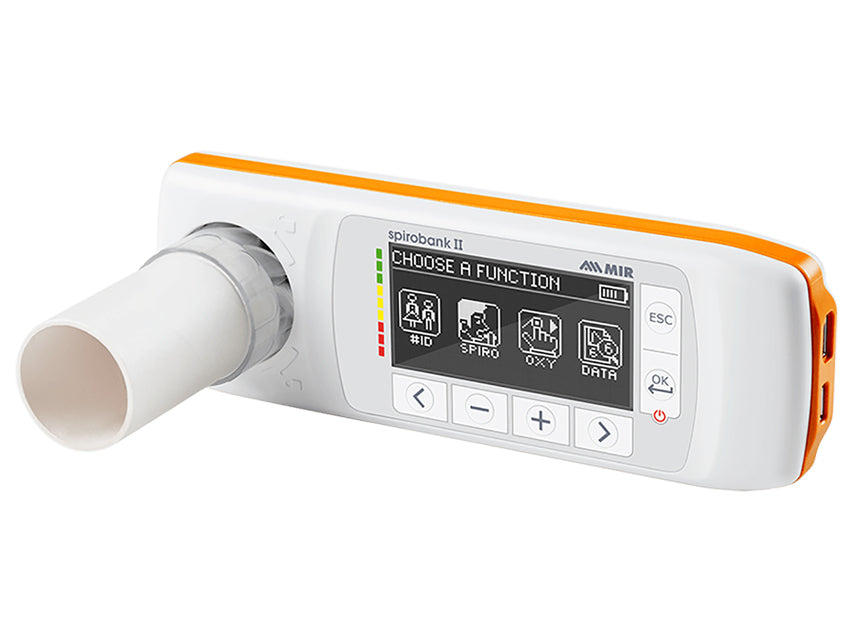

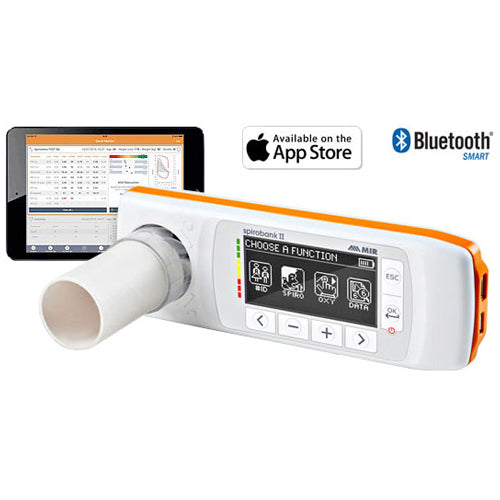

Mir Spirobank II Smart Spirometer + SPO2 + Software - The Complete Solution for Your Respiratory Health


The Mir Spirobank II Smart Spirometer is an advanced multifunction device, ideal for monitoring respiratory and cardiac health. This model is equipped with an integrated oximeter that allows the recording of over 300 hours of oximetry tests, measuring crucial parameters such as oxygen saturation (% SpO2) and pulse rate.

Main Features of the Oximeter

•
  Recording of over 300 hours of oximetry tests (% SpO2 and pulse rate)



•
  Measured parameters: % SpO2 min, max and average, % pulse min, max and average



•
  SpO2 events, test duration, bradycardia events (<40 BPM), tachycardia events (>120 BPM)



• T90% (time with SpO2 = 89%), T89% (time with SpO2 = 88%)

Advanced Spirometer Functions

• Memory capacity of 10,000 spirometry tests


• High-resolution monochrome LCD display


• 6-key membrane keyboard


•
  Lithium battery power supply (3.7 V - 1100 mA) for approximately 50 hours of continuous use



• Rechargeable via USB port


• Connection via cable (USB 2.1) or wireless (Bluetooth 2.0)


• Internal temperature sensor for BTPS conversion


•
  Automatic recording of an entire spirometry session, including the best tests


Included Accessories

• USB cable


• Carrying case


• Manual on CD (GB, FR, IT, ES, DE, PT)


• Reusable turbine


• Selectable internal software (GB, FR, IT, ES, DE, PT)

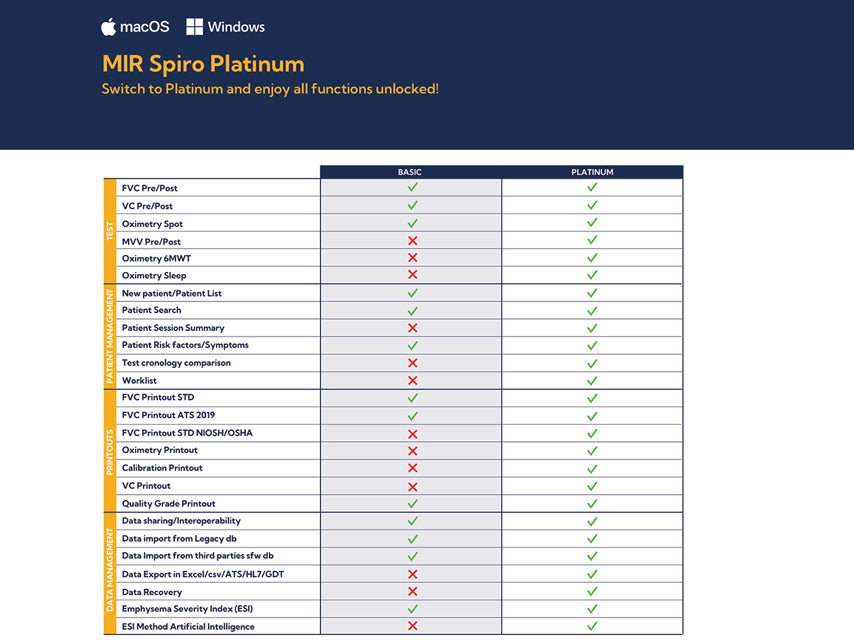

Software Functions MIR Spiro

• Compatibility with PC systems: XP, Seven, Vista, 8, 10


•
  Available languages: GB, FR, IT, DE, ES, PT, PL, SE, NL, LV, CZ, TR, RU, CN, JP



• Online PC connection with intuitive icons


• Real-time oximetry test, new curves


• Bronchodilation protocols with FEV1


• Engaging pediatric incentives


• Integration with EPR system


• Estimated lung age (ELA)


• Data and graph reports also via e-mail

Technical Specifications - Spirometer

•
  Measured parameters: FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FEF75-85%, FET, Vext, Lung Age, EVOL, FIVC, FIV1, PIF, FIV1/FIVC%, FIF25%, FIF50%, FIF75%, R50, PIF, IRV, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV



• Flow sensor: bidirectional digital turbine


• Flow measurement: ±16L/s


• Volume accuracy: ±3% or 50 mL


• Flow accuracy: ±5% or 200 mL/s


• Dynamic resistance: <0.5 cm H2O/L/s


• Available tests: FVC, VC, IVC, MVV, PRE - POST


• Connection: USB 2.0, Bluetooth® 4.0


• Power supply: 3.7 V lithium battery, 1100 mAh

Technical Specifications - Oximetry

• Measurement method: red and infrared absorption


• SpO2 range: 0-99% ±2% SpO2 between 70-99%


• Pulse range: 18-300 BPM ±2 BPM or 2%


• Signal quality indicator: 0-8 segment display


• Memory capacity: up to 300 hours of oximetry

The Mir Spirobank II Smart + SPO2 + Software Spirometer represents a complete and advanced solution for monitoring respiratory and cardiac health, ideal for medical professionals and for those who want accurate and reliable control of their vital parameters.
