GIMA negatoscopes are designed in accordance with clinical recommendations, with a very white light to provide accurate and precise reading of any detail. Ideal for use in the medical field, these negatoscopes ensure superior quality and long-lasting durability, thanks to the high-quality materials used in their construction.

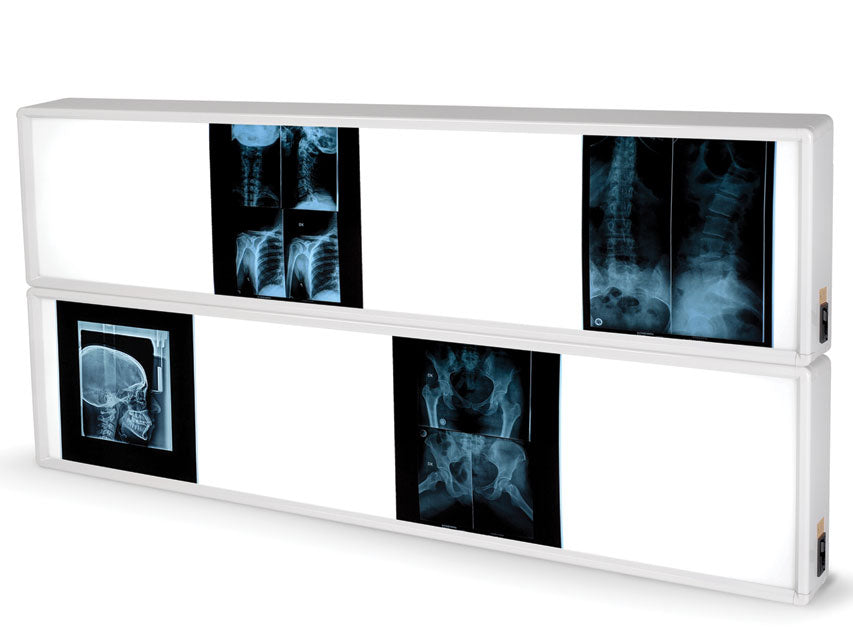

Main features of the 2x4 panel negatoscope 76 x 153 cm

• External dimensions:



  • Length: 158 cm


  • Height: 2x43 cm


  • Depth: 12 cm






• Weight: 36 kg


• Number of panels: 2x4


• Screen thickness: 3 mm acrylic


• Color temperature: cool white 6,500°K


• Power supply: 230 V - 50 Hz (60 Hz available at extra cost)


• Protection fuse: 2x1A


• Switch: bipolar


• Plug: Schuko with 2-meter cable


• Approved components: UL, DVE, IMQ


• Manufacturing: Italian

Materials and construction

The negatoscope chassis is made of pre-painted aluminum profile with epoxy powder coating (RAL 7035), ensuring strength and long-term durability. The 3 mm acrylic screen ensures uniform light diffusion, allowing a clear and detailed view of radiographic images.

Versatile use

GIMA negatoscopes can be used both on the wall and on a table, in horizontal or vertical position, offering maximum flexibility of use according to the specific needs of the working environment. This versatility makes them suitable for various clinical and diagnostic applications.

Safety and compliance

These negatoscopes are built in accordance with current safety regulations, including a protection fuse, a Schuko plug and a green ON/OFF light. All components used are approved by UL, DVE and IMQ, ensuring maximum reliability and safety during use.

Advantages of white light illumination

The cool white light illumination (6,500°K) of GIMA negatoscopes allows accurate and precise reading of details, essential for a correct diagnosis. White light reduces eye strain, improving comfort for healthcare professionals during long work sessions.

Discover the GIMA 2x4 panel negatoscope 76 x 153 cm, the ideal solution for clear and precise viewing of radiographic images, ensuring safety, quality and long-lasting durability.
