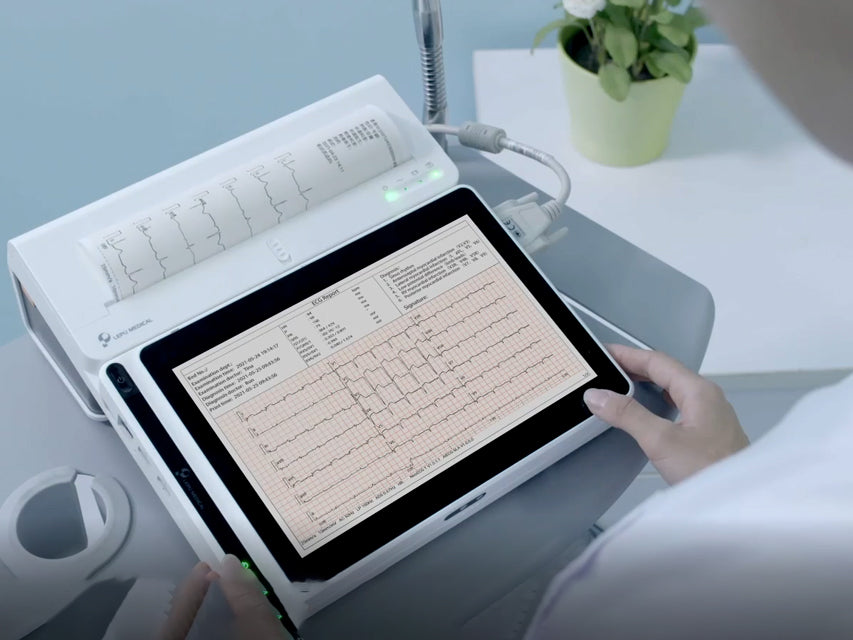

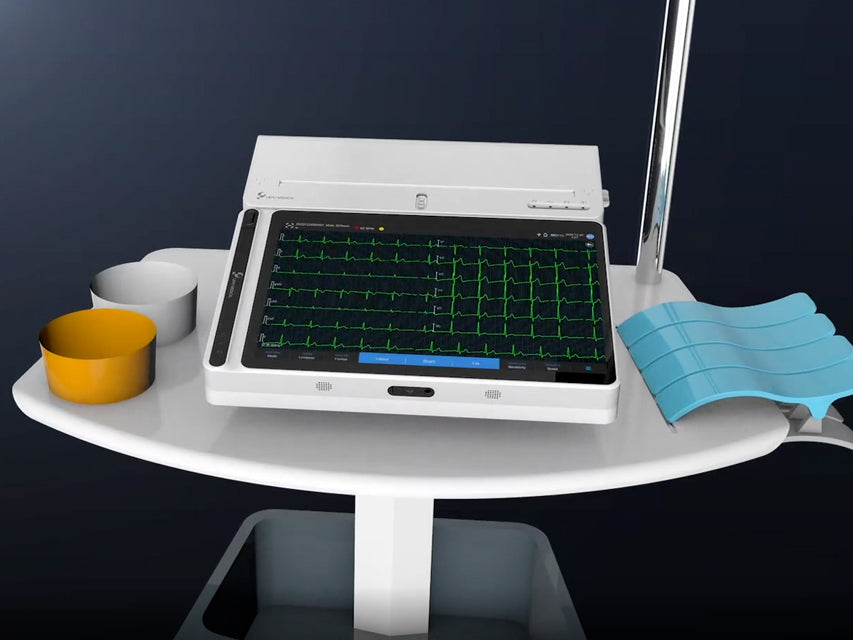

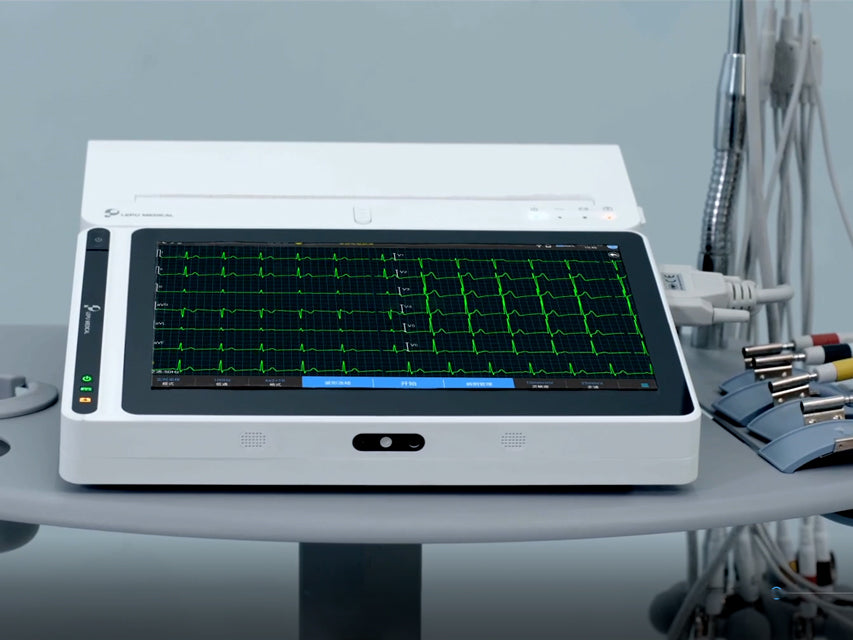

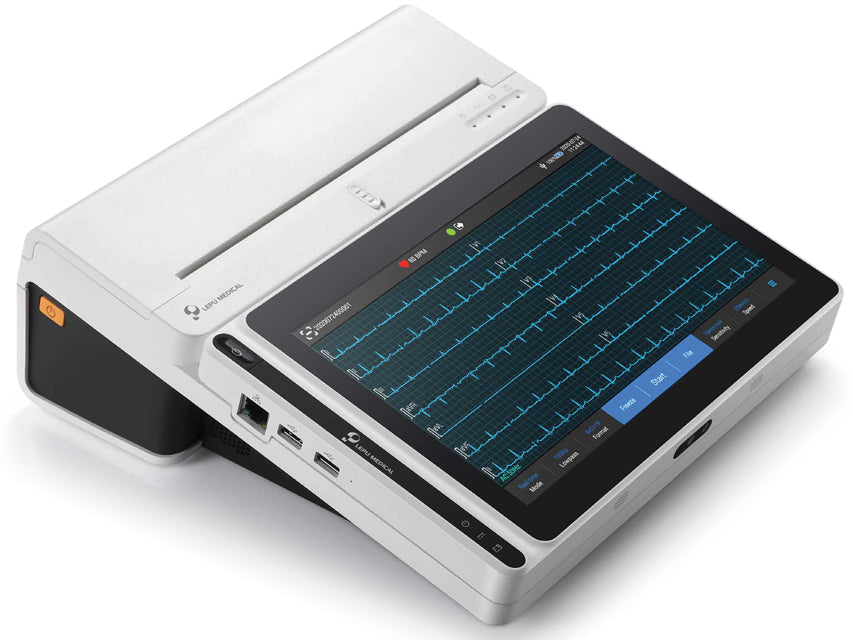

NEO ECG T180 - ECG TABLET with printer


The NEO ECG T180 by LEPU MEDICAL is a cutting-edge device designed to offer a complete and portable solution for cardiac diagnosis. This lightweight and compact ECG tablet is ideal for doctors and healthcare professionals who need a reliable device to acquire and analyze 9/12-lead ECG traces, wherever they are.

Main Features

The NEO ECG T180 is equipped with numerous advanced functions that make it an indispensable tool for clinical practice:

• 10.1” color touchscreen: high resolution, easy to use and intuitive.


• Data storage and management: ability to store, preview, review, edit and upload patient data via wireless transmission through mobile networks and WiFi.


• USB compatibility: export patient data to USB flash drive via USB connector.


• Glasgow algorithm: for accurate and reliable diagnosis.


• Multiple sampling modes: pre-sampling, real-time sampling, periodic sampling and trigger sampling.


• Automatic pacemaker detection: with pulse marking.


• RR and HRV auto-analysis: medicine test and ECG event mode for a complete assessment.


• Multiple file formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP.


• Built-in thermal printer: for immediate printing of ECG traces.


• Multilingual software: selectable among GB, FR, IT, ES, PT, DE, GR, PL.

Technical Specifications

The NEO ECG T180 is designed to deliver excellent performance with the following technical specifications:

• ECG leads: synchronous acquisition 9,12


• A/D resolution: 24 bit


• Heart rate range: 30 bpm - 300 bpm ± 1


• Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%


• Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error less than ± 3%


• Sampling frequency: 32000 samples/sec


• Filters: AC (50-60 Hz, off), EMG (25-35-45 Hz off) ADS (0.01-0.05-0.32-0.67 Hz)


• Low-pass filter: (75-100-150-300 Hz off)


• Frequency response: 0.01-350 Hz (+ 0.4-3.0 db)


• Minimum detectable signal: 20 µVp-p

Electrical Data

• Internal noise: = 12.5 µV


• Input impedance: = 100 MO (10 Hz)


• Input circuit current: = 10 nA


• Calibration voltage: 1mV ± 2 %


• Depolarization voltage: ± 900 mV, ± 5 %


• Common mode rejection: = 140 dB (AC filter on), = 120 dB (AC filter off)


• Amplitude quantization: 0.95 µV/LSB


• Device recovery time after discharge: < 10 s

Standard Equipment

The NEO ECG T180 comes with a complete set of accessories for immediate use:

• 1 ECG cable (IEC, Ø 4 mm, banana connector)


• 6 adult precordial suction electrodes (Ø 4 mm)


• 4 adult arm/leg clip electrodes


• 1 roll of thermal paper - 20m x 216 mm


• 1 rechargeable lithium battery


• 1 power adapter


• Multilingual manual: GB, IT, on request FR, ES, PT, DE, GR, PL

Choose the NEO ECG T180 by LEPU MEDICAL for precise and reliable cardiac diagnosis, wherever you are.
