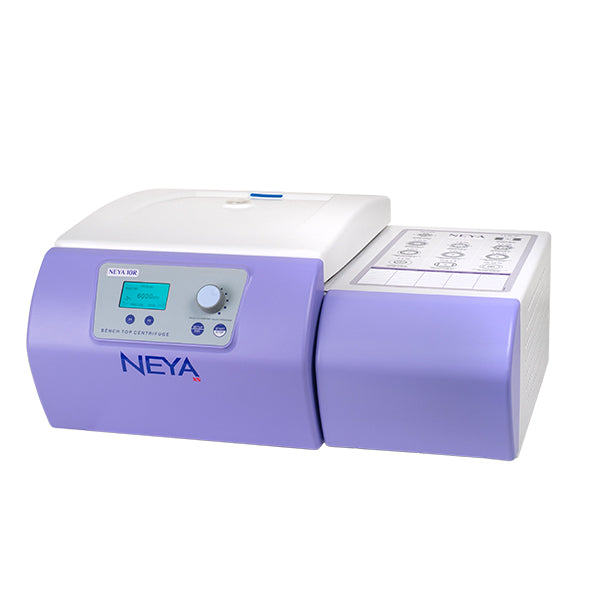

NEYA 10R Refrigerated Professional Centrifuge

Product Description

The NEYA 10R Refrigerated Professional Centrifuge is a CFC-free benchtop centrifuge designed to ensure exceptional performance and maximum safety. With automatic rotor recognition, equipment presence control, and verification of the maximum allowed speed, this centrifuge offers advanced functionalities such as a safety speed limiter.

Equipped with microprocessor control and a multicolor backlit display, it allows simultaneous visualization of all centrifugation parameters. The reduced number of buttons, the adjustment knob with confirmation function, and the linear guide ensure extremely intuitive operation. The induction motor, without carbon brushes, guarantees quiet operation and maintenance-free use.

The maximum load capacity is 4x175 ml. The speed is adjustable from 500 to 6000 rpm (depending on the installed rotor) in increments of 50 rpm. The RCF is adjustable up to 4800xg (depending on the installed rotor). The centrifugation time varies from 00:30 to 99:50 (mm) with increments of 10 seconds or continuous operation. The acceleration and deceleration ramps are adjustable to 10 levels.

Digital programming allows setting of 10 programs with protection against accidental overwriting. The short centrifugation function (SPIN) allows selecting the rotation speed and displaying the time. An audible and visual alert signals the end of centrifugation.

The automatic lid locking, with recovery of test tubes in case of power failure, and unbalance detection with automatic interruption of operation, ensure additional safety.

The centrifuge complies with CE directives: IEC 1010-1; IEC 1010-2-020. The reduced dimensions optimize space, and when paired with the specific cabinet, it reaches a total height of 90 cm. The access height to the chamber of only 27.5 cm facilitates filling and emptying even for personnel of average height. Warranty: 24 months.

Technical Specifications

•
  Name: NEYA 10R



•
  Capacity: 4 x 175 ml



•
  Maximum speed: 6000 rpm



•
  Maximum RCF: 4800 xg



•
  Programs: 10 programmable



•
  Centrifugation time: 00:30 - 99:50 (mm)



•
  Power supply: 220V, 50 Hz



•
  Consumption: 750 W



•
  Noise level: 55 dB



•
  Dimensions (L x W x H): 730 x 640 x 330 mm



•
  Weight: 70 kg



•
  Settable temperature: from -10 °C to +40 °C



•
  Display: Multicolor backlit



•
  Motor: Induction without brushes



•
  Automatic lid locking: Yes



•
  Unbalance detection: Yes



•
  Warranty: 24 months


Certifications and Compliance

• CE directives: IEC 1010-1; IEC 1010-2-020


•
  Regulations: 2014/35/EU; 2014/30/EU; 2015/863; 2006/42/EC; IEC61010-1:2010+A1:2016; IEC61010-2-020:2016; IEC61326-1:2012; IEC61010-2-120:2016; EN378-1; EN378-2


Additional Features

•
  Precooling: Function for rapid cooling



•
  SPIN: Short centrifugation function



•
  Rotor indication: Yes



•
  Speed limiter: Yes



•
  Programming: Digital with protection against overwriting



•
  Acceleration/deceleration ramps: 10 adjustable levels


With the NEYA 10R Refrigerated Professional Centrifuge, laboratory operations become more efficient, safe, and precise.
