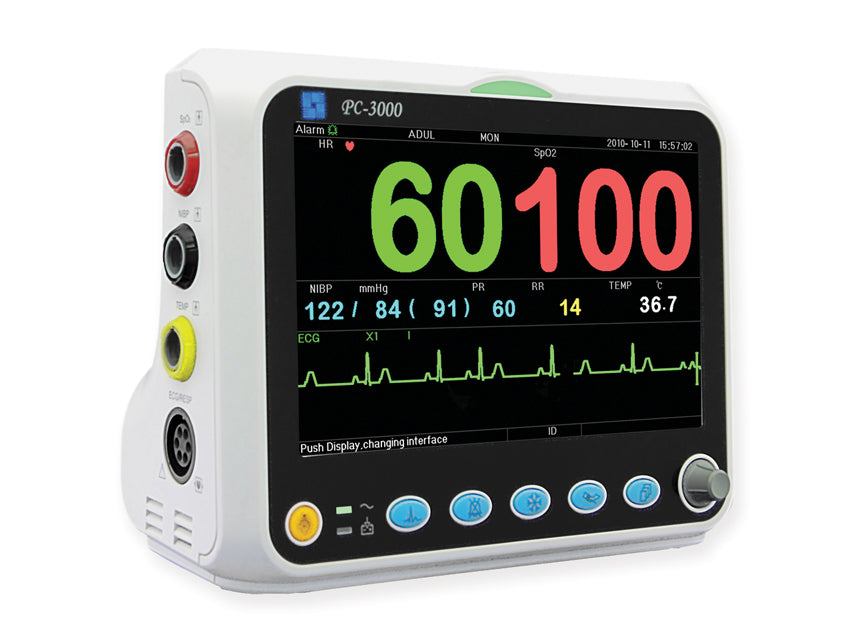

7" TFT Multiparameter Monitor – ECG/RESP/SpO2/NIBP/TEMP/PR – 2h & 24h Trend – Adult/Pediatric

Multiparameter monitor with 7” TFT color display (800×480), real-time waveforms and advanced analysis (arrhythmias and ST segment). Displays 5 channels in real time and 7 leads (I, II, III, aVR, aVL, aVF, V) on a single screen, with last 2 hours trend and large data memory. Adult/Pediatric mode, visual and audible alarms, protection against defibrillation/electrosurgery.

Main features

•
  Standard parameters: ECG, RESP, SpO2, NIBP, TEMP, PR



•
  Arrhythmia analysis and ST segment analysis



•
  Trend: display of the last 2 hours; memory up to 24 h of ECG and 480 h of statistical data (ECG, ST, TEMP, SpO2, RESP, NIBP)



•
  Configurable visual and audible alarms



•
  Protection against interference from defibrillation/electrosurgery



•
  Operating mode: adult and pediatric



•
  Note: no 12–18 V DC connector for use on transport vehicles (e.g. ambulances)


Technical specifications – NIBP

•
  Method: automatic oscillometric



•
  Inflation time (adult): < 30 s; initial pressure: 180 mmHg; overpressure limit: 300 mmHg



•
  Range (adults/children): systolic 25–265 mmHg; diastolic 12–220 mmHg; MAP 18–245 mmHg



•
  Accuracy: systolic ±10%; diastolic ±10%; MAP ±10%



•
  Modes: manual, automatic, STAT; auto interval: 1–240 min; interval tolerance: <10 s


Technical specifications – Temperature

•
  Range: 15–45 °C; accuracy: ±0.2 °C


Technical specifications – SpO2 & Pulse Rate

•
  Transducer: dual-wavelength LED



•
  SpO2: 35–100%; display accuracy: 90–99% ±2%; 70–89% ±4%; 40–69% ±6%



•
  Low perfusion: 0.4%–5%



•
  PR: 30–250 bpm; PR accuracy: ±2 bpm


Technical specifications – ECG

•
  Leads: I, II, III, aVR, aVL, aVF and V



•
  HR display range: 20–250 bpm; display accuracy: ±1% or ±2 bpm (whichever is greater)



•
  Sensitivity: Auto, ×1/2, ×1, ×2, ×4 (tolerance =5%)



•
  Speed: 12.5 / 25 / 50 mm/s (tolerance =10%)



•
  ECG noise: =30 µV_P-P; input current: =0.1 µA; input impedance: =5 MO



•
  HR alarm delay: =12 s


Technical specifications – RESP

•
  Range: 0–120 rpm; accuracy: ±10%



•
  Alarm range: 0–100 bpm; alarm tolerance: ±10%


Other features

•
  Display: 7" TFT color LCD – 800×480 pixels



•
  Power supply: 100–250 Vac, 50/60 Hz; consumption: <80 VA



•
  Battery: included Li-ion – ~2 h autonomy at full charge



•
  Connectivity: Ethernet network port


Dimensions and weight

•
  L × H × D: 19.5 × 15 × 9 cm



•
  Weight: 2 kg


Accessory compatibility

•
  AC power supply with cable for P3000 monitor



•
  Li-ion battery for P3000 monitor



•
  Carrying bag for PC-3000 multiparameter monitor



•
  NIBP cuffs (adult, pediatric) Vital / PC 3000 / UP 7000 series



•
  Cart for Gima Vital Sign and P3000 monitor



•
  ECG cable 5-lead – replacement (Vital / PC 3000 / UP 7000)



•
  SpO2 sensors adult and pediatric – replacement (Vital / PC 3000 / UP 7000)



•
  TEKNA foam spray 200 ml for monitor


Standard equipment

•
  ECG cable 3 m and 10 disposable electrodes



•
  NIBP cuff



•
  Adult SpO2 probe with 2 m cable



•
  Temperature sensor for body surface



•
  AC adapter with power cable 1.5 m



•
  Li-ion battery (~2 h)



•
  User manual in Italian


Choose this 7” multiparameter monitor for complete, reliable and configurable monitoring in wards and outpatient clinics, with advanced analysis and large recording capacity.
