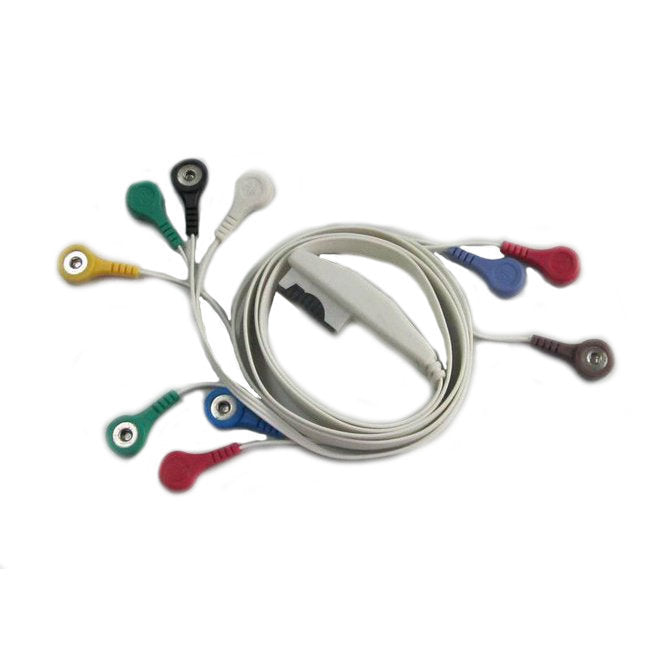

The Telemetry Patient Cable with MORTARA Surveyor S4 Clip Connection (FIAB brand) is an essential component for ECG monitoring in the medical field. Designed to ensure maximum reliability and safety, this cable is compatible with various models of MORTARA equipment, including H12, H12+, X12, and X12+.

Main features

The ECG patient cables for telemetry offer a secure connection protected from defibrillator discharges, thus ensuring optimal performance during clinical use. The EURO version with Clip connection is designed to facilitate use and improve operational efficiency.

Technical specifications

• Manufacturer: MORTARA


• Compatible models: H12, H12+, X12, X12+


• Total length: 1,200 mm ± 50 mm


• Clip color and writing:




• Red: C1


• Yellow: C2


• White: C3


• Brown: C4


• Black: C5


• Purple: C6


• Black: N


• Red: R


• Yellow: L


• Green: F

Construction materials

• Metal connector: Nickel-plated brass with plastic coating


• Metal Clip attachment: Brass coated with plastic


• Conductors: Copper 0.08 mm², 7 strands, Ø 0.05 mm


• Outer insulation of conductors: Plastic material


• Appearance of conductors: Flat cable with 10 terminations

Packaging and storage

• Primary packaging: Single in a PE heat-sealed bag – non-sterile


• Sales packaging: Cardboard box


• Storage temperature: 0°C ÷ +50°C


• Relative humidity (RH): 20% ÷ 80%


• Shelf life: 60 months from the production date indicated on the package

Compliance and regulations

This patient cable complies with Directive 93/42/EEC (D.L.46/97) and is classified as a Class I device. Furthermore, it meets the safety standards CEI EN 60601-1, CEI EN 60601-1-2, and CEI EN 60601-2-25, thus ensuring maximum safety for the user.

The trademarks and trade names mentioned in the document are the property of their respective manufacturers.
