PC-300 Portable Monitor for Home and Hospital Use - GIMA

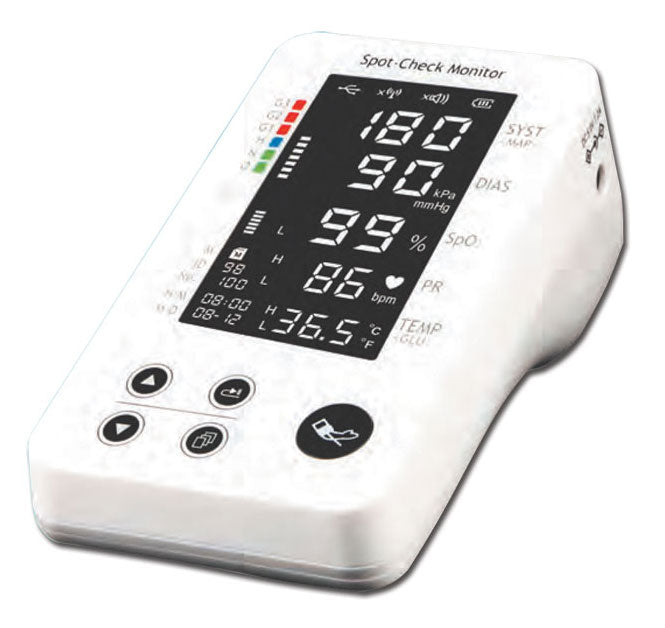

The PC-300 portable monitor is a versatile and advanced device designed to measure SpO2, pulse rate, NIBP and temperature. Ideal for both home and hospital use, this monitor offers a complete solution for health monitoring.

Main Features of the PC-300 Portable Monitor

The PC-300 monitor is equipped with Bluetooth technology and a USB interface, which allow data transfer to PC, tablet and smartphone (compatible with Android and iOS). This device can store up to 6,000 pressure records for up to 100 different patients, with each user able to record up to 999 measurements.

• Ear probe that measures temperature in just 5 seconds.


• Data transfer to PC/Smartphone via USB or Bluetooth.


• Pediatric NIBP cuff and pediatric SpO2 probe optional.


• ECG and glucometer optional.


• Rechargeable lithium battery included.


• Communication protocols available on request.


• Software download link: Download here.

Technical Specifications

SpO2

• Measurement range: 35-100%


• Accuracy: ±3% (70-100%)

Pulse Rate

• Measurement range: 30-240 bpm


• Accuracy: ±2% or ±2 bpm (whichever is greater)

NIBP

• Pressure range: 0-300 mmHg (0-39.9 kpa)


• Accuracy: ±3 mmHg


• Systolic pressure measurement range: 60-240 mmHg


• Diastolic pressure measurement range: 30-180 mmHg

Temperature (TEMP)

• Measurement range: 32-43.0°C


• Accuracy: ±0.2°C (35-42°C) - ±0.3°C (other)


• Measurement time: <5 s

ECG (Optional)

• Heart rate measurement range: 30-240 bpm


• Heart rate accuracy: ±2 bpm or ±2% whichever is greater


• Display screen: 5.0 mm/mV ±10%


• Common mode rejection ratio (CMRR): =60 dB

Glucometer (Optional)

• Measurement range: 20 to 600 mg/DL

Power Supply

• Battery: 3.7 V Li-ion battery included


• Operating voltage: 3.6-4.2 VDC


• Operating current: =800 mA


• Charger: 100-240 VAC, 50/60 Hz, 5 VDC or US

Standard Equipment

• SpO2 probe for adults


• Cuff for adults


• Ear thermometer (probe covers not included)


• Lithium battery with charger


• Carrying bag


• User manual: GB, FR, IT, ES

The GIMA PC-300 portable monitor is a reliable and complete solution for health monitoring, both in home and hospital settings. Thanks to its many functions and easy data transfer, it is the ideal tool for those seeking accuracy and convenience.
