The Pediatric Fast ECG Chest Strap is an innovative device designed to simplify electrocardiogram (ECG) acquisition in pediatric patients, without the need for chest hair removal. This tool is extremely useful in clinical practice, allowing for rapid and accurate ECG recording on any type of patient, regardless of gender or build.

Product Description

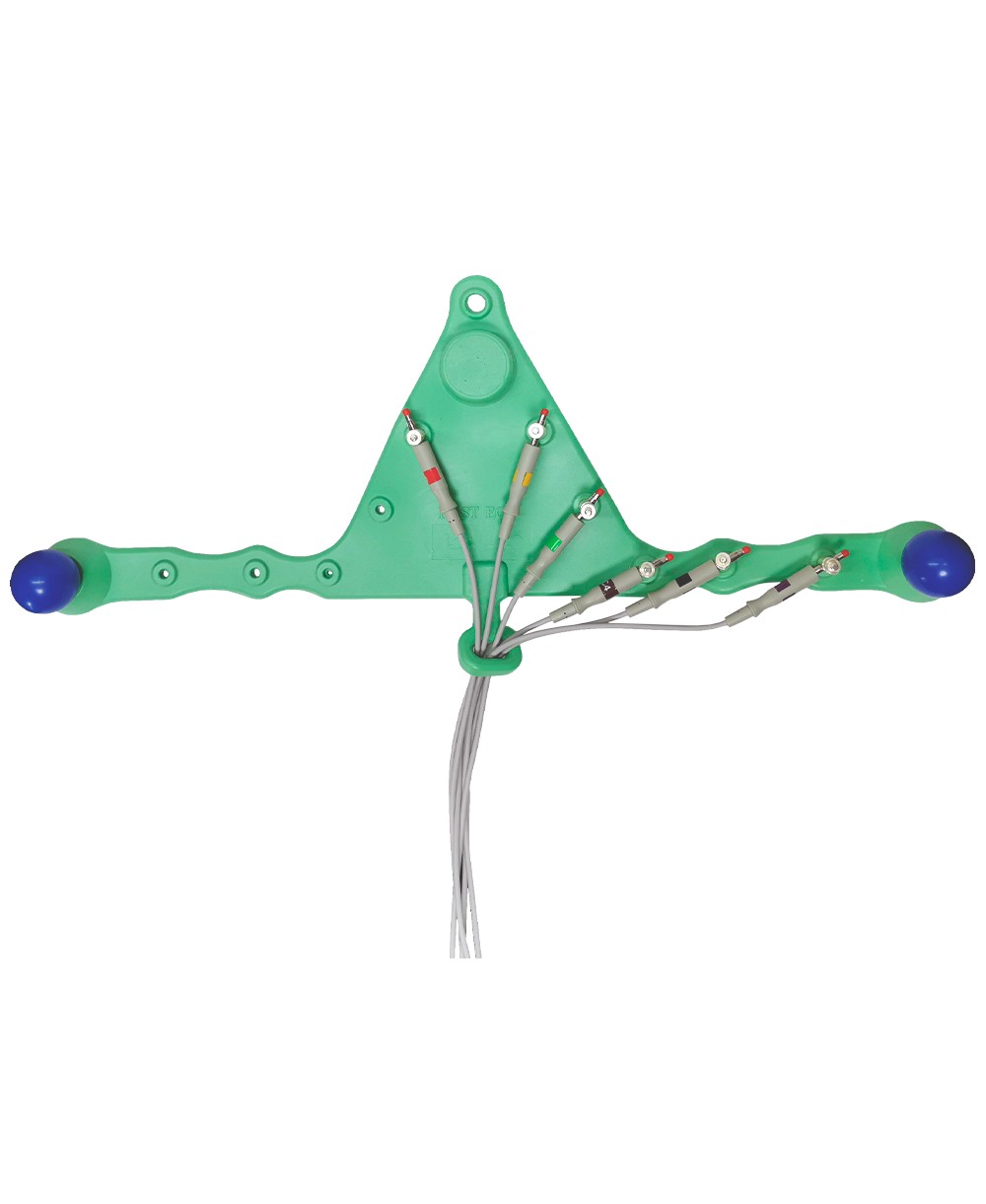

The Pediatric Fast ECG Chest Strap rests on the chest of the supine patient, automatically positioning the electrodes in the correct precordial positions (V1, V2, V3, V4, V5, V6). The strap is equipped with suction cups that adhere to the skin via a small pump, ensuring a secure fit for the duration of the electrocardiogram. For prolonged examinations, it is possible to use specific plates for standard disposable double-sided adhesive electrodes.

Technical Characteristics

• Material: Medical silicone strap, easily disinfected and stretchable to fit all chests.


• Electrodes: Brass with Ag/AgCl treatment, ensuring optimal conduction.


• Compatibility: Usable with all cables with clip or banana terminals.


• Certifications: CE certified according to directive 93/42.


• Included Accessories: Supplied complete with case, conductive spray, and double-sided adhesive strips.

Patient Application

1. Connect the patient cable to the 6 precordial electrodes.


2. Connect the limb electrodes to the patient in the usual way.


3. Apply conductive spray to the contact points of the precordial electrodes or to the electrodes themselves.


4. Place the device on the supine patient's chest, positioning the upper electrodes in positions V1 and V2 and extending the strap to V6.


5. Secure the device by adhering the cups to the skin and creating a vacuum in them using the pumps.


6. Start the electrocardiogram recording.


7. For prolonged monitoring, secure with double-sided adhesive discs by screwing the special plates onto the suction cups.

Benefits of the Pediatric Fast ECG Chest Strap

The Pediatric Fast ECG Chest Strap offers numerous advantages, including:

• Ease of Use: Simplifies ECG acquisition, reducing patient preparation time.


• Versatility: Suitable for patients of different builds without the need for hair removal.


• Safety: Secure and stable fit thanks to suction cups and double-sided adhesive plates.


• Hygiene: Easily disinfected materials to ensure maximum hygiene.

Certifications and Compliance

The Pediatric Fast ECG Chest Strap is CE certified according to directive 93/42, ensuring compliance with European safety and quality standards. It is classified as a non-sterile, non-measuring Class I medical device.

Package Contents

• Pediatric Fast ECG Chest Strap


• Protective case


• Conductive spray


• Double-sided adhesive strips

CND: Z12050380

Register: 299432

CE CLASS: I - Non-sterile, non-measuring Class I
