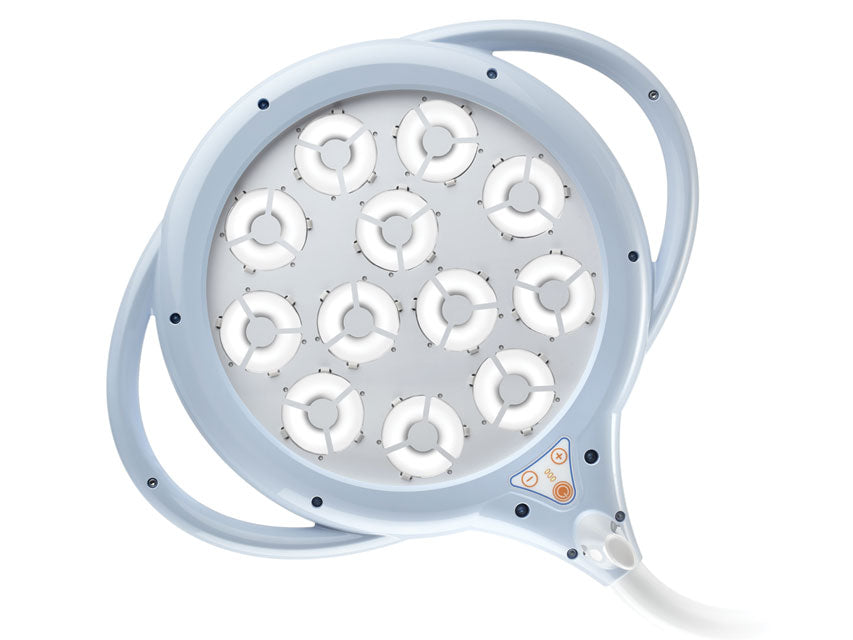

Pentaled 12 - ceiling-mounted is an advanced lighting solution designed to meet the demands of precision and quality in medical and surgical environments. Ideal for ceilings between 2.57 and 3.33 meters, this device can also be adapted to higher ceilings with the use of code 30788. With a light output of 100,000 Lux at 1 meter, Pentaled 12 ensures optimal illumination without eye strain thanks to its 12 elliptical reflectors that reflect the indirect light emitted by the LEDs.

Technical Features of Pentaled 12

• Light intensity: 100,000 Lux at 1 meter


• Color temperature: 4,500 K


• Number of LEDs: 12


• Average LED life: 50,000 hours


• Color rendering index (CRI): Ra 96


• Light field: Ø 160 mm


• Illumination depth: 87 cm at 60%


• Total radiant energy: 350 W/m²


• Weight: 18 kg


• Power supply: 100-230 V, 50-60 Hz

Ergonomic and Innovative Design

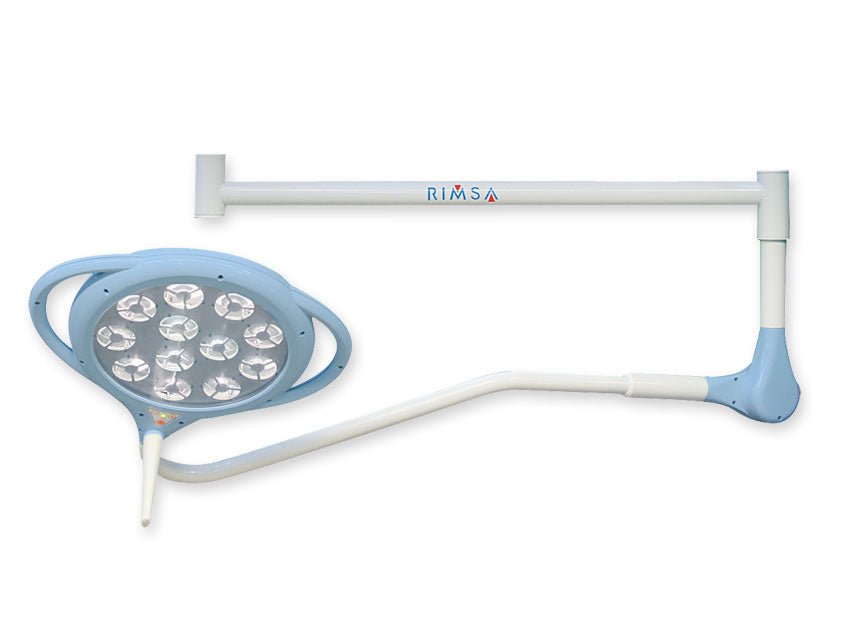

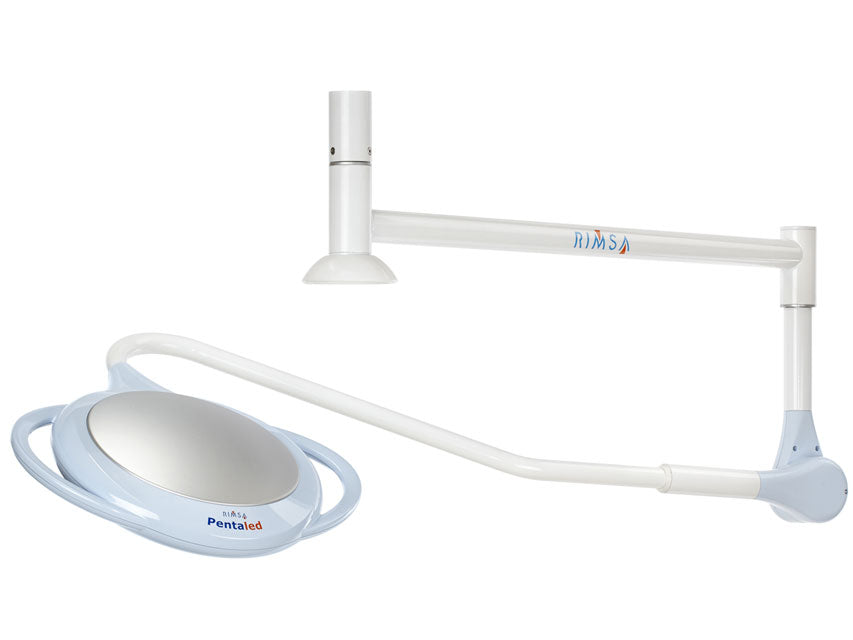

Pentaled 12 combines advanced technology, innovation, and ergonomics in a compact, ultra-light, and easy-to-handle structure. It is available in five versions: floor stand, ceiling-mounted, double ceiling-mounted, floor stand with battery unit, and wall-mounted. The version with battery unit is also available on request for wall-mounted and ceiling-mounted models.

Rotation and Movements

• The dome rotates fully 360°


• The arms move vertically thanks to a spring balancing system


• The reflector can be rotated on the vertical and horizontal axis


• All movements are possible thanks to the sterilizable handle

Cold and Bright LED Light

The cold and bright light of Pentaled 12 faithfully reproduces colors, ensuring excellent detail definition. The low-consumption power supply and heat dissipation through the aluminum dome ensure a LED life of 50,000 hours.

Light Intensity Adjustment

The light intensity is adjustable through digital controls, with a digital control that allows precise adjustment of the light intensity and provides a visual indication of the intensity settings.

Maximum Protection and Durability

The ultra-flat illuminating ring is equipped with an ultra-resistant polycarbonate shield that ensures maximum protection against accidental impacts, making Pentaled 12 a reliable and durable choice for any medical environment.
