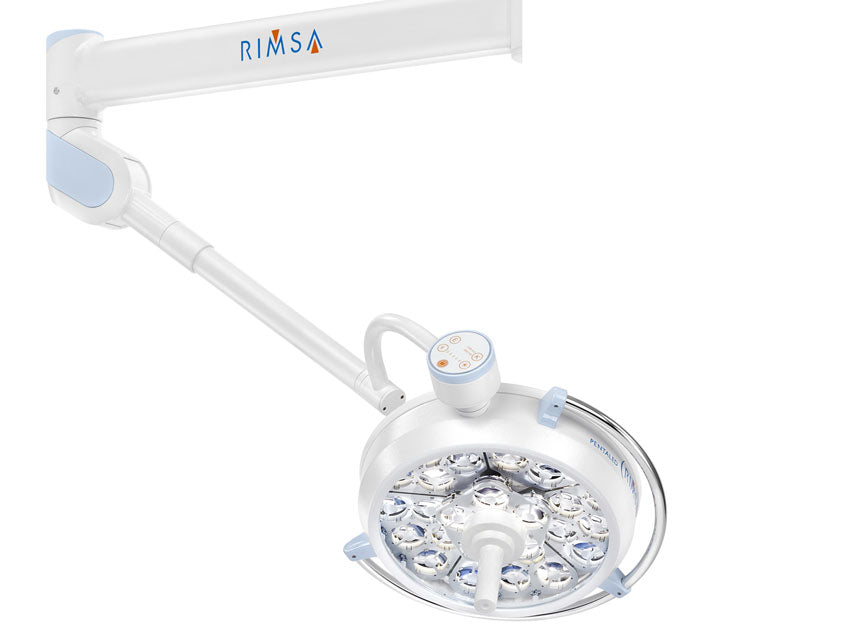

The Pentaled 30E surgical light ceiling-mounted by RIMSA represents the forefront of LED surgical lighting. This compact, high-tech device is designed to deliver high performance and optimal illumination during medical procedures, ensuring visual comfort and precision for the surgeon.

Innovative LED lighting technology

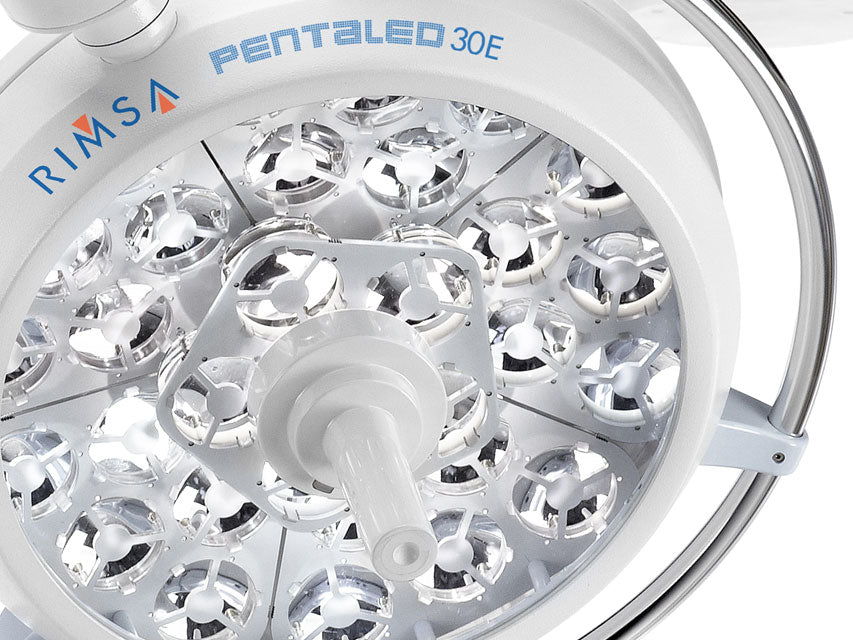

The Pentaled 30E is equipped with 30 elliptical reflectors divided into 6 modules, each with 5 LEDs, providing powerful 160,000 LUX light. This advanced configuration ensures uniform, shadow-free illumination.

Main features

• Choice between 4,500 and 5,000 °K: With a simple digital touch, the surgeon can select between two white light temperatures, adapting to the specific needs of the procedure.


• Electronic visualization: The innovative lenses allow the light field to be increased or decreased electronically, without altering light intensity.


• Electronic comfort: The indirect light creates 3D illumination of the working field, eliminating shadows and reducing the risk of glare.


• Pure white light: It avoids the risks of perceiving changes in color temperature or colored shadows, ensuring a clear and precise view.


• Electronic depth: The center of the light is equipped with an additional LED module designed to reflect light in depth, providing perfect 3D illumination for the surgeon.


• Optional battery and high-definition camera: A battery with automatic charger (4 hours of autonomy) and an integrated high-definition camera can be requested (available only for ceiling and wall models).

Technical specifications

• Luminous intensity at 1 m distance (Ec): 160 Klx


• Selectable color temperature: 4500 - 5000 °K


• Color rendering index (CRI): Ra 96


• Light fields (electronic adjustment): 16-30 cm


• Ø of the light field at 10% of luminous intensity (d10): 160 mm


• Ø of the light field at 50% of luminous intensity (d50): 80 mm


• Ratio between irradiated energy Ee and illumination Ec: 540 W/m²


• Average LED life: 50,000 hours


• Power supply: 100-240 V, 50-60 Hz, 70 VA


• Standards: IEC 60601-2-41, 2007/47/EC


• Made in Italy

Advantages of the Pentaled 30E surgical light

The Pentaled 30E offers numerous advantages that make it an excellent choice for operating rooms:

• Energy efficiency: Thanks to LED technology, the lamp consumes less energy than traditional halogen lamps, reducing operating costs.


• Long lifespan: With an average lifespan of 50,000 hours, the lamp requires less maintenance and fewer replacements, ensuring continuous and reliable operation.


• Shadow-free illumination: The LED and reflector configuration ensures uniform, shadow-free illumination, improving visibility during surgical procedures.


• Adaptability: The ability to adjust the color temperature and light field allows the surgeon to customize the lighting according to the specific needs of the procedure.

For more information about the Pentaled 30E surgical light ceiling-mounted by RIMSA, contact us today and discover how this innovative lighting solution can improve the efficiency and precision of your surgical procedures.
