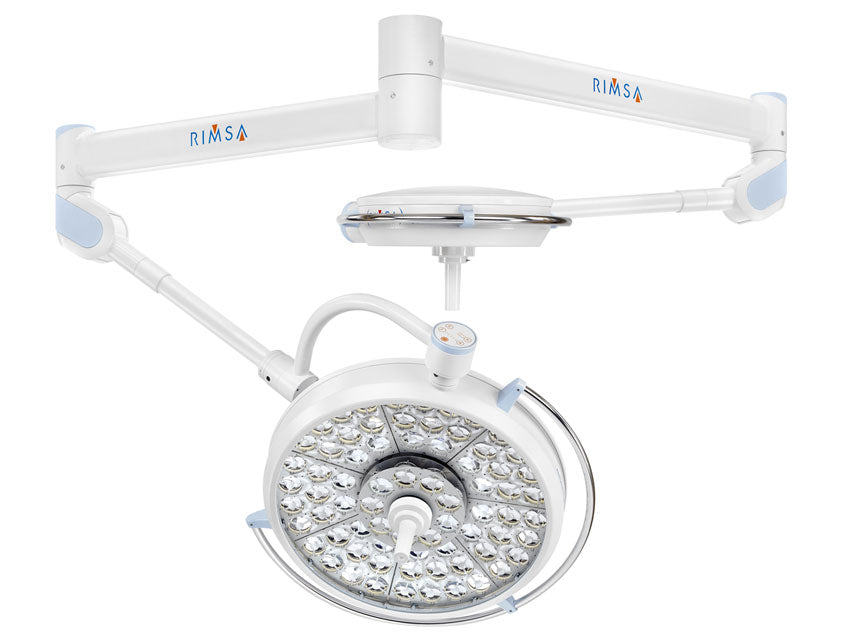

The Pentaled 63N + 30N is a ceiling-mounted double-dome operating lamp, designed to deliver exceptional performance in surgical settings. With a brightness of 320,000 LUX and a compact structure, this highly advanced piece of equipment ensures shadow-free three-dimensional illumination, ideal for complex procedures.

Advanced Technical Features

The Pentaled 63N is composed of 72 elliptical reflectors divided into 8 modules of 9 LEDs each. The modules are focused mechanically by rotating the handle, allowing precise adjustment of the illuminated field. The multiplicity of light sources and the reflected-light system ensure optimal shadowless lighting.

Comfortable Use

Thanks to the indirect light principle, the lamp can be oriented in different positions without dazzling the surgeon and assistants. The size of the illuminated field is adjusted mechanically with the handle, adapting to the specific needs of the surgical specialty.

Intuitive Controls

The controls on the membrane keypad activate different functions:

• Selection of color temperature: 5,000°K and 4,500°K


• Adjustment of light intensity up to 160 Klx


• On/off


• Endoled function with color selection for endoscopic procedures

The solar color temperature of 5,000°K stimulates the surgeon’s concentration, does not strain the eyes, faithfully reproduces tissue color, and increases contour definition.

Reliable and Long-Lasting Performance

The modular design of the LED power supply electronic board ensures continuity of light even in the event of an LED failure. The light is protected by a tempered glass diffuser screen, and 360° rotation without stops on both the central and lateral axes ensures maximum flexibility.

Easy Maneuverability

The compact dimensions and reflector ensure high maneuverability and stability. The lightweight structure, the treated aluminum bar on the front of the dome, and the ultra-thin reflector (only 13 cm) allow simple and precise movements.

Additional Options

Each lamp can be supplied with:

• Emergency battery unit with automatic battery charger (autonomy: 2.5 hours)


• TV camera


• Monitor arm

Complete Certification

The Pentaled 63N + 30N complies with European directives 93/42/EEC and 2007/47/EC Class I, with CE marking as a medical device. Manufactured in Italy, it guarantees quality and reliability.

Technical Performance

• Luminous intensity at 1 m distance (Ec): 160 klx


• Color temperature: dual selection 4500/5000 °K


• Color rendering index (CRI): 96 Ra


• Light field diameter: 21-42 cm (63N) / 18-30 cm (30N)


• Total irradiated energy Ee when illumination reaches maximum level: W/m2 543


• Number of LEDs: 72 (63N) / 30 (30N)


• Focus and light field diameter adjustment: manual


• Illumination depth IEC 60601-2-41 (L1+L2) at 60%: 46 cm (63N) / 55 cm (30N)


• Illumination depth IEC 60601-2-41 (L1+L2) at 20%: 108 cm (63N) / 115 cm (30N)


• Light intensity control: 25-100 %


• Endo LED min-max light intensity: 5-20 klx (63N) / 9-25 klx (30N)

Electrical Data

• Primary alternating voltage (VAC): 100-240V


• Secondary direct voltage (VDC): 24V


• Power consumption: 145 VA (63N) / 70 VA (30N)


• Frequency: 50/60 Hz


• LED lifespan: 50,000 h

General Data

• Color: 9003 RAL


• Minimum room height (standard): 260 cm (63N) / 280 cm (30N)


• External reflector diameter: 63 cm (63N) / 40 cm (30N)


• Light emission surface: 1710 cm2 (63N) / 712 cm2 (30N)


• Weight: 45 kg (63N) / 35 Kg (30N)
