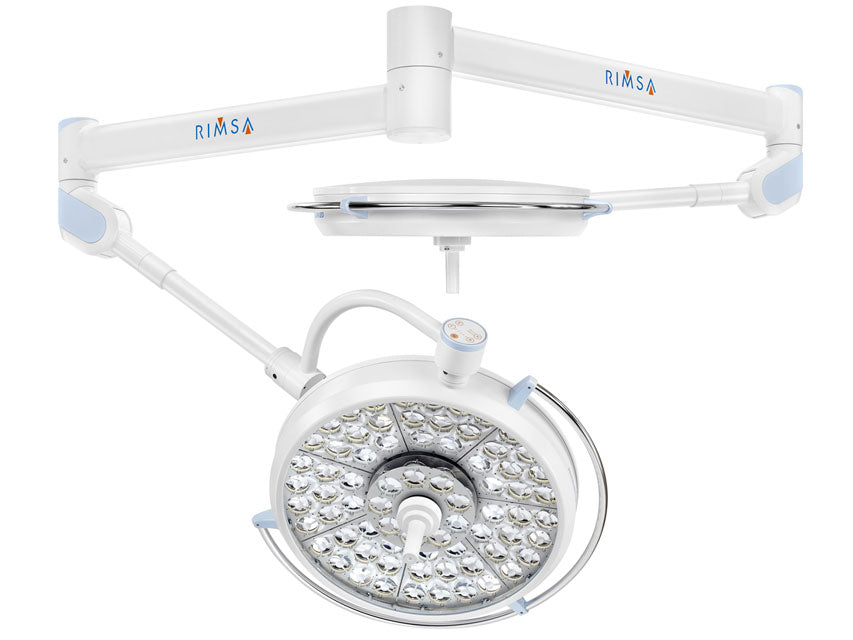

Pentaled 63N + 63N Operating Lamp - Double Ceiling-Mounted - 1 pc. is a highly advanced surgical lighting solution, designed to ensure excellent performance in the operating room. With a light output of 320,000 LUX, this lamp provides three-dimensional, shadow-free light thanks to its 72 elliptical reflectors divided into 8 modules of 9 LEDs each.

Superior Lighting Features

The Pentaled 63N + 63N is equipped with intuitive controls on the membrane keypad that allow you to:

• Select the color temperature between 5,000°K and 4,500°K


• Adjust the light intensity up to 160 Klx


• Turn the lamp on and off


• Activate the Endoled function with color selection for endoscopic procedures

The solar color temperature at 5,000°K stimulates the surgeon's concentration, does not strain the eyes, faithfully reproduces tissue color, and increases contour definition.

Comfortable Use

Thanks to the indirect light principle, the lamp, when oriented in different positions, does not dazzle the surgeon or assistants. The size of the illuminated field is mechanically adjusted with the handle according to the type of light required by the surgical specialty.

Reliable and Long-Lasting Performance

The modular design of the LED power supply board ensures light continuity even in the remote event of an LED failure. The light is protected by a tempered glass diffuser screen, and 360° rotation without stops on both the central and lateral axes, with slip-ring tracks for current transmission, ensures constant and reliable illumination.

Easy Maneuverability

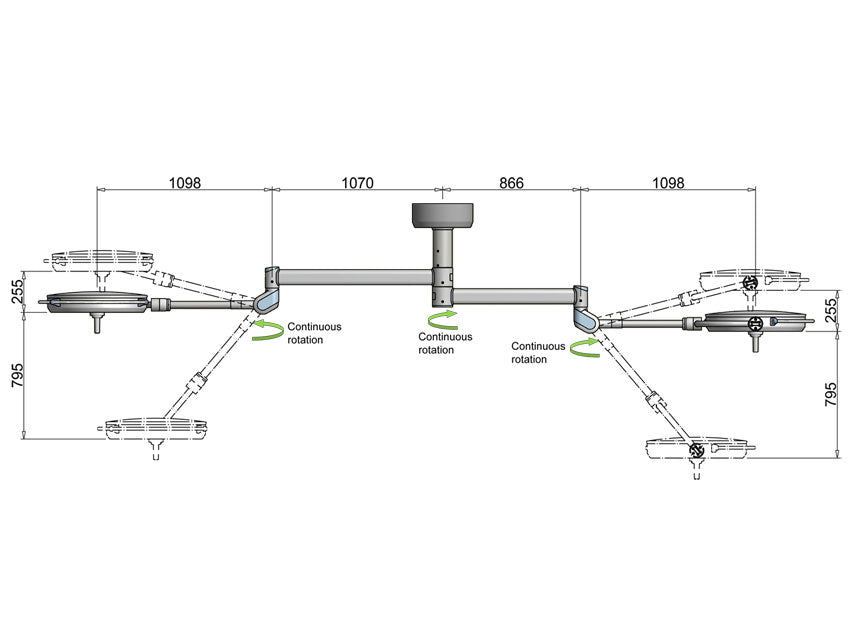

The compact dimensions and reflector ensure high maneuverability and stability. Smooth 360° rotation and the extreme lightness of the structure, with an aluminum-treated bar on the front of the dome and an ultra-thin 13 cm reflector, allow simple and precise movements.

Accessories and Additional Options

Each lamp can be supplied with:

• An emergency battery unit with automatic battery charger (backup time: 2.5 (49200, 2.5 (49201), 2 (49202))


• TVCC camera


• Monitor arm

Full Certification

The Pentaled 63N + 63N complies with European directives 93/42/EEC and 2007/47/EC Class I, with CE marking as a medical device. Manufactured in Italy, it guarantees quality and reliability.

Technical Specifications

Performance

• Light intensity at 1 m distance (Ec): 160 klx


• Color temperature: dual selection 4500/5000 °K


• Color rendering index (CRI): 96 Ra


• Light field diameter: variable from 21 to 42 cm


• Total irradiated energy Ee when illumination reaches maximum level: W/m2 543


• Number of LEDs: 72


• Focus and light field diameter adjustment: manual


• Illumination depth IEC 60601-2-41 (L1+L2) at 60%: 46 cm


• Illumination depth IEC 60601-2-41 (L1+L2) at 20%: 108 cm


• Light intensity control: 25-100 %


• Endo LED light intensity min-max: 5-20 klx

Electrical Data

• Primary AC voltage (V ac): 100-240V


• Secondary DC voltage (V dc): 24V


• Power consumption: 145 VA


• Frequency: 50/60 Hz


• LED life: 50,000 h

General Data

• Color: 9003 RAL


• Minimum room height (standard): 260 cm


• Outer reflector diameter: 63 cm


• Light emission surface: 1710 cm2


• Weight: 45 kg
