The Pentaled 63N is a state-of-the-art ceiling-mounted operating lamp, designed to ensure excellent performance in the operating room. With a light output of 160,000 LUX, this equipment is an ideal solution for medical professionals who require precise, shadow-free lighting during surgical procedures.

Technical Features of the Pentaled 63N

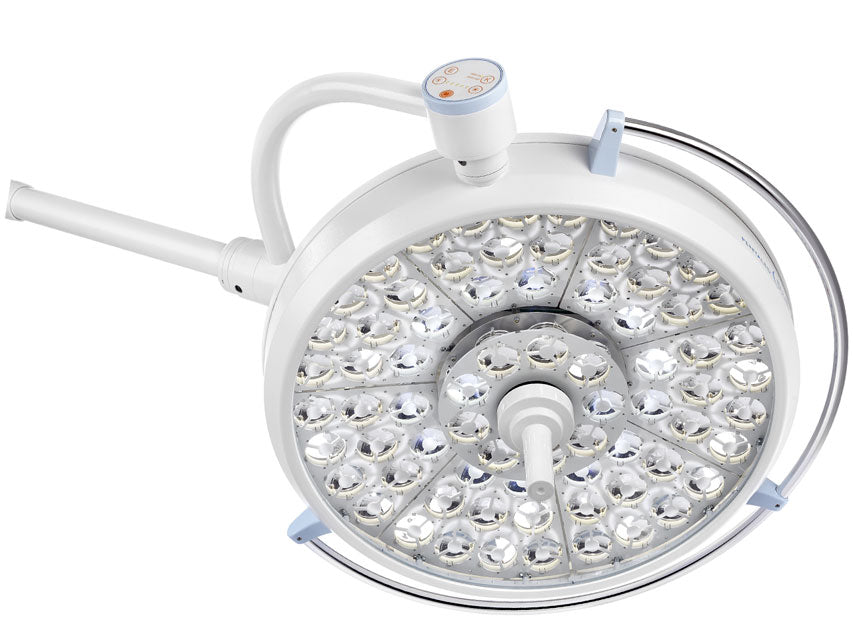

The Pentaled 63N operating lamp is composed of 72 elliptical reflectors divided into 8 modules of 9 LEDs each. The modules are focused mechanically by rotating the handle, allowing precise adjustment of the illuminated field according to the specific needs of the surgical specialty.

Superior Lighting

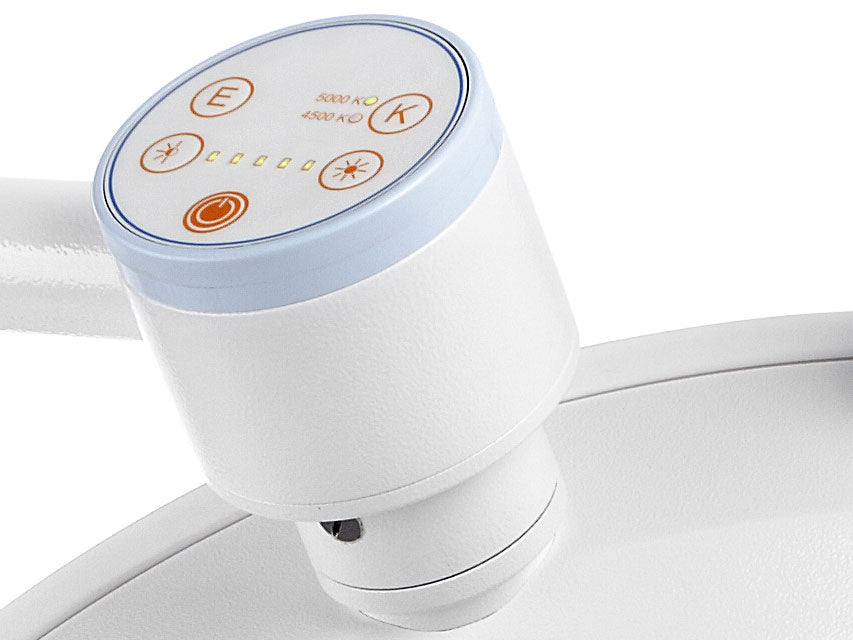

Thanks to the reflected light system, the Pentaled 63N offers three-dimensional, shadow-free illumination, ensuring optimal scialytic effect. The controls on the membrane keypad allow you to:

• Select the color temperature between 5,000°K and 4,500°K


• Adjust the light intensity up to 160 Klx


• Turn the lamp on and off


• Activate the endo LED function with color selection for endoscopy procedures

The solar color temperature at 5,000°K stimulates the surgeon's concentration, does not strain the eyes, faithfully reproduces tissue color, and increases contour definition.

Comfortable Use

The indirect light principle of the Pentaled 63N ensures that the lamp, oriented in different positions, does not dazzle the surgeon and assistants. The size of the illuminated field is mechanically adjusted with the handle, perfectly adapting to the type of light required by the surgical specialty.

Reliable and Long-Lasting Performance

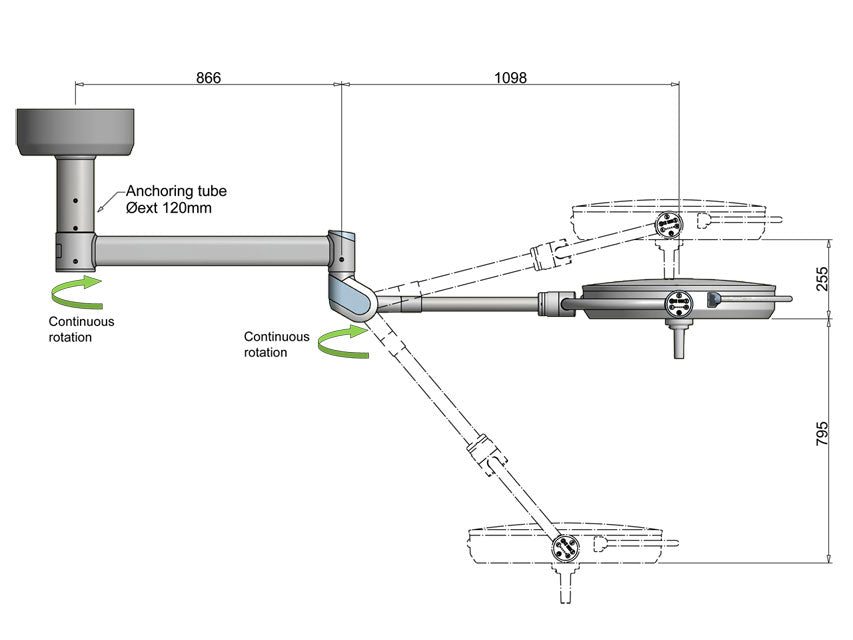

The modular design of the LED power supply electronic board guarantees light continuity even in the remote event of a LED failure. The light is protected by a tempered glass diffuser screen, and rotation is 360° without stops on both the central and lateral axes, with slip-ring tracks for current transmission.

Easy Maneuverability

The compact dimensions and reflector of the Pentaled 63N ensure high maneuverability and stability. The smooth 360° rotation, the extreme lightness of the structure, the aluminum-treated bar on the front part of the dome, and the ultra-thin reflector (only 13 cm) allow simple and precise movements.

Additional Options

Each lamp can be supplied with an emergency battery unit with automatic battery charger (backup time: 2.5 hours), a CCTV camera, or a monitor arm, to meet all operating needs.

Certifications and Compliance

The Pentaled 63N complies with European directives 93/42/EEC and 2007/47/EC Class I, with CE marking as a medical device. Manufactured in Italy, this operating lamp represents a high-quality and reliable product.

Technical Specifications

• Luminous intensity at 1 m distance (Ec): 160 klx


• Color temperature: dual selection 4500/5000 °K


• Color rendering index (CRI): 96 Ra


• Light field diameter: variable from 21 to 42 cm


• Total irradiated energy Ee when illumination reaches max level: W/m2 543


• Number of LEDs: 72


• Focus adjustment and light field diameter: manual


• Illumination depth IEC 60601-2-41 (L1+L2) at 60%: 46 cm


• Illumination depth IEC 60601-2-41 (L1+L2) at 20%: 108 cm


• Light intensity control: 25-100 %


• Endo LED min-max light intensity: 5-20 klx

Electrical Data

• Primary alternating voltage (V ac): 100-240V


• Secondary direct voltage (V dc): 24V


• Power consumption: 145 VA


• Frequency: 50/60 Hz


• LED life: 50,000 h

General Data

• Color: 9003 RAL


• Minimum room height (standard): 260 cm


• Outer diameter of the reflector: 63 cm


• Light emission surface: 1710 cm2


• Weight: 45 kg
