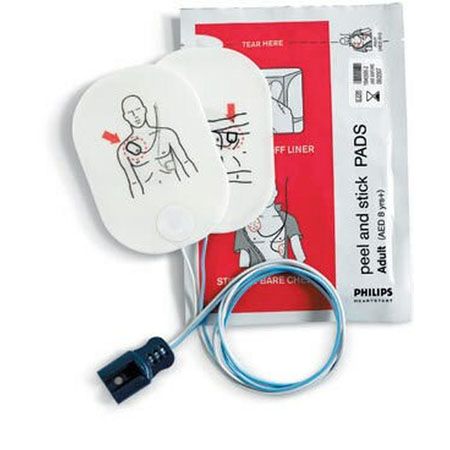

Discover the Philips Heartstart Defibrillator Pads, an essential component for ensuring safety and effectiveness in emergency situations. These replacement electrodes are designed for use with all models in the HeartStart series, ensuring optimal performance and rapid intervention when needed.

Product Description

The pads are compatible with the following Philips defibrillator models:

• HeartStart FR1


• HeartStart FR2


• HeartStart FR2+


• HeartStart FR3


• HeartStart FRX


• HeartStart MRX

These electrodes not only support ECG monitoring and defibrillation but are also compatible with the advanced features of HeartStart manual devices, such as external pacing and synchronized cardioversion. It is important to note that they cannot be used in stand-by mode for the HeartStart FR3 and FRX models.

Technical Information

The pads are recommended for adult patients weighing over 25 Kg or over 8 years of age. Key features include:

• Thin and flexible conductor: Made on a protective polymer backing with adhesive hydrogel for better adhesion.


• Oval shape: Large adhesion surface to ensure maximum contact even in difficult conditions.


• Cable length: Approximately 120 cm, ideal for facilitating maneuvers during emergencies.


• Storage temperature: 0 to 43 °C, for optimal storage.


• Shelf life: 24 months from the date of manufacture, for greater reliability.

Additional Features

• Electrode Surface Area: 75 cm² of active surface area per electrode, for effective defibrillation.


• Number of hours on skin: 24 hours, for prolonged use in critical situations.


• Number of shocks: Capable of delivering up to 50 shocks, ensuring timely intervention.


• Pacing duration: Up to 8 hours at 100mA, 80bpm, for continuous support.


• Latex Free: Completely latex-free, to reduce the risk of allergies.


• Packaging: Each package contains 1 pair of pads.

Additional Information

- CND: C020401

- Repertory: 68249

- CE Class: IIB

Choose Philips Heartstart Defibrillator Pads to ensure effective and safe intervention in emergencies. Leave nothing to chance: make sure you always have high-quality replacement electrodes on hand.
