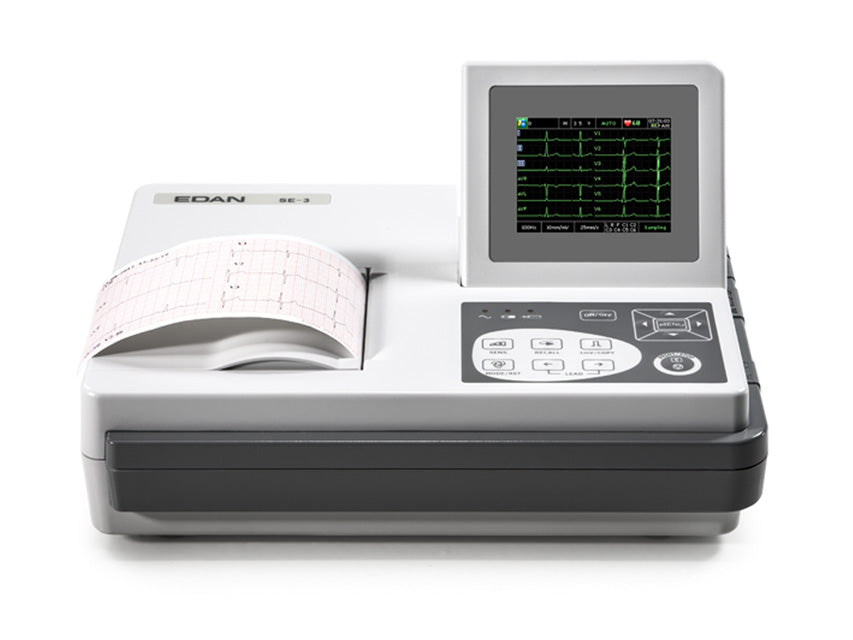

The EDAN SE-3 portable electrocardiograph is an advanced and versatile device, ideal for medical professionals who need a reliable and easy-to-use ECG. With its color display and numerous features, this 12-lead, 3-channel electrocardiograph is a complete solution for cardiological diagnosis.

Main features of the EDAN SE-3 portable ECG

The EDAN SE-3 portable ECG offers a range of advanced features that make it an indispensable tool for clinical practice:

• Adjustable LCD screen: Color display with clear and readable waveforms.


• Integrated thermal printer: High resolution for precise and detailed prints.


• Rechargeable lithium-ion battery: AC/DC power for over 6 hours of continuous operation.


• Digital filter: Prevents baseline wander and AC and EMG interference.


• Automatic/manual operation: Adaptable to the physician's needs.


• Lead-off detection and alarm: Increased safety during data acquisition.

Advanced features of the SE-3 model

The 3-channel color SE-3 model has additional advanced features for a complete cardiological diagnosis:

• Analyzed interpretation with CSE/AHA/MIT database: Accurate and reliable analysis of results.


• Simultaneous 12-lead acquisition: Automatic measurement and analysis of ECG parameters.


• Work modes: Automatic, Manual, and Rhythm for greater flexibility.


• Barcode scanner: Facilitates patient data entry.


• PC LAN/RS232/USB connection: For easy integration with other devices and computer systems.


• 12-lead printing: Possibility of using an external printer on common A4 paper.

ECG data management software

The PC ECG data viewing and management software offers numerous features:

• Compatibility: Works with Windows XP, 7, Vista (32-bit, 64-bit).


• Multi-format reports: Supports XML, SCP, DICOM, PDF, JPG, BMP, TIFF, PNG formats.


• Bi-directional communication: Allows complete interaction with the ECG device.

Technical specifications

• Leads: 12 standard leads.


• Acquisition mode: 12 leads simultaneously.


• Accuracy: 2.5, 5, 10, 20 mm/mV.


• Input impedance: > 50 MOhm.


• Filters: EMG 25/35/45 Hz off, DFT 0.05/0.15/0.25/0.32/0.5/0.67 Hz, Low Pass 150/100/75 Hz, AC on/off.


• Recording mode: Automatic, Manual, Rhythm, USBPRT.


• Rhythm leads: All leads.


• Safety standards: IEC I / CF.

Power supply and memory

• Power supply: AC 100 V - 115 V / 220 V - 240 V, 50/60 Hz; Rechargeable lithium-ion battery 14.8 V.


• Battery life: More than 6 hours of continuous operation with battery power.


• Data memory: Capacity to store up to 500 ECGs.

Dimensions and weight

• Dimensions: 300 x 260 x 75 mm.


• Weight: 2.5 kg without batteries.


• Screen: 320 x 240 pixels color LCD.


• Selectable display language: GB, IT, FR, ES, RU, PL, CZ, RO, DE, TR, HR, UA.


• Interface: Ethernet, RS232, USB.


• Barcode scanner: Yes.


• Report format: PDF, Dicom, SCP, XML.

Standard equipment

• Patient cable


• 1 roll of paper


• 1 bottle of gel


• Rechargeable battery


• Manual: GB, IT. On request: FR, ES, PT, TR, DE, RU.


• 4 limb electrodes


• 6 precordial electrodes
