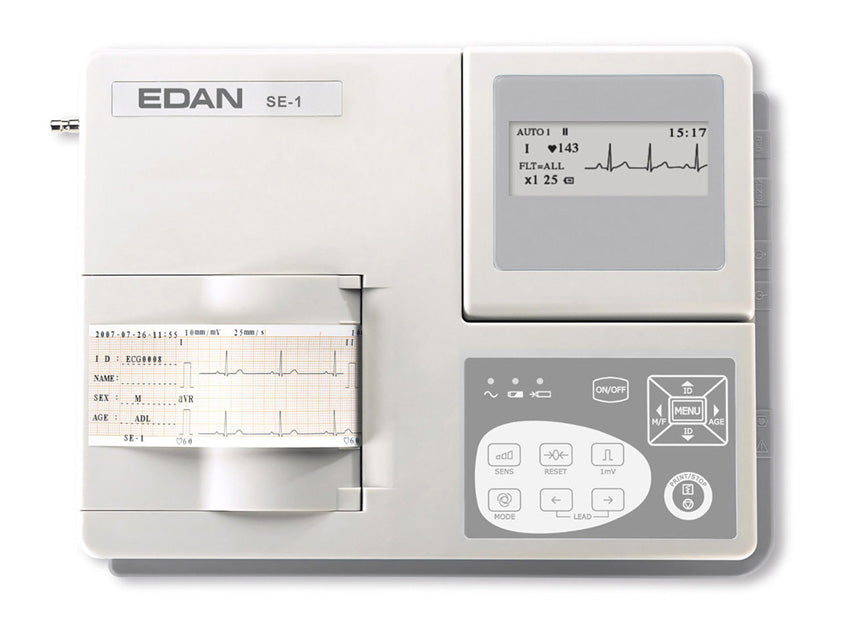

The EDAN portable ECG is a high-quality 12-lead, 1-channel electrocardiograph, ideal for precise and reliable cardiac monitoring. This compact and lightweight device features a rechargeable lithium-ion battery, ensuring continuous operation for up to 6.5 hours. Perfect for use in clinics, doctor's offices, and hospitals, the EDAN ECG offers a range of advanced features for accurate and timely diagnosis.

Key Features of the EDAN Portable ECG

Reclinable LCD Display

The reclinable LCD screen provides a clear display of waveforms, facilitating the reading and interpretation of ECG data.

Integrated Thermal Printer

The built-in high-resolution thermal printer allows for detailed, high-quality reports directly from the device.

Rechargeable Battery

The internal lithium battery ensures continuous and reliable power, with the ability to operate in both AC and DC modes.

Advanced Features

Digital Filter

The integrated digital filter prevents baseline wander and reduces AC and EMG interference, improving measurement accuracy.

Operating Modes

The EDAN ECG offers both automatic and manual operation, allowing healthcare professionals to choose the most suitable option for their needs.

Lead-Off Detection and Alarm

The device is equipped with a lead-off detection and alarm system, ensuring greater safety during recordings.

Data Viewing and Management Software

The PC software compatible with Windows XP, 7, Vista (32-bit, 64-bit) allows for advanced ECG data management. It supports various report formats including XML, SCP, DICOM, PDF, JPG, BMP, TIFF, and PNG, and offers bidirectional communication with the ECG device.

Technical Specifications

• Leads: 12 standard leads


• Acquisition Mode: Individual


• Sensitivity: 2.5, 5, 10, 20 mm/mV


• Input Impedance: > 50 MOhm


• Filters:



  • EMG Filter: 35 Hz (-3 dB)


  • AC / DFT Filter: 50 Hz / 60 Hz (-20 dB)






• Recording Mode: Automatic / Manual


• Rhythm Leads: all leads


• Safety Standards: IEC I / CF


• Power Supply:



  • AC: 100 V - 115 V / 220 V - 240 V, 50/60 Hz


  • Rechargeable Lithium-ion Battery: 14.8 V voltage


  • Duration: more than 6.5 hours of continuous operation on battery power






• Thermal Paper: 50 mm x 30 m


• Print Speed: 25, 50 mm/s (± 3%)


• Dimensions: 300 x 260 x 75 mm


• Weight: 2.3 kg with battery included


• Display: 192 x 64 pixel LCD


• Selectable Display Language: GB, IT, FR, ES, PL, RU, TR, UA


• Interface: RS232

Standard Equipment

• Patient cable


• 1 roll of paper


• 1 bottle of gel


• Rechargeable battery


• Manual: GB, IT. On request: FR, ES, PT, TR


• 4 limb electrodes


• 6 precordial electrodes
