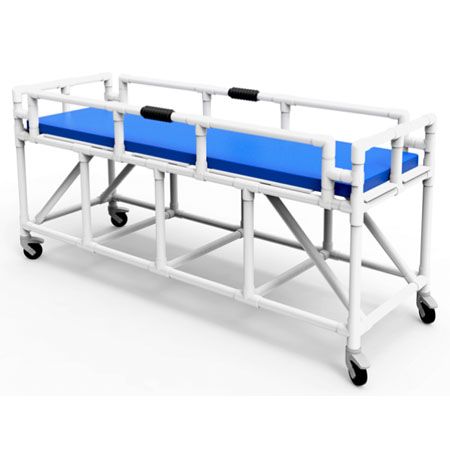

PVC AMAGNETIC STRETCHER WITH WHEELS - COMPLETE WITH MATTRESS (BRM001)


The PVC amagnetic stretcher with wheels is the ideal solution for the safe and comfortable transfer of patients with mobility difficulties within controlled access areas of MRI environments. Made entirely with non-metallic plastic materials, this stretcher is designed to ensure maximum safety and compliance with current regulations, particularly the harmonized technical standard CEI EN 62570:2016-01, which certifies its MR SAFE marking.

Robust and Durable Frame

The stretcher frame is constructed from PVC added with titanium dioxide, which not only improves aesthetics (glossy white and UV resistant) but also increases mechanical strength and provides antibacterial properties. The main features of the frame include:

• Solid Structure: Parts are joined by chemical welding, ensuring a rigid and durable unit.


• Rust and Scratch Resistance: Not subject to deterioration over time.


• Easy Maintenance: Surface easy to clean and disinfect.

Comfortable and Safe Mattress

The mattress is made of polyurethane foam and covered with a fabric of polyester coated with polyurethane, which is water-repellent and fireproof class 1. Its features include:

• Sanitized Treatment: Ensures antibacterial, antifungal, and anti-mold properties.


• Optimal Thickness: 50 mm for superior comfort during transport.

Practical and Safe Side Rails

The folding side rails are designed to be easily attached and detached, allowing the operator to maintain control over the patient without changing position. This system offers:

• Ease of Use: Simple and intuitive movement.


• Safety: Greater protection for the patient during transfer.

Technical Specifications

The stretcher has the following technical characteristics:

• Dimensions: 2000 mm x 700 mm x 1010 mm


• Weight: 38 kg


• Height to the Plane: 769 mm


• Usable Width at Shoulders: 60.5 cm


• Safe Working Load (SWL): 150 kg


• Suitable for Patients with Max Height: 190 cm

Main Materials

The stretcher is made with high-quality materials, including:

• Structure: PVC


• Plane: PP


• Mattress Padding: Open-cell polyurethane foam


• Mattress Cover: Polyester 50% - polyurethane 50%


• Wheels: Polypropylene, thermoplastic rubber, and other plastic materials


• Side Rail Lock Mechanism Protection: Silicone


• Packaging: Cardboard (box 2000x750x1040 mm)

Conclusion

Choosing the PVC amagnetic stretcher with wheels (BRM001) means opting for a high-quality product designed to ensure maximum safety and comfort during patient transfer. With its robust structure, comfortable mattress, and practical side rails, it represents an excellent choice for medical and hospital environments.
