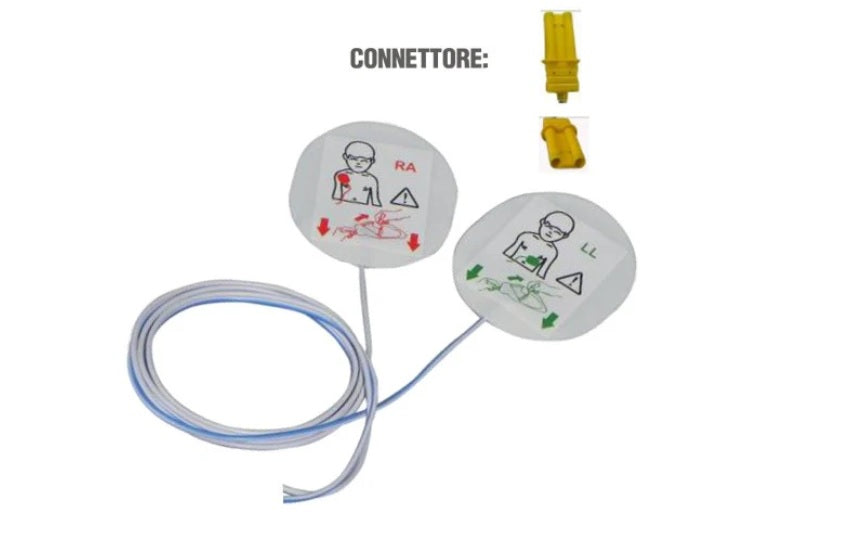

SINGLE-USE MULTIFUNCTION DEFIBRILLATOR PADS – PEDIATRIC

General Information

Single-use multifunction pads designed for defibrillation, synchronized cardioversion, transcutaneous cardiac pacing, and ECG monitoring.

Equipped with direct connection to compatible cables and defibrillators, they ensure low impedance and reduced stimulation threshold, guaranteeing excellent patient adaptability.

Main Features

•
  Model: pediatric



•
  Use: patients weighing > 25 kg



•
  Support material: medical foam (1 mm thickness)



•
  Total pad surface area: 148 cm² (each)



•
  Conductive surface area: 81 cm² (each)



•
  Conductive material: tin foil



•
  Gel: low-impedance electroconductive adhesive



•
  Adhesive ring width: 1.3 cm



•
  Cable length: 120 cm



•
  Connector: safety antishock


Technical Performance

•
  AC small signal impedance: < 100 ohm



•
  AC large signal impedance: < 1.5 ohm



•
  Internal noise and offset instability: < 20 µV



•
  Residual voltage post-defibrillation (4 sec): < 300 mV



•
  Leakage current (7.5 kV): < 250 µA



•
  DC offset voltage: < 10 mV


Defibrillator Compatibility

Compatible with the following Schiller models: FRED EASY, FRED EASY LIFE, DEFIGARD DG4000, DEFIGARD DG5000, DEFIGARD DG6002.

Compliance

•
  Directive 93/42/EEC – Medical Device Class I



•
  Compliant with standards:





  •
    ANSI/AAMI DF-80



  •
    IEC/CEI/EN 60601-2-4



  •
    IEC/CEI/EN 60601-1






Packaging

•
  1 pair in a heat-sealed bag (polyethylene + aluminum)


Storage and Preservation

•
  Temperature: +5°C / +30°C



•
  Store in a dry place


Expiration

•
  18 months from the production date (indicated on the packaging)


Product Data

•
  Manufacturer code: F7956P



•
  Brand: FIAB



•
  EAN: 8033049643893
