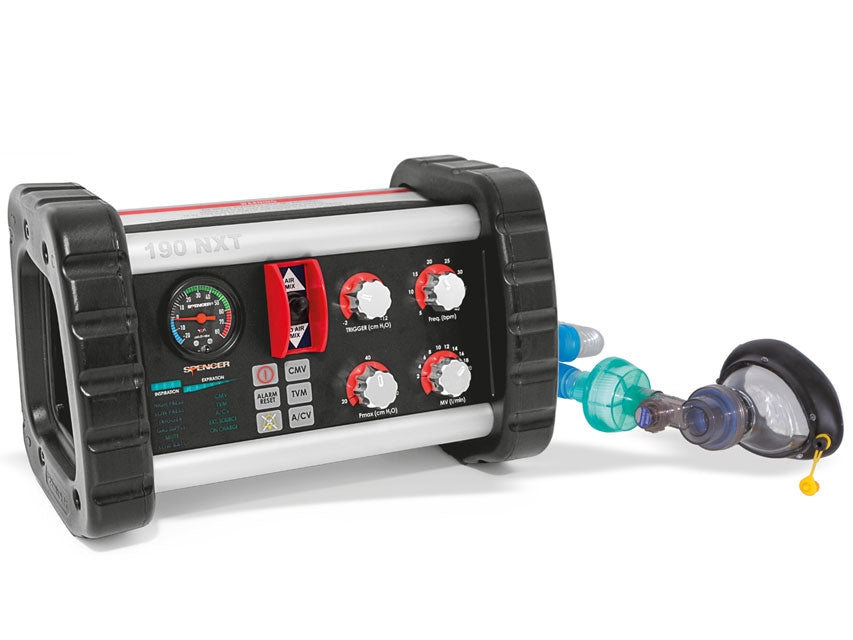

The Spencer 190 NXT Electronic Ventilator represents an advanced solution for non-invasive ventilation of adults and pediatric patients. Designed with cutting-edge technologies, this device ensures high performance and unparalleled ease of use, making it ideal for use in hospitals, clinics, and emergency situations.

Main Features

• Advanced Protection: Selection lever to prevent accidental activation of the AIR mix.


• Easy Identification: Color-coded manometer for quick identification of the pressure range.


• Ergonomic Design: Inlet and outlet ports strategically positioned to facilitate connection and disconnection.

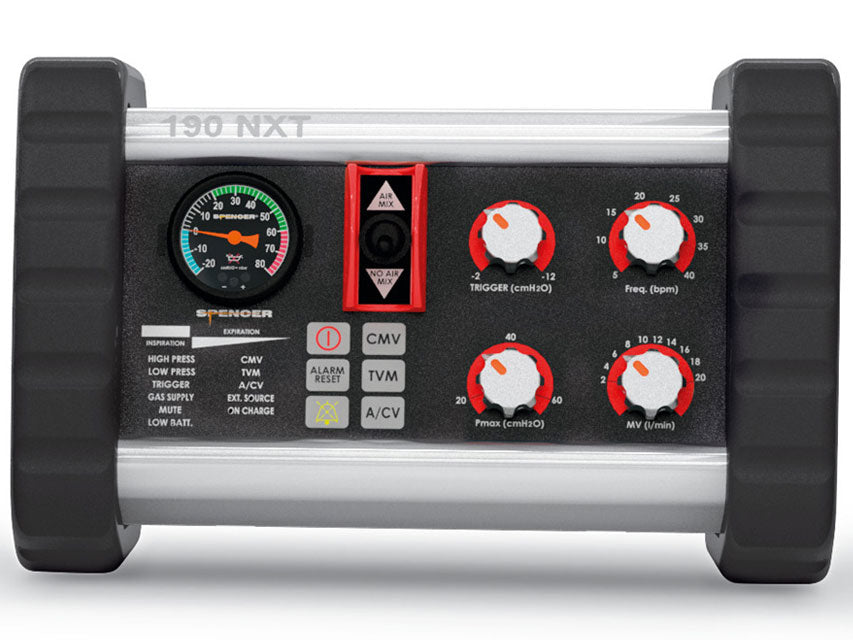

• Intuitive Control: Control knobs on a high-contrast background for better visibility of the set values.


• Compactness and Lightness: Aluminum frame offering low weight and a robust structure.


• Ease of Use: Adjustment knobs designed for setting parameters in different operating conditions.

Ventilation Modes

The Spencer 190 NXT Ventilator offers three ventilation modes to suit patients' specific needs:

• CMV (Controlled Ventilation): Mandatory inflation started according to the set parameters.


• TVM (Timed Ventilation): Inflation started only if triggered by the patient, based on the established parameters.


• AC/AV (Assisted Ventilation): Inflation at set intervals unless triggered by a patient event.

Alarms and Monitoring

The device is equipped with an alarm system to ensure constant monitoring and effective ventilation management:

• High pressure


• Low pressure


• Apnea


• Pneumatic supply


• Low battery

Technical Specifications

Discover the technical specifications of the Spencer 190 NXT Electronic Ventilator:

• Operation: Electronic


• Frequency: from 5 to 40 BPM


• Flow: from 2 to 20 l/min


• I/E Ratio: 1:2


• Oxygen concentration: from 60% to 100% (patented system)


• Trigger: from -12 to -2 bar


• Overpressure valve: 20-60 cm H2O - adjustable


• Battery life: about 3 hours


• Manometer scale: from -20 to +80 bar


• IP protection: IP24


• Non-rebreathing valve: 60 cm H2O


• Pneumatic supply: from 280 to 600 kPa


• Pneumatic connection: UNI


• External power supply: 12 V DC (AC/DC adapter 100-240 V, 50/60 Hz available on request)


• Internal power supply: rechargeable Ni-Mh battery


• Dimensions: 330x177x210 mm


• Weight: 3.6 kg


• Structure: Aluminum, steel, brass, PE

Made in Italy

The Spencer 190 NXT Electronic Ventilator is a high-quality product, entirely designed and manufactured in Italy, ensuring standards of excellence and reliability.

Discover how the Spencer 190 NXT Electronic Ventilator can improve your patients' care and make non-invasive ventilation a safer and more effective process.
